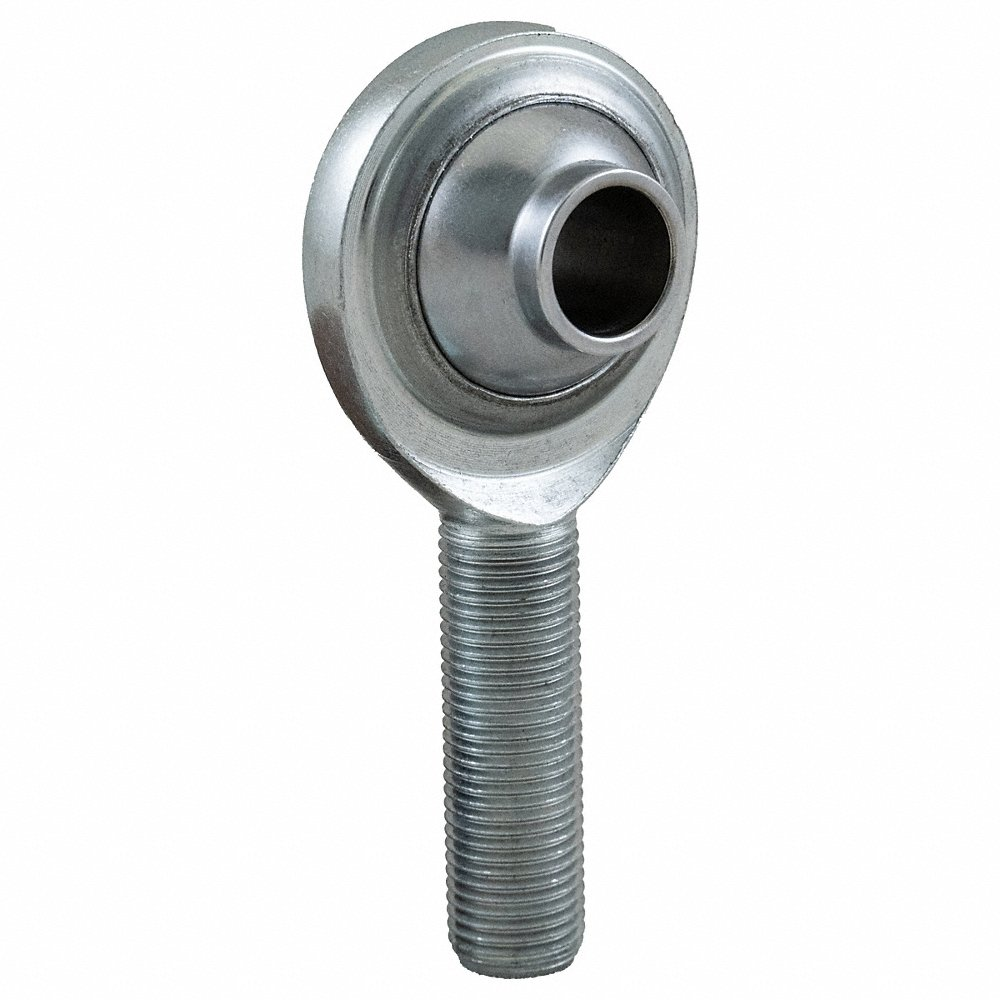

QA1 PCYMR10T High Misalignment Rod End, Carbon Steel
Item: DA6BAZModel: PCYMR10TCross Ref: 806LZ8
7 In Stock
Ships within 2 days via
13.00% off
€55.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Application | Automotive |
| Ball Material Grade | Grade 52100 |
| Ball Stud Center Length | 2 7/8" |
| Ball Stud Material | Alloy Steel |
| Bore Dia. | 5/8" |
| Bore Dia. Tolerance | -0.005" to 0.0015" |
| Greasable | No |
| Housing Finish | Zinc Plated |
| Housing Material | Chromoly Steel |
| Inner Ring Width | 1 3/8" |
| Max. Ball Swivel | 64° |
| Max. Temp. | 275°F |
| Min. Temp. | -65°F |
| Overall Length | 3 3/4" |
| Race Material | PTFE |
| Rod End Type | Spherical Rod End |
| Self Lubricating Bearing | Yes |
| Shank Thread Gender | Male |
| Shank Thread Size | 5/8"-18 |
| Static Radial Load Capacity | 21219 lbf. |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 9.91 |
| Ship width (cm) | 4.83 |
| Country of Origin | CN |
