PULS DC CS5.241 Power Supply, 100 To 120 V AC/200 To 240 V AC, Single, 24 To 28V DC, 120W, 5.0, Din Rail
Item: CT8HHNModel: CS5.241Cross Ref: 45ET80
7 In Stock
Ships within 2 days via
10.00% off
€319.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Supply |
| Case Material | Metal Case |
| Current - Inrush | 3A |
| Current - Output | 4.3A |
| Current - Peak | 10A |
| Depth | 117 mm |
| Features | High Efficiency And Long Lifetime |
| Frequency | 50-60 Hz |
| Height | 124 mm |
| Hold Up Time | 80 ms |
| Hold Up Time - Minimum | 78 ms |
| Housing Material | Plastic |
| Input Frequency - Maximuim | 60 Hz |
| Input Frequency - Minimum | 50 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-120V AC |
| Ip Rating | IP20 |
| Manufacturer Warranty | 3 yrs. |
| Maximum Efficiency @ 230v Ac | 90.2% |
| Maximum Startup Time | 720 ms |
| Mean Time Between Failures (mtbf) | 869000 hrs. |
| Mfr. Series | Dimension Series |
| Mounting | Din Rail |
| Nominal Output Voltage | 24/28V DC |
| Operating Temp. Range | -25°C to +70°C |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Amps | 5A |
| Output Power - Rated | 120 W |
| Output Voltage | 24-28V DC |
| Output Voltage - Maximum | 28V DC |
| Output Voltage - Minimum | 24V DC |
| Overall Depth | 4.61" |
| Overall Height | 4.88" |
| Overall Width | 1.26" |
| Peak Amps | 6A |
| Phase | Single |
| Power Rating | 120 W |
| Power Supply Style | Switching |
| Series | C-LINE Series |
| Special Features | Minimal Inrush Current Surge |
| Status Indicator | LED |
| Style | Switching |
| Width | 32 mm |
| Wire Size - Maximum | 10 AWG |
| Wire Size - Minimum | 20 AWG |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 12.4 |
| Ship length (cm) | 11.7 |
| Ship width (cm) | 3.2 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Input Voltage | Operating Temp. Range | Hold Up Time | Status Indicator | Case Material | Peak Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ML100.102 | Single | 100-120V AC/290V DC | -10°C to +70°C | 41 ms | Green LED | Plastic Case | - | Din Rail | €426.09 | |
 |

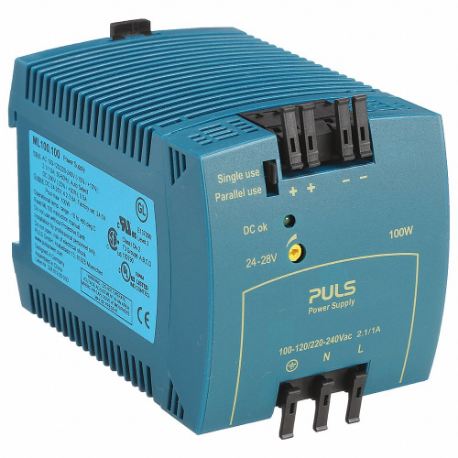

ML100.100 | Single | 100-120V AC/290V DC | -10°C to +70°C | 38 ms | Green LED | Plastic Case | - | Din Rail | €313.62 | |
 |
ML95.100 | Single | 100-120V AC/290V DC | -10°C to +70°C | 41 ms | Green LED | Plastic Case | - | Din Rail | €396.00 | |
 |
CS10.481 | Single | 100-120V AC | -25°C to +70°C | 46 ms | Green LED | Metal Case | 6A | Din Rail | €563.70 | |
 |
ML30.102 | Single | 100-240V AC/110V DC | -10°C to +70°C | 46 ms | Green LED | Plastic Case | - | Din Rail | €266.51 | |
 |
ML15.121 | Single | 100-240V AC/110V DC | -10°C to +70°C | 46 ms | Green LED | Plastic Case | - | Din Rail | €133.24 | |
 |
QS10.121 | Single | 100-240V AC/110V DC | -25°C to +70°C | 32 ms | DC OK Signal | Metal Case | 22.5A | Din Rail | €672.79 |
