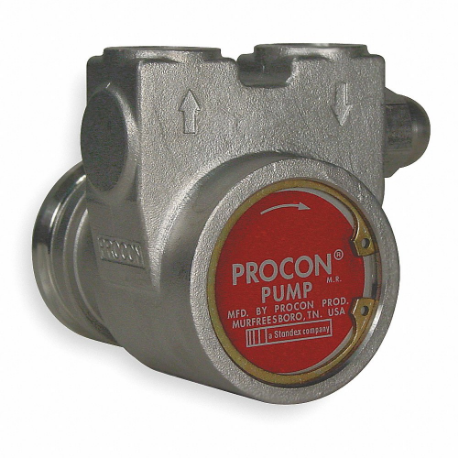

PROCON 113A025F31CA 250 Rotary Vane Pump, 3/8 Inch Inlet/Outlet Nptf, 35 Gph Max. Flow, Stainless Steel
Item: CT7ZZUModel: 113A025F31CA 250Cross Ref: 5JKD4
7 In Stock
Ships within 2 days via
5.00% off
€169.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Stainless Steel |
| Built-in | Relief Valve |
| By Pass | Yes |
| Bypass Included | Yes |
| Compatible Motor Frame | 48Y NEMA |
| Discharge Connection Size | 3/8" |
| External Relief | Not Required |
| Filter | Not Included |
| Filter Combined | No |
| Flow Rate @ 100 Psi | 25 GPH |
| Flow Rate @ 150 Psi | 23 GPH |
| Flow Rate @ 200 Psi | 21 GPH |
| Flow Rate @ 250 Psi | 19 GPH |
| Flow Rate @ 50 Psi | 27 GPH |
| For Media Type | No |
| Gph | 25 GPH |
| Gph Of Water @ 100 Psi | 25 GPH |
| Gph Of Water @ 150 Psi | 23 GPH |
| Gph Of Water @ 200 Psi | 21 GPH |
| Gph Of Water @ 250 Psi | 19 GPH |
| Gph Of Water @ 50 Psi | 27 GPH |
| Hp @ 100 Psi | 1/4 hp |
| Hp @ 150 Psi | 1/4 hp |
| Hp @ 200 Psi | 1/4 hp |
| Hp @ 250 Psi | 1/3 hp |
| Hp @ 50 Psi | 1/4 hp |
| Included | Relief Valve |
| Included Filter | No |
| Inlet Size | 3/8" |
| Inlet Type | NPTF |
| Inlet/outlet Nptf | 3/8" |
| Max. Feet Of Head | 6 ft. Of Head |
| Max. Filter Rating | Not Applicable |
| Max. Flow Rate | 25 GPH , 35 GPH |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 158°F , 160°F |
| Max. Pressure | 250 psi |
| Max. Relief Pressure | 250 psi |
| Max. Viscosity | 100 cPS |
| Media Intake Connection Size | 3/8" |
| Min. Flow Rate | 19 GPH |
| Min. Operating Temp. | -4°F |
| Mounting | Carbonator Mount |
| Mounting Type | Carbonator Clamp |
| Nsf 169 Listed | Yes |
| Operating Temp. | -4°F to +160°F |
| Outlet Size | 3/8" |
| Outlet Type | NPTF |
| Overall Height | 2.9" |
| Overall Length | 3 1/5" |
| Overall Width | 3.9" |
| Port Connection Size | 3/8" |
| Port Connection Type | NPT |
| Relief Valve | Yes |
| Relief Valve Psi Setting | 200 psi |
| Seal Material | Carbon, Ceramic |
| Shaft | 1/2" Stainless Steel |
| Shaft Combined | 1/2" 303 Stainless Steel |
| Shaft Grade | Grade 303 |
| Shaft Material | Stainless Steel |
| Shaft Outside Dia. | 1/2" |
| Vane Material | Carbon |
Shipping Info:
| Ship weight (kg) | 1 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 8.13 |
| Ship width (cm) | 9.91 |
| Country of Origin | MX |
Product Variants
| Model | Port Connection Size | Max. Flow Rate | Flow Rate @ 150 Psi | Flow Rate @ 200 Psi | Flow Rate @ 50 Psi | Flow Rate @ 100 Psi | Flow Rate @ 250 Psi | Min. Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 115B190F31BA 250 | 1/2" | 210 GPH | 186 GPH | 182 GPH | 193 GPH | 190 GPH | 178 GPH | 178 GPH | €332.67 | |
| 115B240F31BA 250 | 1/2" | 260 GPH | 236 GPH | 232 GPH | 243 GPH | 240 GPH | 228 GPH | 228 GPH | €259.93 | |
| 103A100F31RA 250 | 3/8" | 100 GPH | 98 GPH | 96 GPH | 102 GPH | 100 GPH | 94 GPH | 94 GPH | €178.89 | |
| 113A100F31BA 250 | 3/8" | 100 GPH | 98 GPH | 96 GPH | 102 GPH | 100 GPH | 94 GPH | 94 GPH | €182.40 | |
| 113A140F31BA 250 | 3/8" | 140 GPH | 139 GPH | 137 GPH | 143 GPH | 141 GPH | 94 GPH | 135 GPH | €184.10 | |
| 103A140F31RA 250 | 3/8" | 140 GPH | 139 GPH | 137 GPH | 143 GPH | 141 GPH | 135 GPH | 135 GPH | €178.89 | |
| 113A035F31CA 250 | 3/8" | 35 GPH | 33 GPH | 31 GPH | 37 GPH | 35 GPH | 29 GPH | 29 GPH | €190.84 |
