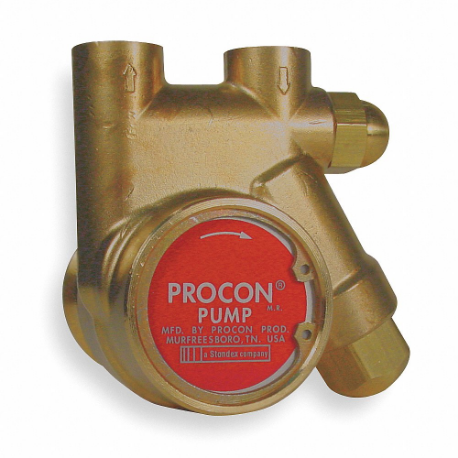

PROCON 111A025F11CA 250 Rotary Vane Pump, 3/8 Inch Inlet/Outlet Nptf, 25 Gph Max. Flow, Brass, 25 Gph Gph
Item: CT7ZZRModel: 111A025F11CA 250Cross Ref: 6XE97
7 In Stock
Ships within 2 days via
10.00% off
€129.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Brass |
| Built-in | Relief Valve |
| By-pass | Yes |
| Bypass Included | Yes |
| Compatible Motor Frame | 48Y NEMA |
| Discharge Connection Size | 3/8" |
| External Relief | Not Required |
| Filter | 120 µm |
| Filter Combined | Yes 120 µm |
| Filter Rating - Maximum | 120 µm |
| Filter Strainer | 100 Mesh |
| Flow Rate - Maximum | 25 GPH |
| Flow Rate - Minimum | 19 GPH |
| Flow Rate @ 100 Psi | 25 GPH |
| Flow Rate @ 150 Psi | 23 GPH |
| Flow Rate @ 200 Psi | 21 GPH |
| Flow Rate @ 250 Psi | 19 GPH |
| Flow Rate @ 50 Psi | 27 GPH |
| For Media Type | No |
| Gph | 25 GPH |
| Gph Of Water @ 100 Psi | 25 GPH |
| Gph Of Water @ 150 Psi | 23 GPH |
| Gph Of Water @ 200 Psi | 21 GPH |
| Gph Of Water @ 250 Psi | 19 GPH |
| Gph Of Water @ 50 Psi | 27 GPH |
| Hp @ 100 Psi | 1/4 hp |
| Hp @ 150 Psi | 1/4 hp |
| Hp @ 200 Psi | 1/4 hp |
| Hp @ 250 Psi | 1/3 hp |
| Hp @ 50 Psi | 1/4 hp |
| Includes | Relief Valve |
| Includes Filter | Yes |
| Inlet Size | 3/8" |
| Inlet Type | NPTF |
| Inlet/outlet Nptf | 3/8" |
| Max. Feet Of Head | 6 ft. Of Head |
| Max. Flow (gph) | 25 GPH |
| Max. Flow Rate | 25 GPH |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 158°F |
| Max. Operating Temperature | 160°F |
| Max. Pressure | 250 psi |
| Max. Relief Pressure | 250 psi |
| Media Intake Connection Size | 3/8" |
| Min. Flow Rate (gph) | 19 GPH |
| Min. Operating Temperature | -4°F |
| Mounting | Carbonator Mount |
| Mounting Type | Carbonator Clamp |
| Nsf 169 Listed | Yes |
| Operating Temp. Range | -4°F to +160°F |
| Outlet Size | 3/8" |
| Outlet Type | NPTF |
| Overall Height | 3 2/5" |
| Overall Length | 3.9" |
| Overall Width | 3 3/5" |
| Port Connection Size | 3/8" |
| Port Connection Type | NPT |
| Relief Pressure Max. | 250 psi |
| Relief Valve | Yes |
| Relief Valve Psi Setting | 200 psi |
| Seal Material | Carbon, Ceramic |
| Shaft | 1/2" Stainless Steel |
| Shaft Combined | 1/2" 303 Stainless Steel |
| Shaft Grade | Grade 303 |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 1/2" |
| Vane Material | Carbon |
| Viscosity - Maximum | 100 cPS |
Shipping Info:
| Ship weight (kg) | 1.15 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 9.91 |
| Ship width (cm) | 9.14 |
| Country of Origin | MX |
Product Variants
| Model | Max. Flow Rate | Flow Rate @ 150 Psi | Flow Rate @ 200 Psi | Flow Rate @ 50 Psi | Flow Rate @ 100 Psi | Flow Rate @ 250 Psi | Hp @ 150 Psi | Hp @ 250 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 141A025F11CA 250 | 25 GPH | 23 GPH | 21 GPH | 27 GPH | 25 GPH | 19 GPH | 1/4 hp | 1/3 hp | €152.27 | |
| 141A035F11CA 250 | 35 GPH | 33 GPH | 31 GPH | 37 GPH | 35 GPH | 29 GPH | 1/4 hp | 1/3 hp | €152.27 | |
| 111A060F11CA 250 | 60 GPH | 58 GPH | 56 GPH | 62 GPH | 60 GPH | 54 GPH | 1/4 hp | 1/2 hp | €143.80 | |
| 141A060F11CA 250 | 60 GPH | 58 GPH | 56 GPH | 62 GPH | 60 GPH | 54 GPH | 1/4 hp | 1/2 hp | €152.27 | |
| 141A100F11AA 250 | 100 GPH | 98 GPH | 96 GPH | 102 GPH | 100 GPH | 94 GPH | 1/3 hp | 1/2 hp | €152.27 |
