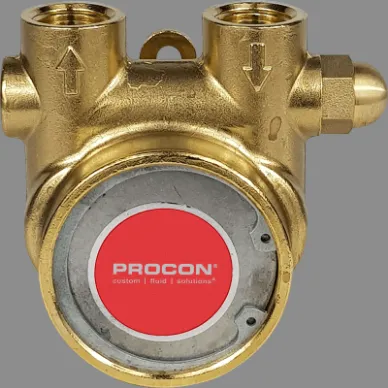

PROCON 104E240F11BC Rotary Vane Pump, Brass, 240 GPH, EPDM/Nitrile, Standard-Non External Adjust
Item: CT7ZZJModel: 104E240F11BCCross Ref: 336X26
7 In Stock
Ships within 2 days via
10.00% off
€247.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Brass |
| Compatible Motor Frame | 56C NEMA |
| Filter | Not Included |
| Filter Combined | No |
| Filter Included | No |
| Flow Rate @ 100 Psi | 240 GPH |
| Flow Rate @ 150 Psi | 236 GPH |
| Flow Rate @ 200 Psi | 232 GPH |
| Flow Rate @ 250 Psi | 228 GPH |
| Flow Rate @ 50 Psi | 243 GPH |
| For Media Type | No |
| Frame | 56C |
| Includes | Relief Valve |
| Includes Filter | No |
| Max. Feet Of Head | 6 ft. Of Head |
| Max. Flow Rate | 240 GPH |
| Max. Ft. | 6 ft. |
| Max. Operating Pressure | 60 psi |
| Max. Operating Temp. | 160°F |
| Max. Viscosity | 100 cPS |
| Media Type | No |
| Min. Operating Temp. | -4°F |
| Mounting | Flange Mount |
| Mounting Type | 3 Bolt Flange |
| Nsf 169 Listed | Yes |
| Overall Height | 3 4/5" |
| Overall Length | 4.1" |
| Overall Width | 3.3" |
| Port Connection Size | 1/2" |
| Port Connection Type | NPT |
| Product Datasheet | procon-104e240f11bc.pdf |
| Relief Valve | Yes |
| Seal Material | Carbon, Ceramic |
| Shaft | 1/2" Stainless Steel |
| Shaft Combined | 1/2" 303 Stainless Steel |
| Shaft Grade | Grade 303 |
| Shaft Material | Stainless Steel |
| Shaft Outside Dia. | 1/2" |
| Vane Material | Carbon |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 10.97 |
| Ship length (cm) | 9.73 |
| Ship width (cm) | 10.41 |
| Country of Origin | US |
