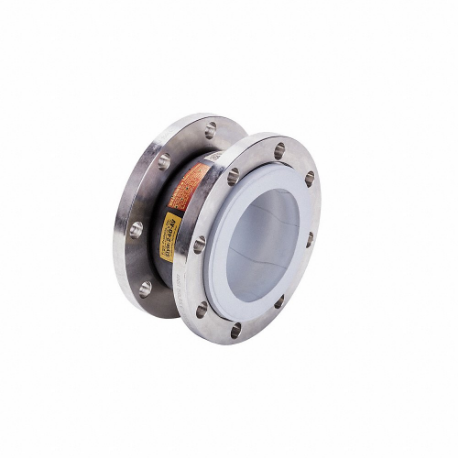

PROCO PRODUCTS 060X0540CJ Expansion Joint, 6 Inch Pipe Size
Get it by Wednesday, Feb 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,880.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Expansion Joint |
| Bolt Circle Dia. | 9 1/2" |
| Bolt Hole Size | 3/4" |
| Bolt Hole Threading | Unthreaded |
| Burst Pressure | 940 psi |
| Compression Distance | 1 1/16" |
| Connection Type | Flanged |
| Expansion Distance | 1 1/4" |
| Expansion Joint Type | Single Bulb |
| Features | Flange Rings |
| Flange Dia. | 11" |
| Flange Material | Steel |
| Flange Material Finish | Zinc Plated |
| Flange Material Grade | Not Applicable |
| For Fluid Type | Food Grade For Fluids And Solids Low Velocity |
| Joint Material | Neoprene |
| Joint Material Finish | Not Applicable |
| Joint Material Grade | Not Applicable |
| Max. Operating Pressure | 235 psi |
| Maximum Off-center Angle | 23° |
| Maximum Operating Pressure | 235 psi @ 170°F |
| Maximum Operating Temperature | 212°F |
| Maximum Vacuum Pressure | 8 in. hg @ 170°F |
| Minimum Operating Temperature | -20°F |
| Number Of Bolt Holes | 8 |
| Offset Distance | 1 3/16" |
| Outside Dia. | Not Applicable |
| Overall Length | 5" |
| Pipe Size | 6" |
| Reinforcement Material | Rubber Impregnated Nylon |
| Seal Material | Not Applicable |
| Travel | Not Applicable |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Pipe Size | Overall Length | Number Of Bolt Holes | Bolt Circle Dia. | Bolt Hole Size | Compression Distance | Offset Distance | Expansion Distance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
015X0631E | 1 1/2" | 6" | 4 | 3 7/8" | 1/2" | 1 13/32" | 19/32" | 45/64" | €1,124.65 | |
 |
015X0661RE | 1 1/2" | 6" | 4 | 3 7/8" | 1/2" | 1 1/2" | 3/4" | 5/8" | €1,050.73 | |
|
015X0661RP | 1 1/2" | 6" | 4 | 3 7/8" | 1/2" | 1 1/2" | 3/4" | 5/8" | €1,050.73 | |
 |
015X035445BD | 1 1/2" | 3 1/2" | 4 | 3 7/8" | 1/2" | 3/4" | 1/2" | 3/4" | €2,471.47 | |
 |
015X013442BD | 1 1/2" | 1.38" | 4 | 3 7/8" | 1/2" | 1/4" | 1/8" | 1/4" | €1,741.12 | |
 |
015X020443BD | 1 1/2" | 2" | 4 | 3 7/8" | 1/2" | 1/2" | 1/4" | 1/2" | €1,929.98 | |
 |
015X0540CJ | 1 1/2" | 5" | 4 | 3 7/8" | 1/2" | 1 1/16" | 1 3/16" | 1 1/4" | €2,176.55 |
