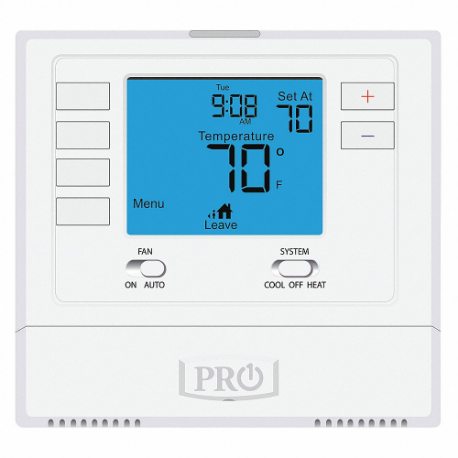

PRO1 IAQ T705 Low Voltage Thermostat, Electric Forced Air Furnaces/Gas Forced Air Furnaces/Millivolt

Item: CT7ZYYModel: T705Cross Ref: 45KE93

7 In Stock

Ships within 2 days via

~~€141.41~~

10.00% off

€127.27 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Low Voltage Thermostat
750mv Compatible	Yes
Application	Heat And Cool
Automatic Changeover	No
Backlit Screen	Yes
Backlit Screen Color	Blue
Batteries Included	Yes
Battery Backup	Yes
Battery Type	(2) AA Batteries
Changeover Type	Manual
Color	White
Compatible System Type	Electric Forced Air Furnaces, Gas Forced Air Furnaces, Millivolt
Control Type	Push Button
Dehumidification Control	No
Depth	1 7/64"
Differential Cool	0.2°F, 2°F
Differential Heat	0.2°F, 2°F
Differential Temp.	+0.2°F to +2°F
Differential Type	Adjustable
Digit Size	Easy Read
Display Color	Blue
Display Type	Backlit
Dual Transformer Compatible	Yes
Electrical Connection Type	Hardwired
Fan Settings	Auto On
Features	Large Display 1H/1C
Filter Change Reminder	Yes
Filter Indicator	Yes
Frequency	50/60 Hz
Housing Color	White
Humidification Control	No
Includes	Manual/Install Guide, Mounting Hardware
Includes Batteries	Yes
Includes Positive Off	Yes
Key Features	Room Temperature Calibration Adjustments
Key Pad Lockout	No
Low-battery Indicator	Yes
Max. Control Temp.	90°F
Max. Operating Temp.	105°F
Maximum Operating Humidity	90%
Millivolt Compatible	Yes
Min. Control Temp.	44°F
Min. Operating Temp.	32°F
Mounting Direction	Horizontal/Vertical
Mounting Location	Junction Box, Wall
Number Of Cooling Stages (conventional System)	1
Number Of Heating Stages (conventional System)	1
Overall Depth	1 1/8"
Overall Height	4 3/8"
Overall Width	4 11/16"
Programmable Fan	No
Programming Capability	5-1-1, 7 Days
Remote Sensing Capability	No
Screen Height	4"
Screen Width	4"
Shape	Square
Smart Connectivity	No Connectivity
Stages Conventional	1 H/1 C Conventional
Stages Cool	1
Stages Heating/cooling	1 H/1 C Conventional
System Settings	Cool-Heat-Off
Temp. Differential	0.2°F to 2°F
Temp. Sensitivity	-1°F to +1°F
Temperature Limiting	Yes
Temperature Readout	Yes
Temperature Scale	Celsius, Fahrenheit
Temperature Settings Per Day	1, 4
Temporary Program Override	Yes
Temporary Temperature Hold	Yes
Terminal Designations	B, C, G, O, Rc, Rh, W/E, Y
Thermostat Type	Low Voltage
Type	Low Voltage
Voltage	24V AC
Wifi Capability	No

Shipping Info:

Ship weight (kg)	0.32
Ship height (cm)	11.11
Ship length (cm)	2.86
Ship width (cm)	11.91
Country of Origin	MX

Product Variants

Model	Display Type	Terminal Designations	Dehumidification Control	Mounting Direction	Shape	Differential Temp.	Mounting Location	Temp. Sensitivity	Price
T805	Backlit	B, C, G, O, Rc, Rh, W, Y	No	Horizontal, Vertical	Square	+0.2°F to +2°F	Junction Box, Wall	-1°F to +1°F	€256.24
T605-2	Backlit	B, G, O, Rc, Rh, W, Y	No	Horizontal, Vertical	Square	+0.2°F to +2°F	Junction Box, Wall	-1°F to +1°F	€134.30
T855	Backlit	B, C, G, O, RC, RH, W/E, W2, Y, Y2	No	Horizontal/Vertical	Square	+0.2°F to +2°F	Junction Box, Wall	-1°F to +1°F	€272.12
T755	Backlit	B, C, G, O, RC, RH, W/E, W2, Y, Y2	No	Horizontal, Vertical	Square	+0.2°F to +2°F	Junction Box, Wall	-1°F to +1°F	€245.92
T755S	Backlit	B, C, G, O, RC, RH, S1, S2, W/E, W2, Y, Y2	No	Horizontal, Vertical	Square	+0.2°F to +2°F	Wall	-1°F to +1°F	€305.01
T855SH	Digital	B, C, D, G, H, O, RC, RH, S1, S2, W/E, W2, Y, Y2	Yes	Horizontal	Rectangle	+0.2°F to +2°F	Junction Box, Wall	-1°F to +1°F	€339.04
T625-2	Digital	B, C, G, O, R, W/E, W2, Y	No	Horizontal	Rectangle	+0.2°F to +2°F	Junction Box, Wall	-1°F to +1°F	€169.13
