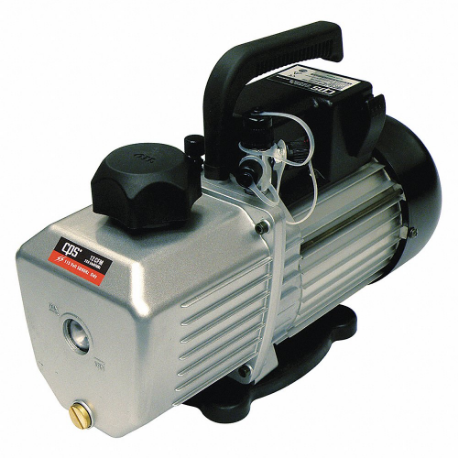

PRO SET VPS12DU Vacuum Pump, 12 cfm Displacement, 1 hp HP
Get it by Monday, Dec 22
10.00% off
€1,303.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vacuum Pump |
| A2l Compatibility | A2L Compatible |
| Body Material | Aluminum |
| Calibration Certificate Type | Not Certified |
| Cord Length | 10 ft. |
| Current | 10A |
| Displacement | 12 CFM |
| Drain Port Connection Thread Direction | Right Hand |
| Drive Type | Direct Drive |
| End Vacuum | 25 µm |
| Frequency | 60 Hz |
| Hp | 1 hp |
| Includes | Oil |
| Includes Gas Ballast | Yes |
| Includes Hoist Clip | Hoist Clip Not Included |
| Includes Isolation Valve | Isolation Valve Not Included |
| Includes Oil Mist Filter | Oil Mist Filter Included |
| Includes Sightglass | Sightglass Included |
| Includes Vacuum Gauge | Gauge Not Included |
| Inlet 1 Port Connection Gender | Male |
| Inlet 1 Port Connection Size | 1/4" |
| Inlet 1 Port Connection Thread Direction | Right Hand |
| Inlet 1 Port Connection Type | SAE |
| Inlet 2 Port Connection Gender | Male |
| Inlet 2 Port Connection Size | 3/8" |
| Inlet 2 Port Connection Thread Direction | Right Hand |
| Inlet 2 Port Connection Type | SAE |
| Inlet 3 Port Connection Gender | Male |
| Inlet 3 Port Connection Size | 1/2" |
| Inlet 3 Port Connection Type | SAE |
| Mobility | Handle |
| Motor Speed | 3440 RPM |
| Motor Type | Air-Cooled |
| Number Of Inlet Ports | 3 |
| Number Of Stages | 2 |
| Oil Capacity | 27 oz. |
| Operating Temperature - Maximum | 125°F |
| Operating Temperature - Minimum | 32°F |
| Overall Height | 10 3/5" |
| Overall Length | 14.9" |
| Overall Width | 5.7" |
| Plug Configuration | 5-15P |
| Power Source | Plug In |
| Product Type | Vacuum Pump |
| Reservoir Port Connection Thread Direction | Right Hand |
| Series | PRO-SET Series |
| Special Features | Ignition Proof |
| Ultimate Vacuum | 25 µm |
| Voltage | 120V AC |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 17.64 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 37.15 |
| Ship width (cm) | 15.24 |
| Country of Origin | CN |
Product Variants
| Product | Model | Number Of Stages | Displacement | Hp | Oil Capacity | End Vacuum | Amps Ac | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
VP12D | 2 | 12 CFM | 1 hp | 27 oz. | 25 µm | - | 120V AC | €1,250.19 | |
 |
VP4D | 2 | 4 CFM | 1/2 hp | 15.5 oz. | 10 µm | 4.5A | 120V AC | €590.11 | |
 |

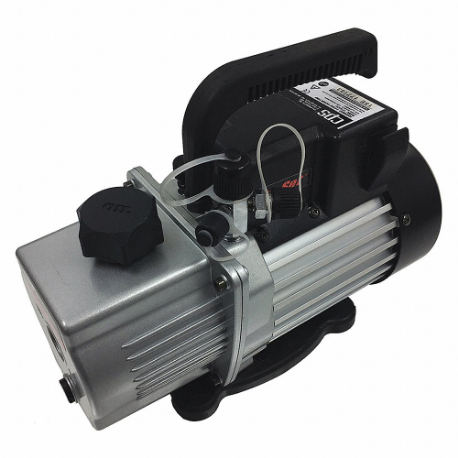

VPS6DU | 2 | 6 CFM | 1/2 hp | 16 oz. | 10 µm | 5A | 120V AC | €794.97 | |
 |

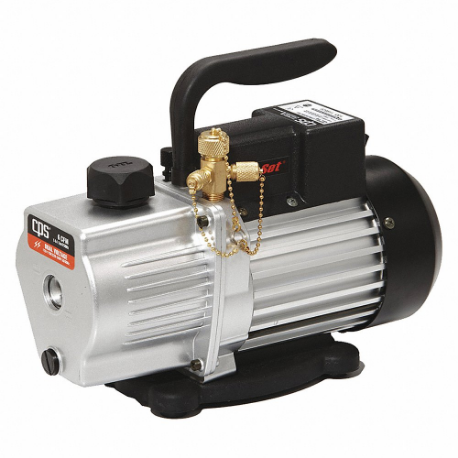

VP6D | 2 | 6 CFM | 1/2 hp | 14 oz. | 10 µm | 5A | 120V AC | €677.34 | |
 |

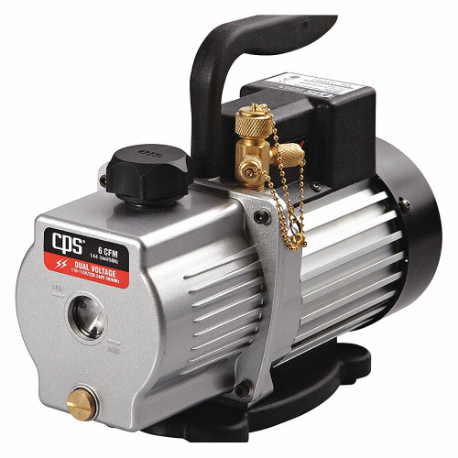

VP6S | 1 | 6 CFM | 1/2 hp | - | 50 µm | 5A | 120V AC | €556.46 | |
 |

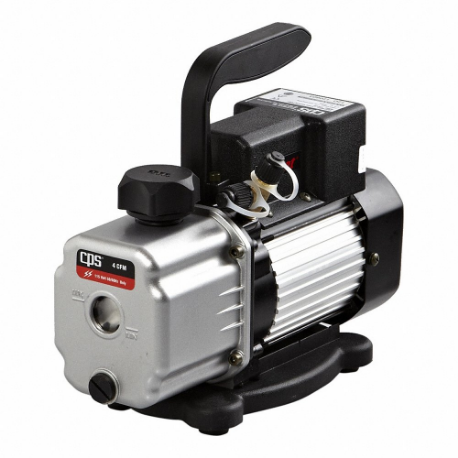

VPC4SU | 1 | 4 CFM | 1/5 hp | 10 oz. | 100 µm | - | 120V AC | €358.60 |
