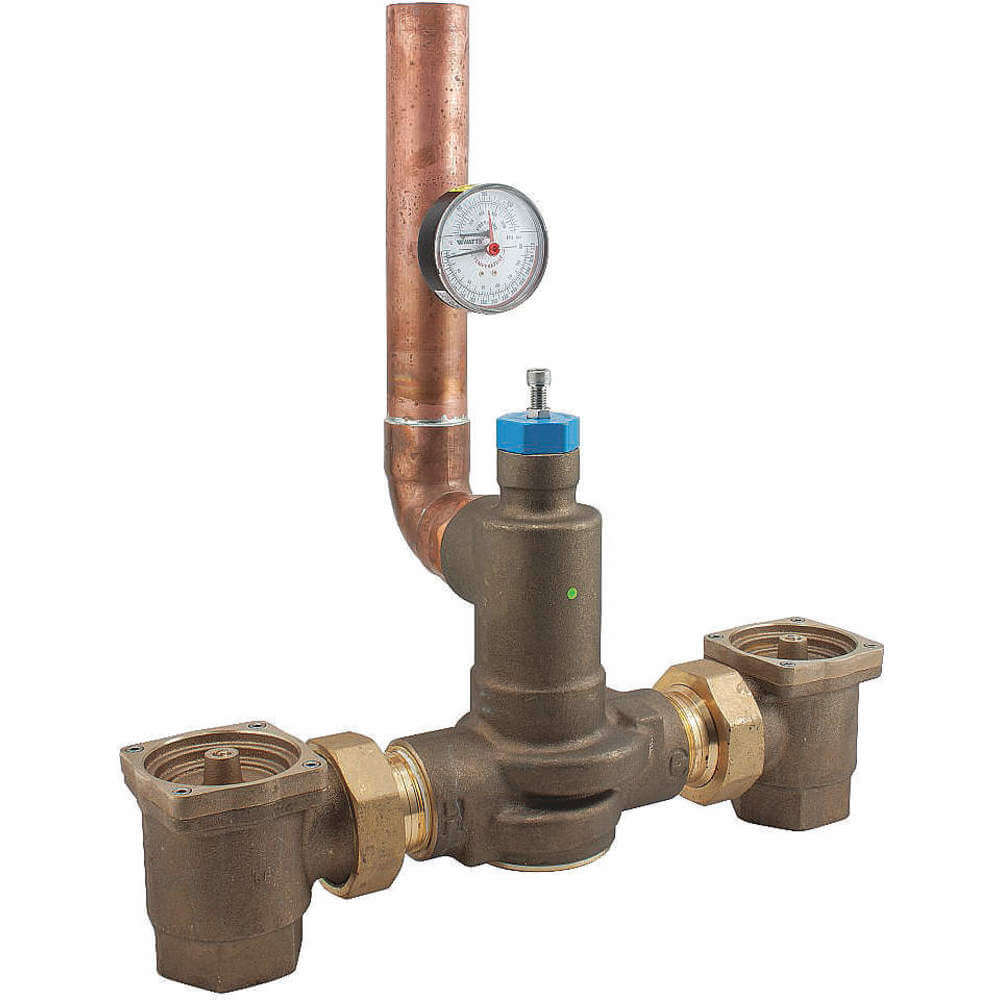

POWERS LFSH1435 W/TP GAUGE Mixing Valve Lead Free Brass
Get it by Thursday, Dec 18
10.00% off
€7,092.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mixing Valve |
| Body Material | Cast Bronze |
| Cold Inlet Temp. | +40°F to +80°F |
| Connection Type | NPT x NPT |
| Flow Coefficient | 30 |
| Hot Inlet Temp. | +120° to +180°F |
| Hot Inlet Temp. Range | 120°F to 180°F |
| Includes Temperature Gauge | Yes |
| Inlet (cold) Temperature Range | 40°F to 80°F |
| Inlet Connection Size | 2" |
| Inlet Size | 2" |
| Inlet Temperature (cold) | 40 Degrees to 80 Degrees F |
| Inlet Temperature (hot) | 120 Degrees to 180 Degrees F |
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 125 psi |
| Outlet Size | 2" |
| Outlet Temperature Range | 90°F to 160°F |
| Outlet Type | NPT |
| Overall Height | 12 1/4" |
| Overall Width | 19 1/4" |
| Temp. Range | +90°F to +160°F |
| Valve Type | Thermostatic |
Shipping Info:
| Ship weight (kg) | 20.57 |
| Ship height (cm) | 44.7 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 64.77 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Variants
| Product | Model | Outlet Size | Inlet Size | Body Material | Overall Width | Overall Height | Outlet Type | Temp. Range | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

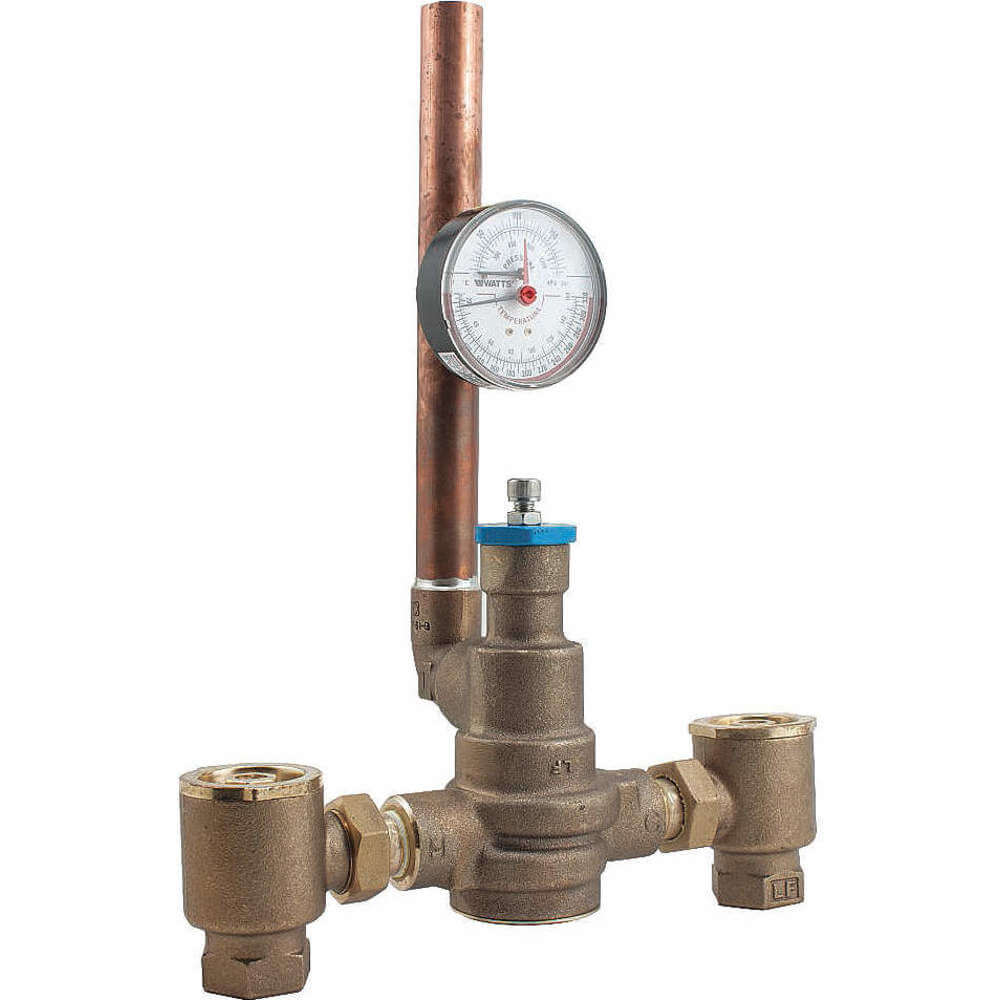

LFSH1432 W/TP GAUGE | 1" | - | Cast Bronze | 11 3/8" | 7 1/4" | NPT | +90°F to +160°F | 125 psi | €4,178.68 | |
 |

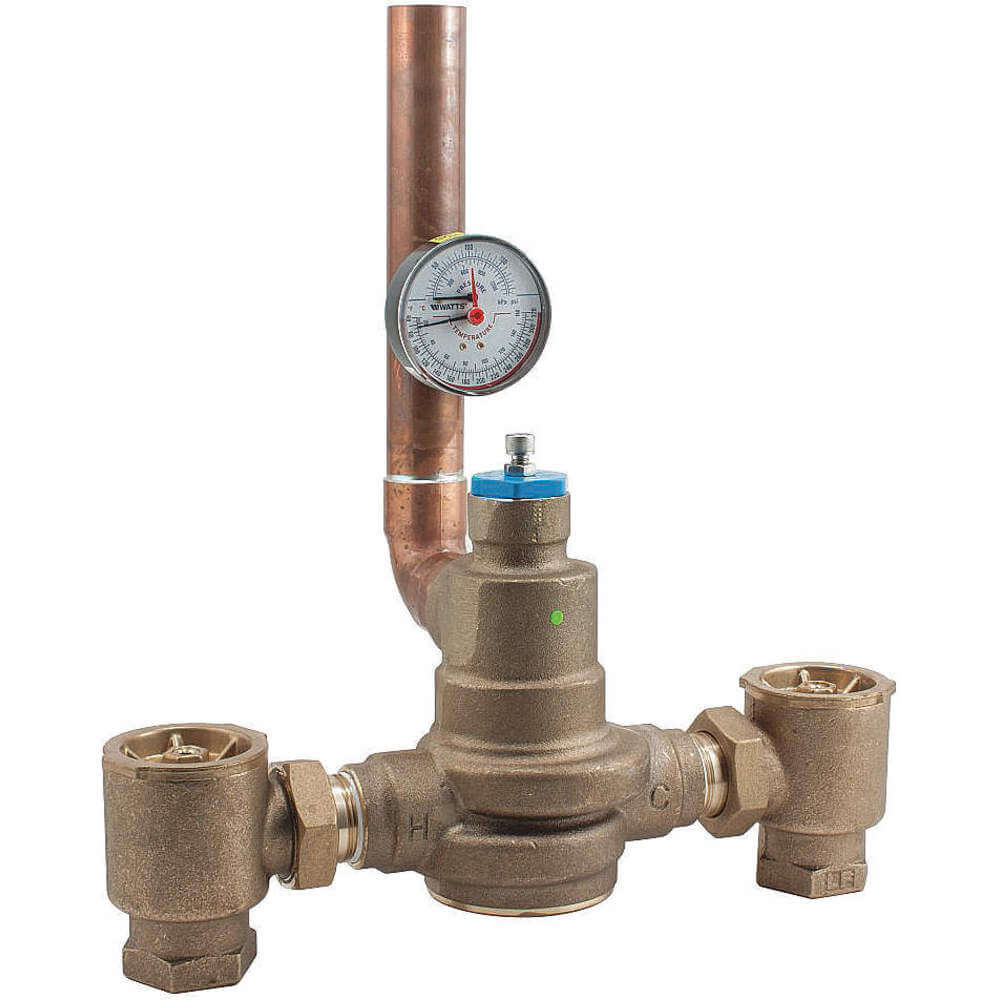

LFSH1434 W/TP GAUGE | 1 1/2" | 1 1/4" | Bronze | 15 1/2" | 9 1/4" | NPT | +90°F to +160°F | 125 psi | €6,763.90 |
