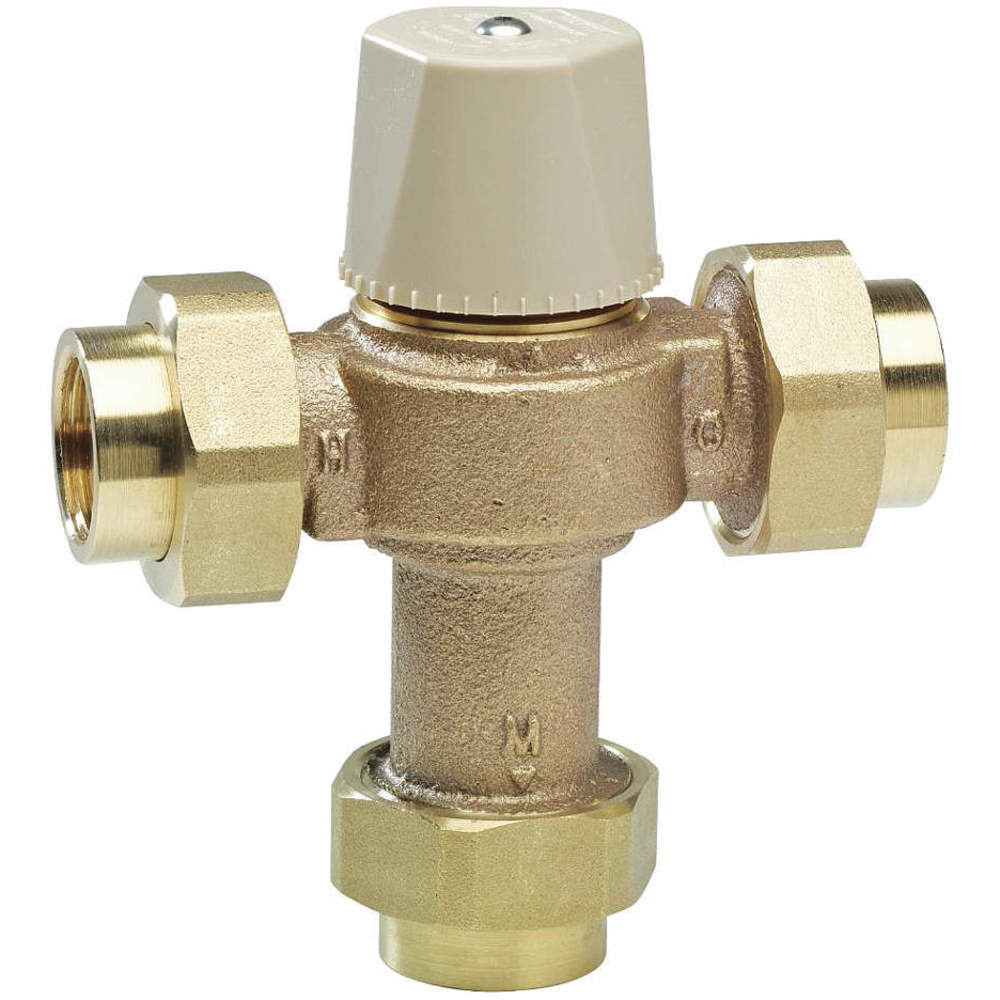

POWERS LFE480-51 Thermostatic Mixing Valve 3/8 Inch
Item: AF8XQEModel: LFE480-51Cross Ref: 29HZ34
7 In Stock
Ships within 2 days via
10.00% off
€268.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermostatic Mixing Valve |
| Cold Inlet Temp. | +40°F to +80°F |
| Connection Type | Quick Connect |
| Flow Rate | 4 GPM |
| Hot Inlet Temp. | +120° to +180°F |
| Hot Inlet Temp. Range | 120°F to 180°F |
| Inlet (cold) Temperature Range | 40°F to 80°F |
| Inlet Connection Size | 3/8" |
| Inlet Size | 3/8" |
| Inlet Temperature (cold) | 40 Degrees to 80 Degrees F |
| Inlet Temperature (hot) | 120 Degrees to 180 Degrees F |
| Inlet Type | Quick Connect |
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 125 psi |
| Outlet Connection Size | 3/8" |
| Outlet Temperature Range | 80°F to 120°F |
| Outlet Type | Quick Connect |
| Overall Height | 3 9/16" |
| Overall Width | 4 11/16" |
| Temp. Range | +80°F to +120°F |
Shipping Info:
| Ship weight (kg) | 0.48 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 14.13 |
| Ship width (cm) | 7.94 |
| HS code | 8481400000 |
Product Variants
| Product | Model | Flow Rate | Inlet Size | Inlet Type | Outlet Type | Temp. Range | Outlet Size | Max. Pressure | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LFE480-50 | 4 GPM | 3/8" | Quick Connect | Quick Connect | +80°F to +120°F | 3/8" | 125 psi | 4 11/16" | €240.23 |
