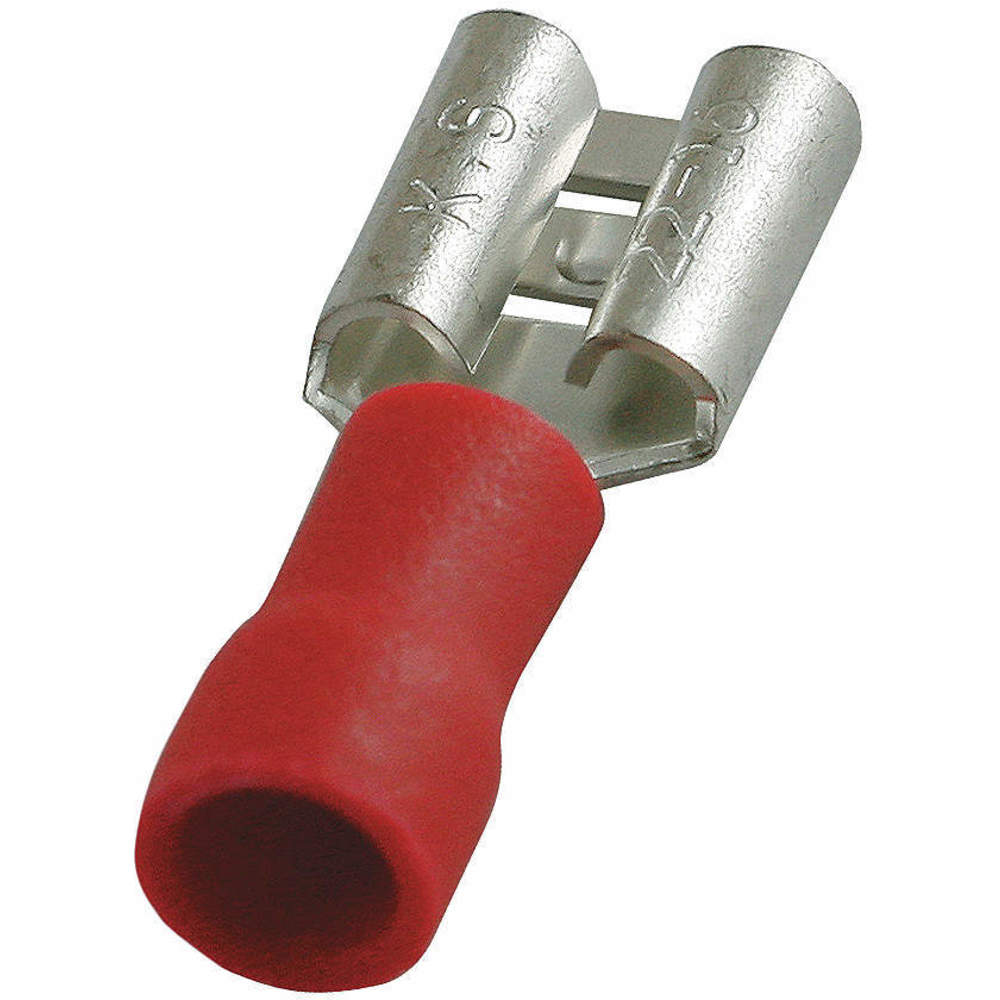

POWER FIRST 5WHC3 Female Disconnect Red 22 To 16 Awg
Item: AE7AQKModel: 5WHC3
7 In Stock
Ships within 2 days via
10.00% off
€14.73 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Disconnect |
| Barrel Inside Dia. | 0.067" |
| Barrel Outside Dia. | 0.157" |
| Barrel Size | Standard |
| Barrel Style | Crimp |
| Color Code | Red |
| Connection Material | Brass |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating | 10A |
| Disconnect Style | Tab |
| Flammability Rating | V-0 |
| Insulation | Partial |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 167°F |
| Max. Voltage | 300V |
| Max. Wire Size | 16 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.748" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Standards | UL/CUL Listed |
| Strip Length | 1/4" |
| Tab Size | 0.02" x 0.187" |
| Tab Thickness | 0.02" |
| Tab Width | 0.187" |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Ul 94 Flammability Rating | V-0 |
| Wire Size | 22 AWG to 16 AWG |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 5.08 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Wire Size | Insulation Color | Insulation Material | Max. Voltage | Max. Temp. | Connection Material | Barrel Inside Dia. | Tab Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C712 | 12 AWG to 10 AWG | Yellow | Nylon | 600V | 221°F | Tin Plated Brass | 0.134" | 0.032" x 0.25" | 50 | €48.64 | |
 |
24C722 | 22 AWG to 16 AWG | Red | Nylon | 600V | 221°F | Tin Plated Brass | 0.067" | 0.02" x 0.11" | 100 | €101.61 | |
 |
24C730 | 16 AWG to 14 AWG | Blue | Nylon | 600V | 221°F | Tin Plated Brass | 0.091" | 0.02" x 0.11" | 100 | €58.08 | |
|
24C738 | 22 AWG to 16 AWG | Red | Nylon | 600V | 221°F | Tin Plated Brass | 0.067" | 0.032" x 0.25" | 100 | €62.92 | |
|
24C741 | 22 AWG to 16 AWG | Red | Nylon | 600V | 221°F | Tin Plated Brass | 0.067" | 0.032" x 0.11" | 100 | €51.57 | |
|
24C770 | 16 AWG to 14 AWG | Blue | Nylon | 600V | 221°F | Tin Plated Brass | 0.091" | 0.032" x 0.25" | 100 | €66.69 | |
|
24C773 | 16 AWG to 14 AWG | Blue | Nylon | 600V | 221°F | Tin Plated Brass | 0.091" | 0.032" x 0.11" | 100 | €58.08 |
