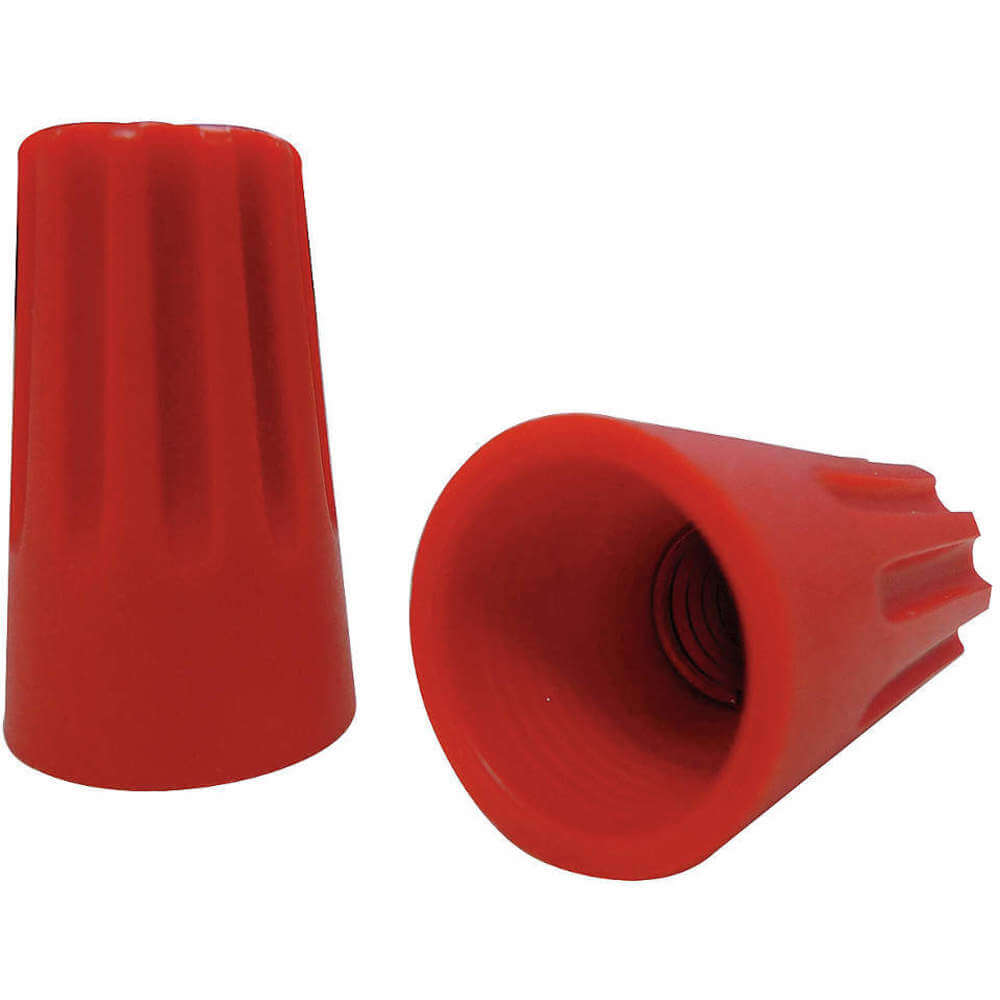

POWER FIRST 5UYJ6 Wire Connector Red
Item: AE6TQJModel: 5UYJ6
7 In Stock
Ships within 2 days via
10.00% off
€13.37 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Twist On Wire Connector |
| Application | General Purpose |
| Color | Red |
| Compatible Installation Tool Model Number | No. 4 |
| Compatible With Product Type | Light Fixtures & House Wiring |
| Contact Material | Steel |
| Flammability Rating | V-2 |
| For Conductor Material | Copper |
| Height | 1.57" |
| High Temperature Application | No |
| Insulation Material | Thermoplastic |
| Length | 1/2" |
| Max. Single Wire Size | 10 AWG |
| Max. Voltage | 600V |
| Max. Wire Combination | 2 #10 Sol With 2 #12 Str |
| Max. Wire Size | 10 AWG |
| Maximum Conductors | 9 |
| Maximum Operating Temperature | 221°F |
| Maximum Single Wire Size | 10 AWG |
| Maximum Wire Combination | (2) 10 AWG With (2) 12 AWG |
| Min. Wire Combination | 3 #18 |
| Min. Wire Size | 22 AWG |
| Minimum Single Wire Size | 22 AWG |
| Minimum Wire Combination | (3) 18 AWG |
| Outside Dia. | 13/25" |
| Outside Diameter | 0.52" |
| Overall Height | 1 1/25" |
| Overall Width | 16/25" |
| Rohs Compliant | Yes |
| Special Features | Deep Skirt Protects Against Flash-Over, Square-Wire Spring Creates Secure Connections |
| Strip Length | 1/2" |
| Ul 94 Flammability Rating | V-2 |
| Width | 16/25" |
| Wire Connector Style | Standard |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 9.14 |
| HS code | 8546900000 |
| Country of Origin | CN |
Product Details:
- Special Features: Quick and easy to match the right connector to the size of the wire. Shells are designed to withstand temperatures up to 221F (105C). Works well with solid or stranded wire.
Product Variants
| Product | Model | Max. Wire Combination | Strip Length | Min. Wire Combination | Maximum Conductors | Maximum Single Wire Size | Minimum Single Wire Size | Wire Connector Style | Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5UYH6 | 2 #10 With 1 #12 | 7/8" | 2 #10 | 5 | 6 AWG | 14 AWG | Wing | 0.7" | 25 | €13.01 | |
 |
5UYH7 | 4 #16 With 1 #20 | 5/16" | 1 #18 With 1#20 | 5 | 14 AWG | 22 AWG | Standard | 0.38" | 300 | €49.41 | |
 |
5UYH8 | 2 #12 With 2 #14 | 3/8" | 3 #20 Sol | 7 | 8 AWG | 22 AWG | Standard | 0.43" | 175 | €45.28 | |
 |
5UYH9 | 2 #10 Sol With 2 #12 Str | 1/2" | 3 #18 | 9 | 10 AWG | 22 AWG | Standard | 13/25" | 150 | €23.69 | |
 |
5UYJ1 | 5 #12 Sol | 5/8" | 3 #16 | 6 | 6 AWG | 22 AWG | Wing | 0.51" | 300 | €49.49 | |
 |
5UYJ2 | 1 #16 With 1 #18 With 1 #20 | 1/4" | 2 #22 | 5 | 14 AWG | 22 AWG | Standard | 0.26" | 100 | €15.25 | |
 |
5UYJ3 | 3 #16 | 1/2" | 2 #22 | 5 | 14 AWG | 22 AWG | Standard | 7/25" | 100 | €16.76 |
