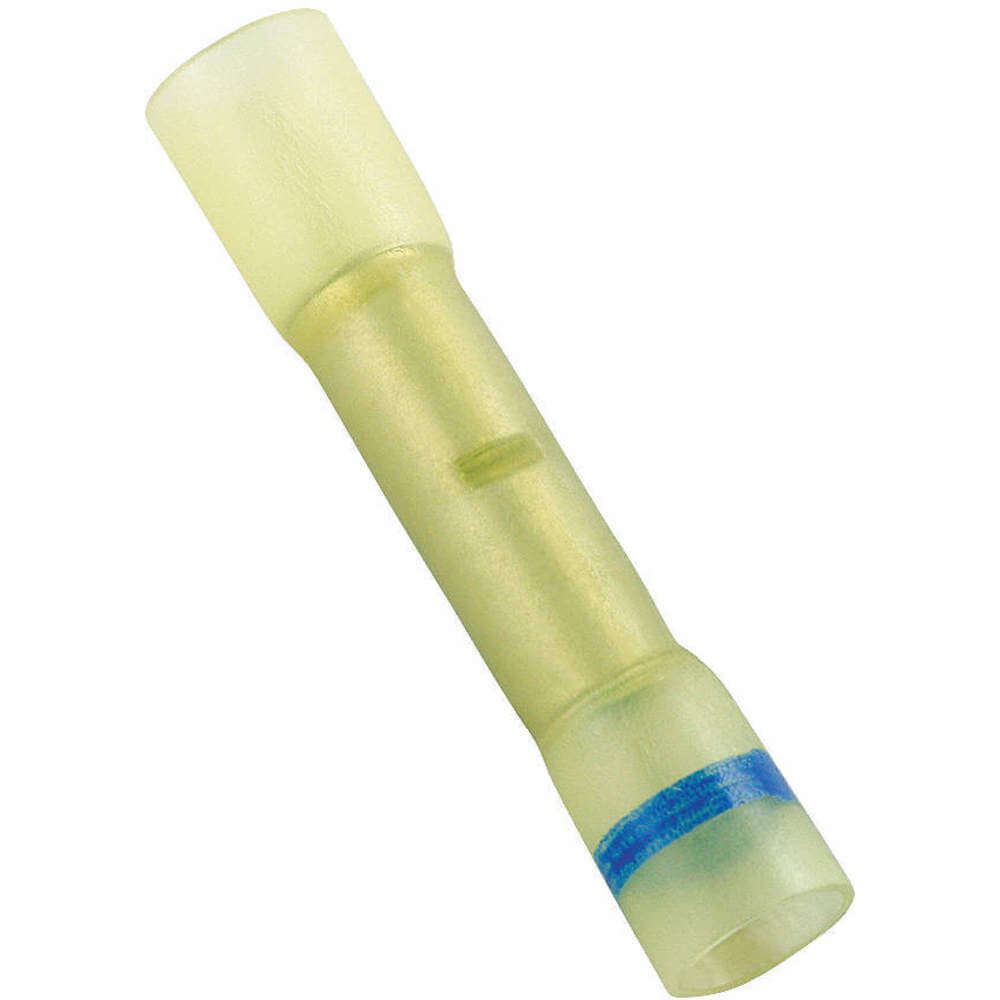

POWER FIRST 5UGV2 Step Down Butt Connector
Item: AE6PJRModel: 5UGV2
7 In Stock
Ships within 2 days via
10.00% off
€120.21 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Step Down Butt Splice Connector |
| Barrel Id | 0.134" |
| Barrel Inside Dia. | 0.091" , 0.134" |
| Body Finish | Tin Plated |
| Body Material | Copper |
| Color | Yellow |
| Color Code | Yellow |
| Combo Termination And Material | Crimp |
| Compatible Installation Tool Model Number | 24C968 |
| Compatible With Product Type | Insulated Stranded Copper Cable |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connector Type | Butt Splice |
| Contact Finish | Tin |
| Contact Material | Copper |
| Finish | Tin Plated |
| Flammability Rating | HB |
| For Maximum Wire Insulation Diameter | 0.064" |
| For Wire Type | Solid, Stranded |
| Insulation Color | Yellow |
| Insulation Type | Heat Shrink |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 10 AWG |
| Maximum Conductors | 2 |
| Min. Wire Size | 16 AWG |
| Number Of Splices | 1 |
| Overall Length | 1.61" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Seamless |
| Special Features | Changing Down, Water-Resistant |
| Standards | UL/CUL Listed |
| Strip Length | 1/4" |
| Termination Type | Crimp |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 7.62 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Insulation Color | Max. Temp. | Overall Length | Strip Length | Barrel Inside Dia. | Color | Insulation Type | Max. Voltage | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

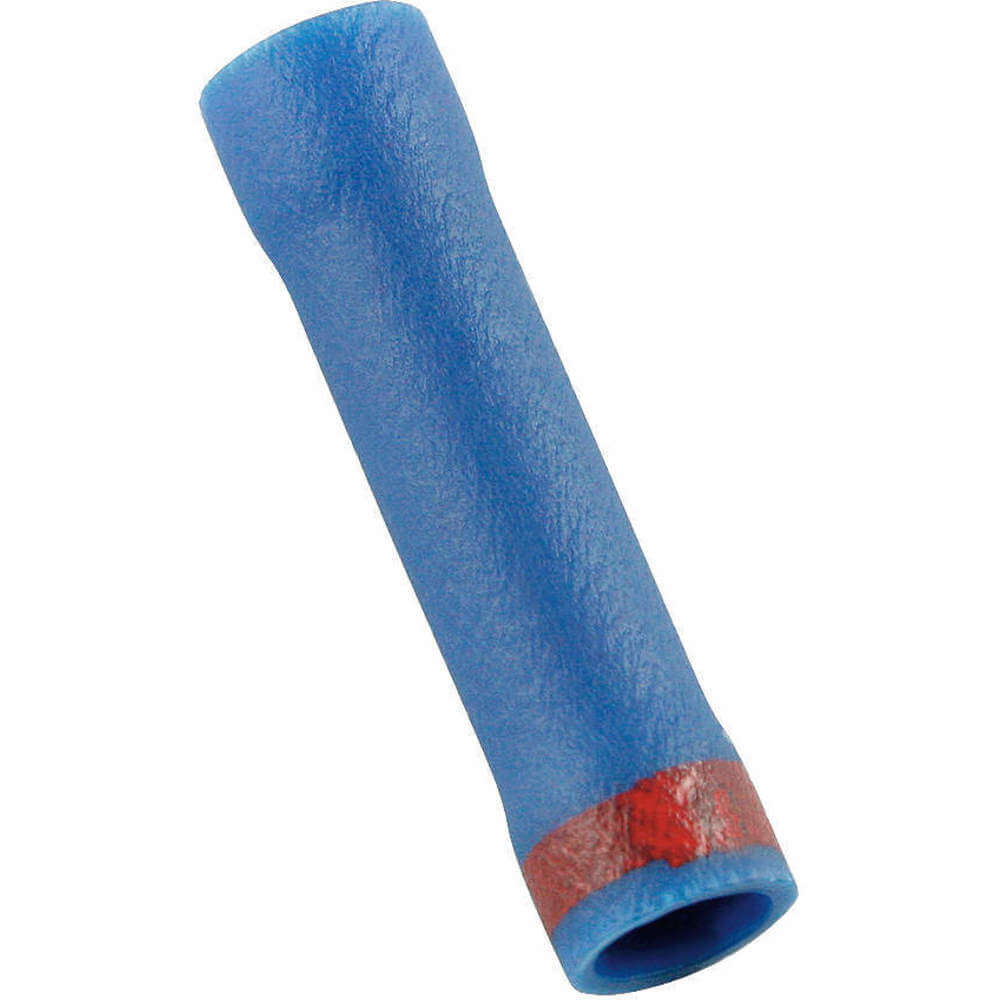

5UGU8 | Blue | 167°F | 0.97" | 1/4" | 0.091" | Blue | - | 600V | 100 | €76.19 | |
 |

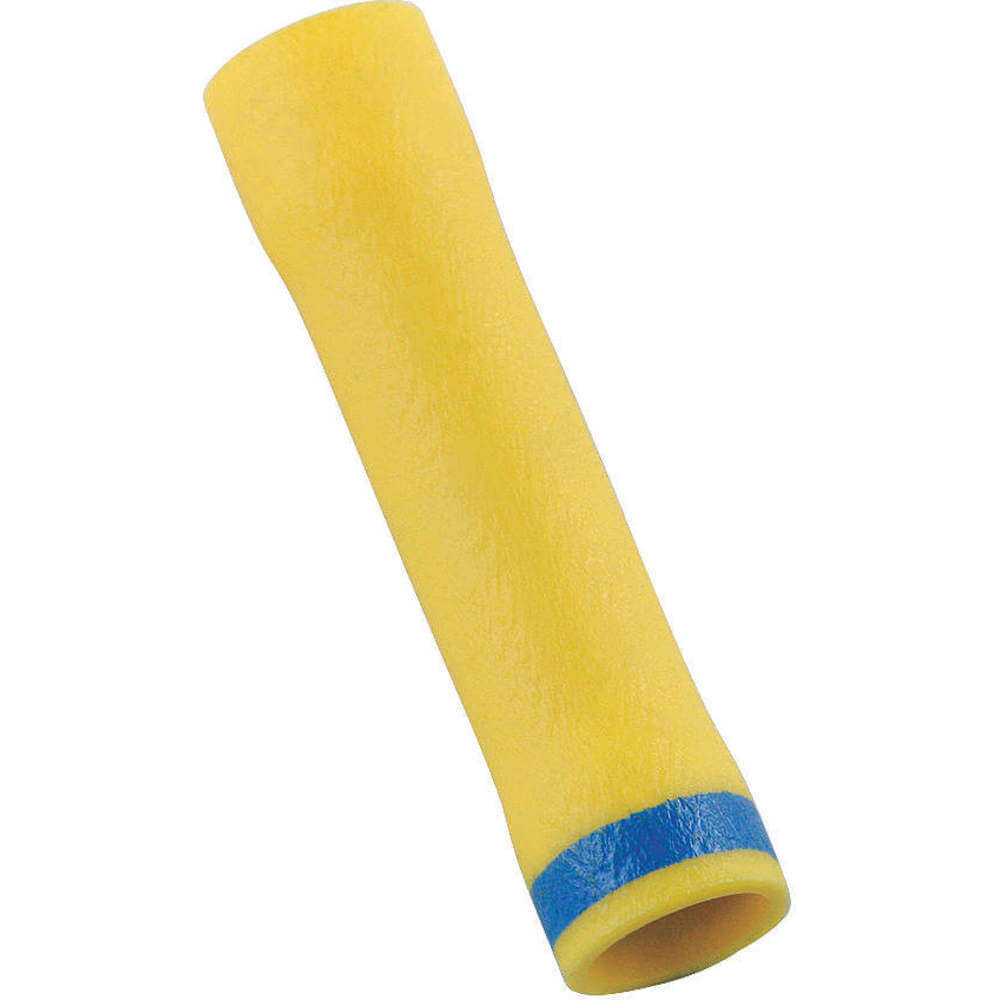

5UGU9 | Yellow | 167°F | 1.22" | 1/4" | 0.091" | Yellow | Vinyl | 600V | 100 | €104.16 | |
 |
5UGV0 | Red | 167°F | 1.406" | 3/8" | 0.177" | Red | Vinyl | 600V | 50 | €71.69 | |
 |

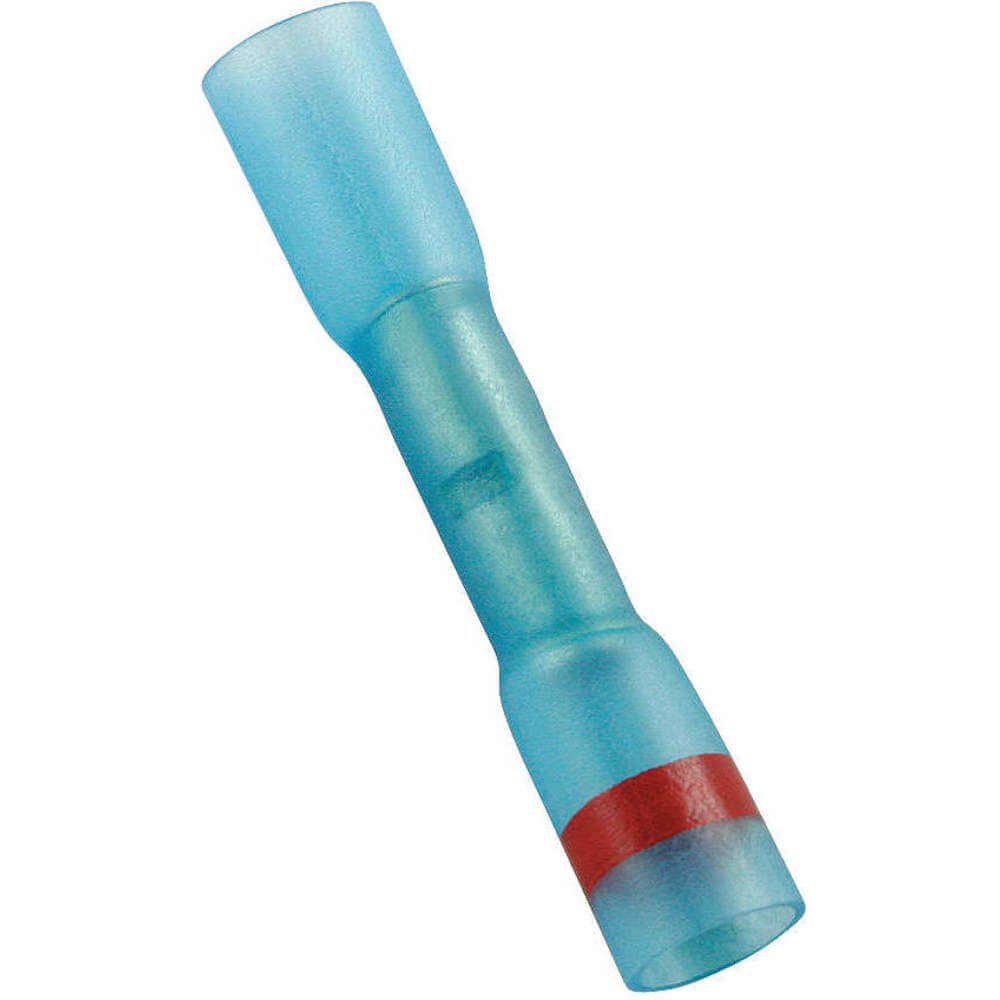

5UGV1 | Blue | 221°F | 1.42" | 1/4" | 0.091" | Blue | Heat Shrink | 600V | 50 | €94.19 |
