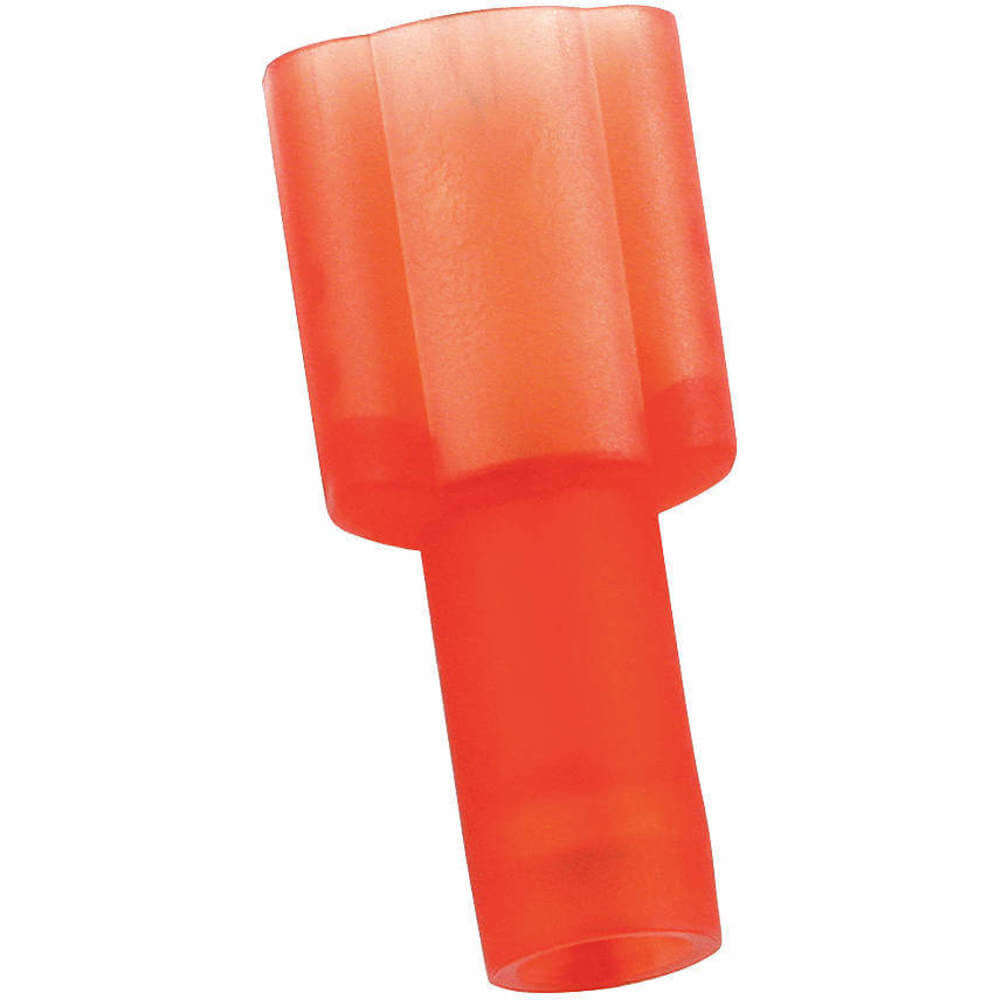

POWER FIRST 5UGP9 Male Disconnect Red 22 To 16 Awg
Item: AE6PJAModel: 5UGP9
7 In Stock
Ships within 2 days via
10.00% off
€26.40 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Disconnect |
| Barrel Inside Dia. | 0.067" |
| Barrel Outside Dia. | 0.15" |
| Barrel Size | Standard |
| Barrel Style | Crimp |
| Color Code | Red |
| Connection Material | Brass |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating | 7A |
| Disconnect Style | Tab |
| Flammability Rating | V-2 |
| Insulation | Full |
| Insulation Color | Red |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Insulation Type | Full |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.874" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Tab Size | 0.02" x 0.187" |
| Tab Thickness | 0.02" |
| Tab Width | 0.187" |
| Terminal Type | Tab |
| Termination Style | Crimp |
| Ul 94 Flammability Rating | V-2 |
| Wire Size | 22 AWG to 16 AWG |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 8.89 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Wire Size | Insulation Color | Insulation | Max. Voltage | Barrel Inside Dia. | Insulation Type | Overall Length | Color Code | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

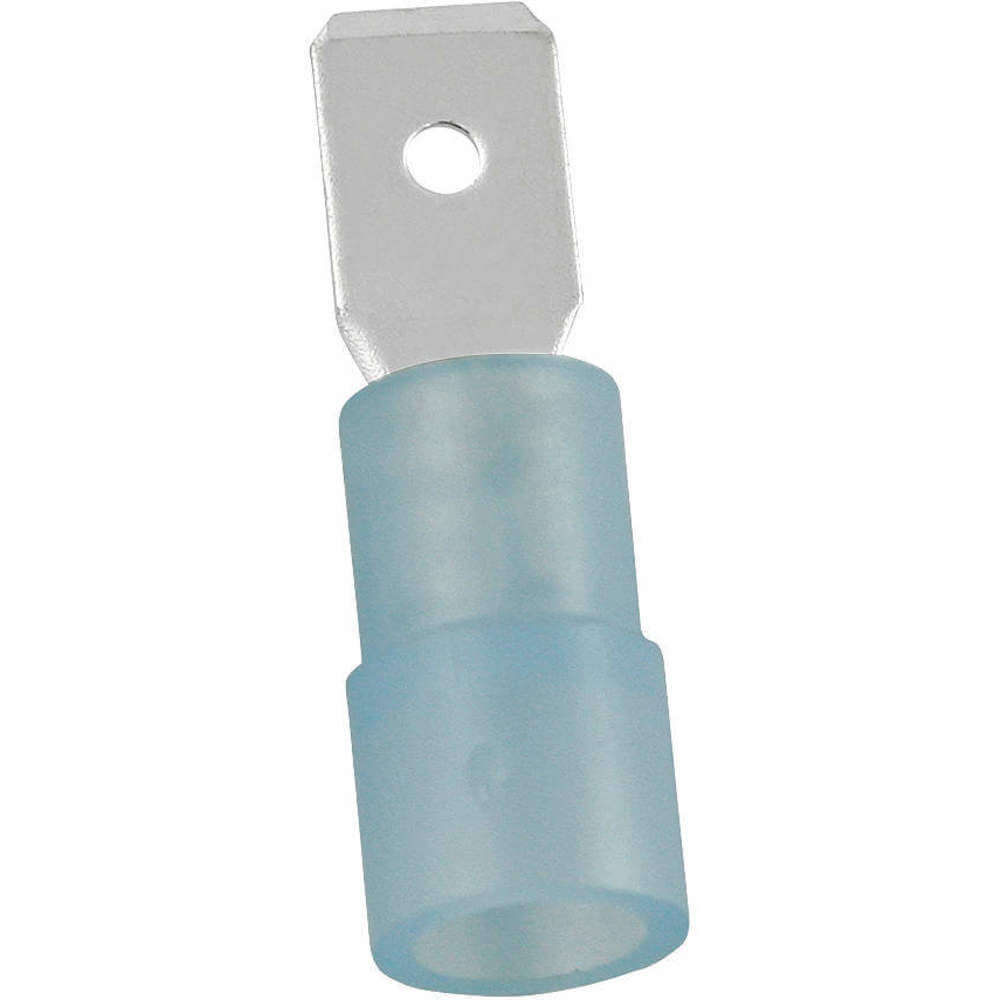

5UGR0 | 16 AWG to 14 AWG | Blue | Partial | 300V | 0.091" | Nylon | 0.787" | Blue | 100 | €18.94 |
