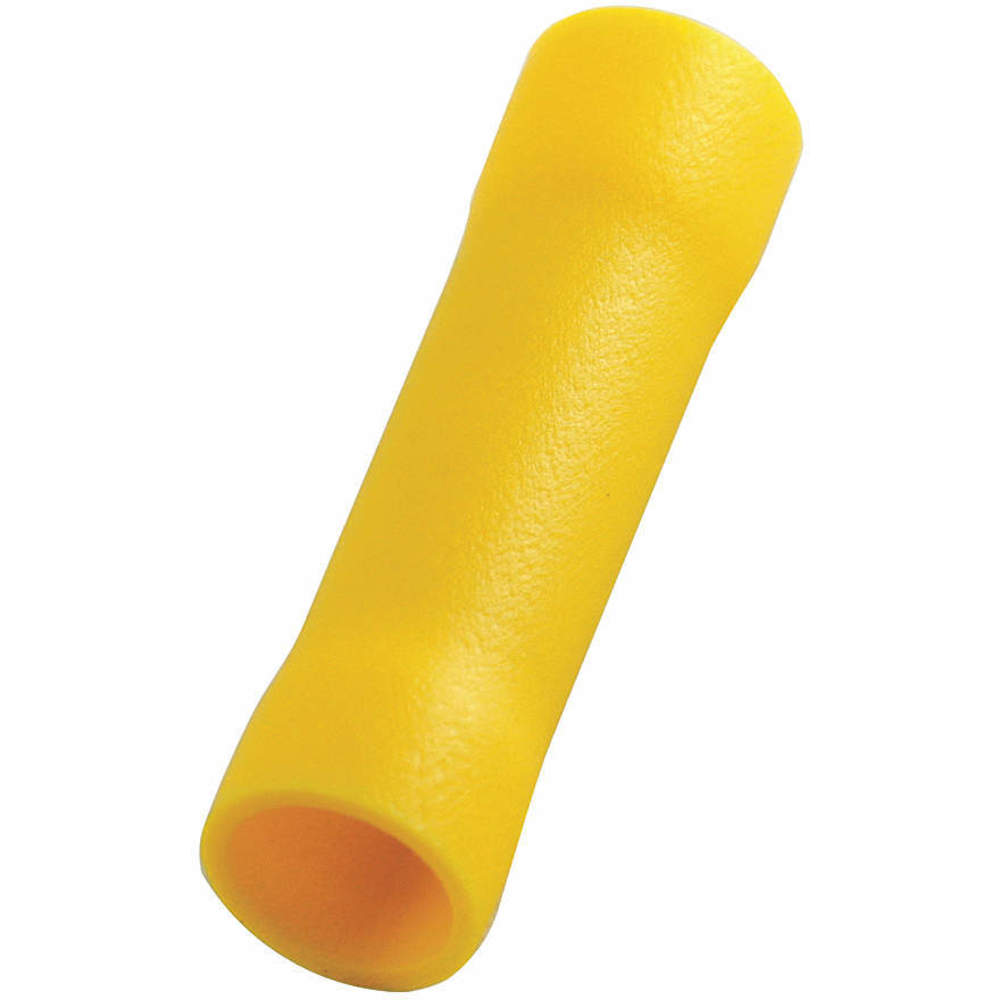

POWER FIRST 4FRL5 Butt Splice Connector Yellow 12-10
Item: AD7PBEModel: 4FRL5
7 In Stock
Ships within 2 days via
10.00% off
€37.06 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Butt Splice Connector |
| Barrel Id | 0.134" |
| Barrel Inside Dia. | 0.134" |
| Barrel Outside Dia. | 0.248" |
| Body Finish | Tin Plated |
| Body Material | Copper |
| Color | Yellow |
| Color Code | Yellow |
| Combo Termination And Material | Crimp/Vinyl |
| Compatible Installation Tool Model Number | 24C968 |
| Compatible With Product Type | Insulated Stranded Copper Cable |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connector Type | Butt Splice |
| Contact Finish | Tin |
| Contact Material | Copper |
| Finish | Tin Plated |
| Flammability Rating | V-0 |
| For Maximum Wire Insulation Diameter | 0.102" |
| For Wire Type | Solid, Stranded |
| Insulation Color | Yellow |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 167°F |
| Max. Voltage | 600V |
| Max. Wire Size | 10 AWG |
| Maximum Conductors | 2 |
| Min. Wire Size | 12 AWG |
| Number Of Splices | 1 |
| Overall Length | 1.04" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Special Features | Vinyl Insulation Is Economic |
| Standards | UL/CUL Listed |
| Strip Length | 3/8" |
| Termination Type | Crimp |
| Ul 94 Flammability Rating | V-0 |
| Wire Range | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Insulation Color | Wire Size | Max. Temp. | Strip Length | Insulation Type | Wire Range | Barrel Inside Dia. | Color | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4FRD9 | Blue | 6 AWG | 167°F | 1/2" | Vinyl | 6 AWG | 0.232" | Blue | 20 | €36.29 | |
 |
4FRE1 | Yellow | 4 AWG | 167°F | 9/16" | Vinyl | 4 AWG | 0.307" | Yellow | 20 | €55.00 | |
 |
4FRE6 | Yellow | - | 221°F | 1/4" | Heat Shrink | 12 AWG to 10 AWG | 0.134" | Yellow | 25 | €28.87 | |
 |
4FRE7 | Blue | - | 221°F | 1/4" | Heat Shrink | 16 AWG to 14 AWG | 0.091" | Blue | 25 | €45.53 | |
 |
4FRE8 | Red | - | 221°F | 1/4" | Heat Shrink | 22 AWG to 16 AWG | 0.067" | Red | 25 | €45.53 | |
 |
4FRG7 | Bare | - | 257°F | 1/4" | Non Insulated | 22 AWG to 16 AWG | 0.071" | Bare | 100 | €40.25 | |
 |
4FRG8 | Bare | - | 257°F | 1/4" | Non Insulated | 16 AWG to 14 AWG | 0.091" | Bare | 100 | €35.73 |
