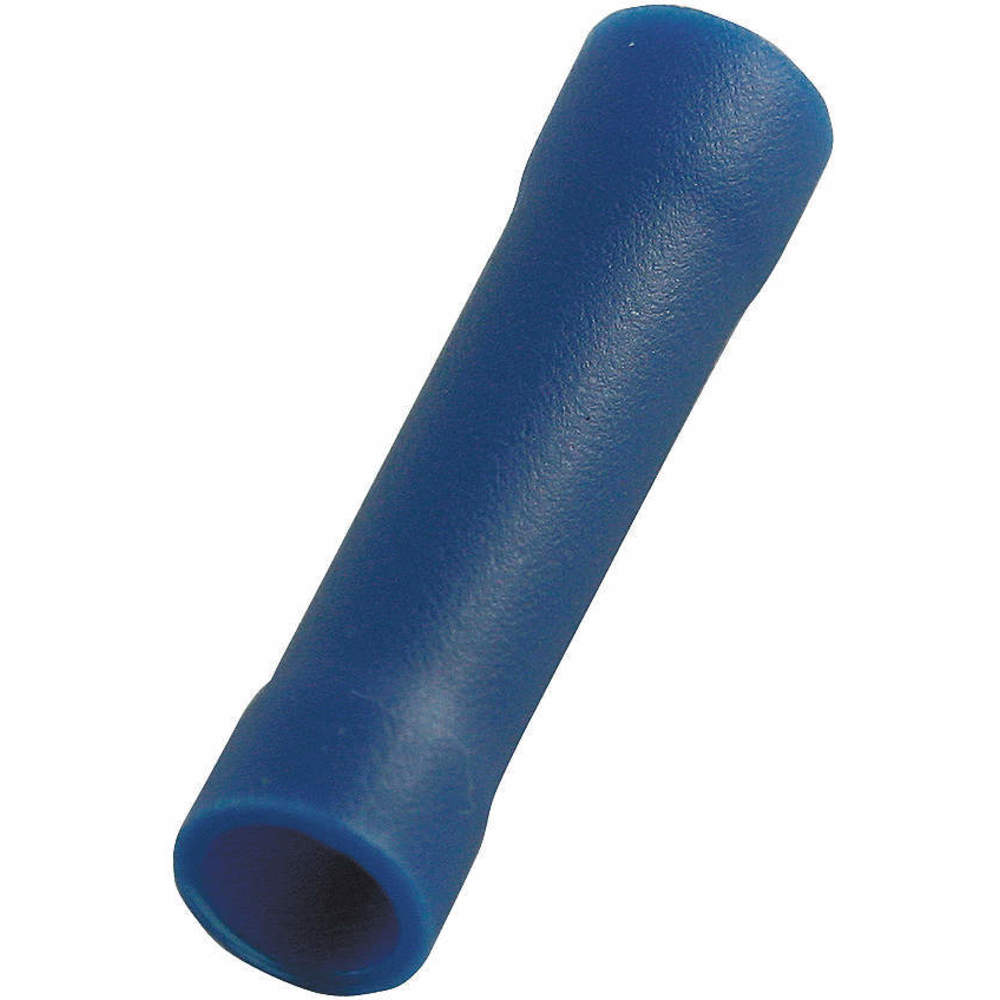

POWER FIRST 4FRJ1 Butt Splice Connector Blue 16-14

Item: AD7PAHModel: 4FRJ1

7 In Stock

Ships within 2 days via

~~€53.23~~

10.00% off

€47.91 /pkg. of 100

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Butt Splice Connector
Barrel Id	0.091"
Barrel Inside Dia.	0.091"
Barrel Outside Dia.	0.177"
Body Finish	Tin Plated
Body Material	Copper
Color	Blue
Color Code	Blue
Combo Termination And Material	Crimp/Vinyl
Compatible Installation Tool Model Number	24C968
Compatible With Product Type	Insulated Stranded Copper Cable
Connection Material	Copper
Connection Type	Crimp
Connector Type	Butt Splice
Contact Finish	Tin
Contact Material	Copper
Finish	Tin Plated
Flammability Rating	V-0
For Maximum Wire Insulation Diameter	0.064"
For Wire Type	Solid, Stranded
Insulation Color	Blue
Insulation Material	Vinyl
Insulation Type	Vinyl
Max. Temp.	167°F
Max. Voltage	600V
Max. Wire Size	14 AWG
Maximum Conductors	2
Min. Wire Size	16 AWG
Number Of Splices	1
Overall Length	0.97"
Rohs Compliant	Yes
Seam	Butted
Seam Style	Butted
Special Features	Vinyl Insulation Is Economic
Standards	UL/CUL Listed
Strip Length	1/4"
Termination Type	Crimp
Ul 94 Flammability Rating	V-0
Wire Range	16 AWG to 14 AWG

Model	Insulation Color	Wire Size	Max. Temp.	Strip Length	Insulation Type	Wire Range	Barrel Inside Dia.	Color	Pkg. Qty.	Price
4FRD9	Blue	6 AWG	167°F	1/2"	Vinyl	6 AWG	0.232"	Blue	20	€36.29
4FRE1	Yellow	4 AWG	167°F	9/16"	Vinyl	4 AWG	0.307"	Yellow	20	€55.00
4FRE6	Yellow	-	221°F	1/4"	Heat Shrink	12 AWG to 10 AWG	0.134"	Yellow	25	€28.87
4FRE7	Blue	-	221°F	1/4"	Heat Shrink	16 AWG to 14 AWG	0.091"	Blue	25	€45.53
4FRE8	Red	-	221°F	1/4"	Heat Shrink	22 AWG to 16 AWG	0.067"	Red	25	€45.53
4FRG7	Bare	-	257°F	1/4"	Non Insulated	22 AWG to 16 AWG	0.071"	Bare	100	€40.25
4FRG8	Bare	-	257°F	1/4"	Non Insulated	16 AWG to 14 AWG	0.091"	Bare	100	€35.73
