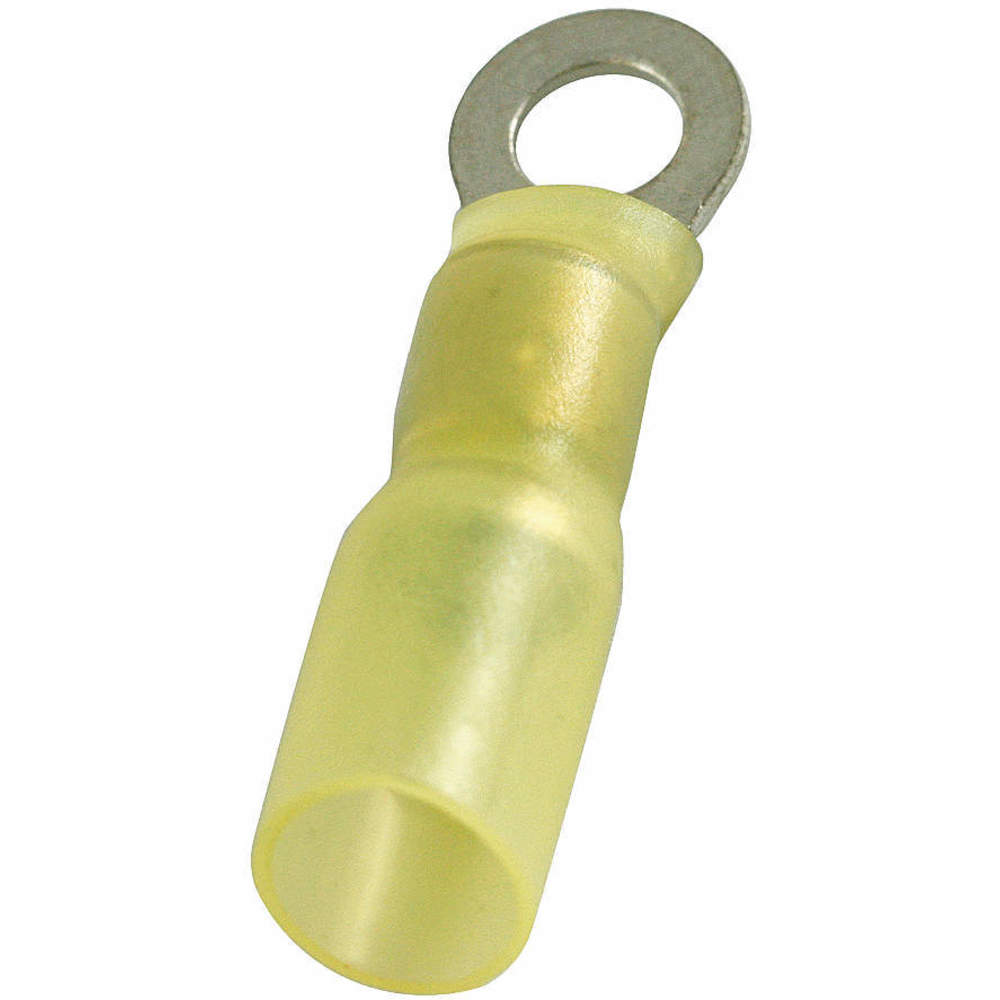

POWER FIRST 4FRE9 Ring Terminal Yellow Brazed 12-10
Item: AD7NZCModel: 4FRE9
7 In Stock
Ships within 2 days via
10.00% off
€46.99 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ring Terminal |
| Barrel Size | Standard |
| Color Code | Yellow |
| Compatible With Product Type | Insulated Stranded Copper Cable |
| Connection Material | Copper |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Hole Dia. | 0.21" |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Type | Heat Shrink |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 1.339" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Heat-Shrink Insulation Water Resistant |
| Strip Length | 3/8" |
| Stud Size | #10 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Ring Terminal |
| Terminal Type | Standard |
| Termination Style | Crimp |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 10.41 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Model | Insulation Color | Stud Size | Max. Temp. | Strip Length | Min. Wire Size | Seam Style | Seam | Tongue Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24C793 | Bare | #8 | 1200°F | 1/4" | 26 AWG | Butted | Butted | 0.26" | 500 | €58.05 | |
| 24C823 | Bare | #4 | 300°F | 1/4" | 22 AWG | Brazed | Brazed | - | 100 | €70.70 | |
| 24C827 | Bare | 1/4" | 300°F | 1/4" | 22 AWG | Brazed | Brazed | 0.46" | 100 | €94.26 | |
| 24C828 | Bare | 5/16" | 300°F | 1/4" | 22 AWG | Brazed | Brazed | 0.46" | 100 | €82.20 | |
| 24C829 | Bare | 3/8" | 300°F | 1/4" | 22 AWG | Brazed | Brazed | 0.54" | 100 | €74.52 | |
| 24C830 | Bare | 1/2" | 300°F | 1/4" | 22 AWG | Brazed | Brazed | 0.76" | 100 | €129.43 | |
| 24C831 | Bare | #4 | 300°F | 1/4" | 16 AWG | Brazed | Brazed | 0.26" | 100 | €24.69 |
