POWER FIRST 31A497 Piggyback Double Crimp Vinyl 12-10
Item: AC4XFMModel: 31A497
7 In Stock
Ships within 2 days via
10.00% off
€27.13 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Piggyback Disconnect |
| Barrel Id | 0.134" |
| Barrel Inside Dia. | 0.244" |
| Barrel Outside Dia. | 0.244" |
| Barrel Size | Standard |
| Barrel Style | Crimp |
| Color Code | Yellow |
| Connection Material | Brass |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Contact Material | Brass |
| Current Rating | 24A |
| Disconnect Style | Piggyback |
| Flammability Rating | V-0 |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Overall Length | 0.945" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Standards | UL/CUL Listed |
| Strip Length | 3/8" |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Socket, Tab |
| Termination Style | Crimp |
| Ul 94 Flammability Rating | V-0 |
| Wire Size | 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 8.13 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Wire Size | Insulation Color | Insulation Material | Max. Voltage | Max. Temp. | Barrel Inside Dia. | Insulation Type | Color Code | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
31A492 | 22 AWG to 16 AWG | Red | Vinyl | 300V | 167°F | 0.067" | Vinyl | Red | 50 | €21.68 | |
 |
31A493 | 16 AWG | Blue | Vinyl | 300V | 167°F | 0.091" | Vinyl | Blue | 50 | €21.54 | |
|
31A494 | 10 AWG | Yellow | Vinyl | 300V | 167°F | 0.134" | Vinyl | Yellow | 50 | €23.49 | |
|
31A495 | 22 AWG to 16 AWG | Red | Vinyl | 600V | 221°F | 0.15" | Vinyl | Red | 50 | €25.18 | |
|
31A496 | 16 AWG | Blue | Vinyl | 600V | 221°F | 0.091" | Vinyl | Blue | 50 | €26.05 | |
 |
31A498 | 22 AWG to 16 AWG | Red | Polyolefin | 300V | 221°F | 0.067" | Heat Shrink | Red | 50 | €45.97 | |
 |

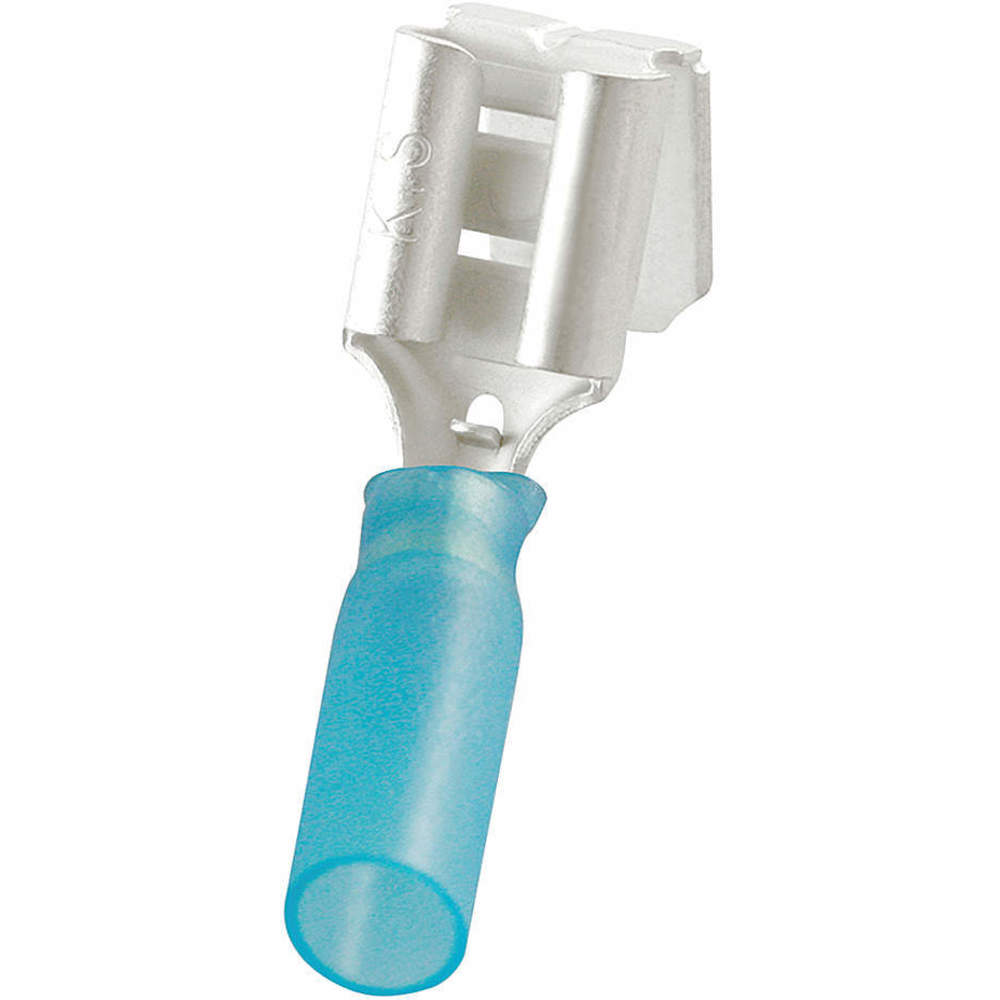

31A499 | 16 AWG | Blue | Polyethylene | 300V | 221°F | 0.091" | Heat Shrink | Blue | 50 | €47.75 |
