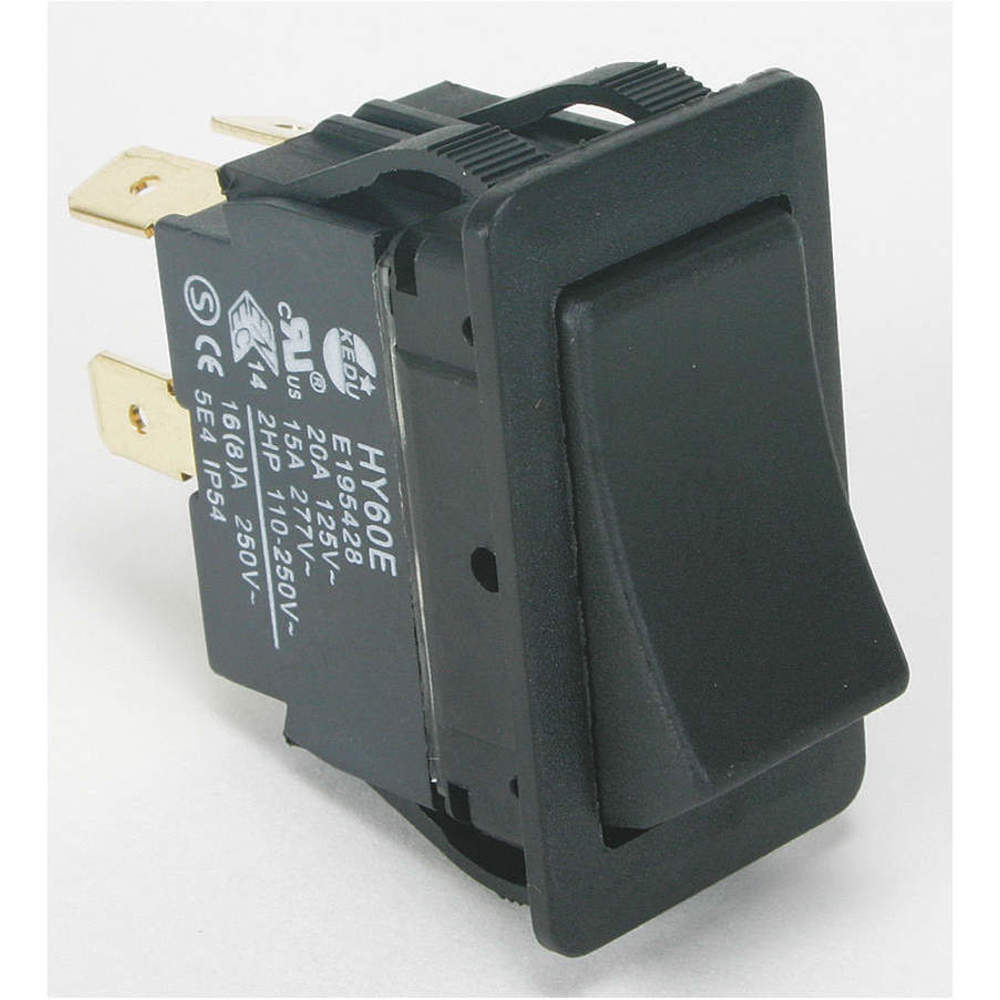

POWER FIRST 2LNF4 Rocker Switch Dpst 4 Connections
Item: AC2NPWModel: 2LNF4
7 In Stock
Ships within 2 days via
10.00% off
€13.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rocker Switch |
| Ac Contact Rating | 15A @ 277V, 20A @ 125V |
| Body Color | Black |
| Color | Black |
| Contact Form | DPST |
| Horsepower | 2 hp |
| Hp | 2 hp @ 110/250V AC |
| Manufacturer Warranty Length | 2 yrs. |
| Mounting Hole | 0.83" x 1.45" |
| Mounting Hole Length | 1.48" |
| Mounting Hole Width | 0.83" |
| Number Of Connections | 4 |
| Number Of Positions | 2 |
| Operating Temp. Range | +32°F to +113°F |
| Operating Temperature - Maximum | 104°F |
| Operating Temperature - Minimum | 32°F |
| Operator Illumination | Non Illuminated |
| Overall Depth | 0.96" |
| Overall Height | 0.33" |
| Overall Width | 1.7" |
| Product Type | Rocker Switch |
| Series | HY60 Series |
| Standards | Cruus |
| Switch Action | Momentary On/Off |
| Switch Color | Black |
| Terminal Connection Type | Quick-Connect Tab Terminals |
| Terminal Size | 1/4" |
| Terminal Type | Quick Connect Tab |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 7.62 |
| HS code | 8536509065 |
| Country of Origin | CN |
Product Variants
| Product | Model | Contact Form | Switch Color | Hp | Number Of Connections | Mounting Hole | Color | Body Color | Terminal Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
29FG25 | DPST | Black | 2 hp @ 125/250V AC | 4 | 0.87" x 1 4/25" | Black | Black | 1/4" | €15.41 | |
 |
29FG26 | DPST | Red | 2 hp @ 125/250V AC | 4 | 0.87" x 1 4/25" | Red | Black | 1/4" | €14.13 | |
 |
29FG29 | DPDT | Black | 2 hp @ 125/250V AC | 6 | 0.87" x 1 4/25" | Black | Black | 1/4" | €16.59 | |
|
29FG31 | DPDT | Black | 2 hp @ 125/250V AC | 6 | 0.87" x 1 4/25" | Black | Black | 1/4" | €13.07 | |
 |
29FG35 | DPDT | Black | 1 1/2 hp | 6 | 0.87" x 1 4/25" | Black | Black | 1/4" | €18.31 | |
 |
29FG43 | DPDT | White | 1 1/2 hp | 6 | 0.83" x 1.45" | Ivory | Black | - | €15.95 | |
 |
2LNA6 | SPST | Red | 2 hp @ 110/250V AC | 2 | 0.83" x 1.45" | Red | Black | - | €6.03 |
