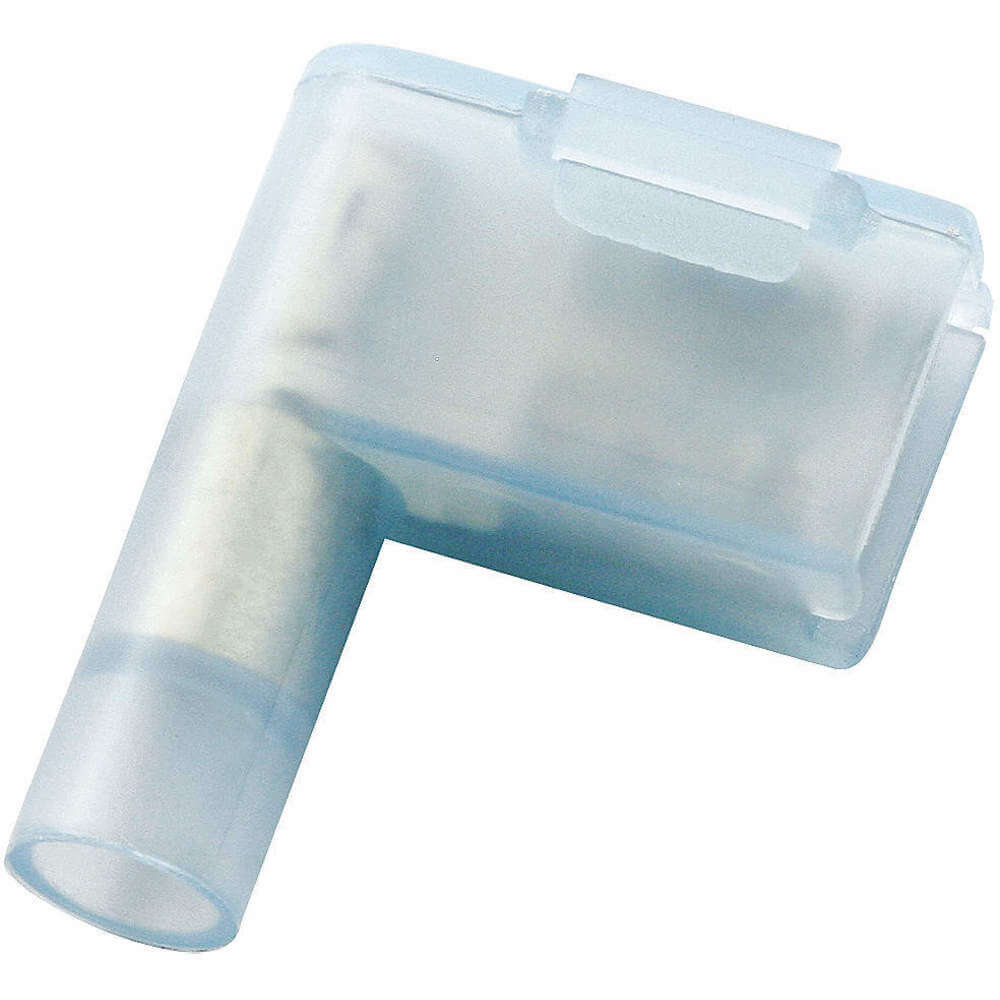

POWER FIRST 24C723 Flag Female Disc 16-14 Awg 0.82 Inch
Item: AB7VHTModel: 24C723
7 In Stock
Ships within 2 days via
10.00% off
€43.01 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Flag Disconnect |
| Barrel Inside Dia. | 0.087" , 0.177" |
| Barrel Outside Dia. | 0.177" |
| Barrel Size | Standard |
| Barrel Style | Crimp |
| Color Code | Blue |
| Connection Material | Tin Plated Brass |
| Connection Orientation | 90° Angled |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating | 15A |
| Disconnect Style | Tab |
| Flammability Rating | V-2 |
| Insulation | Full |
| Insulation Color | Blue |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 300V |
| Max. Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Overall Length | 0.819" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Standards | UL/CUL Listed |
| Strip Length | 1/4" |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Ul 94 Flammability Rating | V-2 |
| Wire Size | 16 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 7.37 |
| HS code | 8536904000 |
| Country of Origin | TW |
