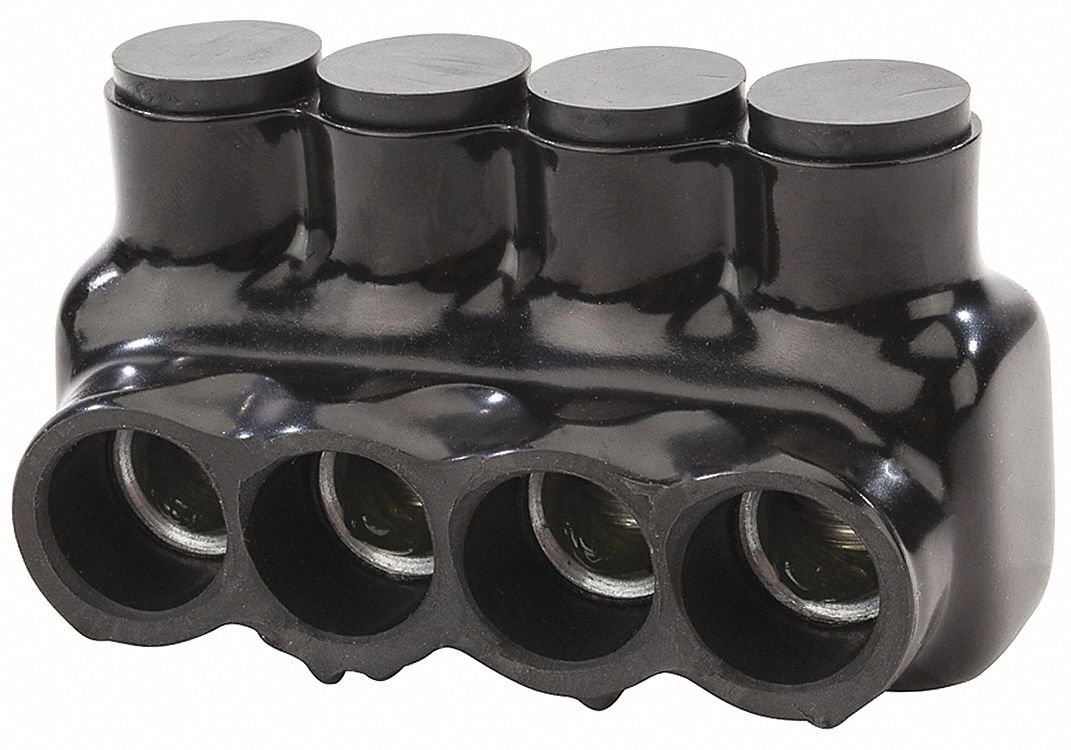

POLARIS IPL250-4B Insulated Connector 4 Ports 250 Kcmil
Item: AG4VGMModel: IPL250-4BCross Ref: 34UH89
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insulated Multitap Connector |
| Application | Wire Termination |
| Body Material | Aluminum |
| Color | Black |
| Compatible With Product Type | Copper And Aluminum Cables |
| Connector Type | Single Sided Entry |
| Direct Burial Rated | No |
| Finish | Plastisol |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 250 kcmil |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Green Certification Or Other Recognition | RoHS.png |
| Head Style | Hex |
| Head Type | Hex |
| Hex Size | 5/16" |
| Insulation Material | Plastisol |
| Length | 3.8 mm |
| Length (straight Wireway) | 3 4/5" |
| Material | Plastisol |
| Max. Conductor Size | 250 kcmil |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Min. Conductor Size | 6 AWG |
| Minimum Operating Temperature | -49°F |
| No. Of Ports | 4 |
| Number Of Conductors | 4 |
| Number Of Ports | 4 |
| Overall Length | 3.8" |
| Overall Width | 2.03" |
| Rohs Compliant | Yes |
| Screw Material | Aluminum |
| Special Features | Abrasion And Chemical Resistant, Eliminates The Need For Cover And Taping, Insulated With High-Dielectric Strength Plastisol, Molded For Precise Fit And Supplied With Removable Access Plugs Over The Hex Screws, UV Resistant, Will Not Support Combustion, Wire Entry Ports On One Side Only |
| Strip Length | 1 3/8" |
| Stud Size | 0.312" |
| Tap Shape | L |
| Torque | 360 lbs.-in. |
| Width | 2.03" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 5.84 |
| HS code | 8536308000 |
| Country of Origin | US |
Product Details:
- No. of Ports (4)
- Direct Burial Rated (No)
Product Variants
| Product | Model | Stud Size | Min. Conductor Size | Screw Material | Number Of Ports | Color | Strip Length | Number Of Conductors | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IPLG6-3B | 1/8" | 14 AWG | Aluminum | 3 | Gray | 11/16" | 3 | 1.55" | - | RFQ
|
 |
ISR-1/0B | 0.188" | 14 AWG | Aluminum | 2 | Black | 1 1/16" | 2 | - | €54.89 | |
 |
ISR-250B | 0.312" | 6 AWG | Aluminum | 2 | Black | 1 3/8" | 2 | 4" | €72.21 | |
 |
ISR-350B | 0.312" | 6 AWG | Aluminum | 2 | Black | 1 3/8" | 2 | 4.47" | €88.17 | |
 |
ISR-500B | 0.312" | 4 AWG | Steel | 2 | Black | 1 3/4" | 2 | 4.62" | €137.09 | |
 |
IPL1/0-3B | 0.188" | 14 AWG | Aluminum | 3 | Black | 1 1/16" | 3 | 2.24" | €64.06 | |
 |
IPLD3/0-3B | 1/4" | 6 AWG | Steel | 3 | Black | 1 1/8" | 3 | 2.63" | €84.08 |
