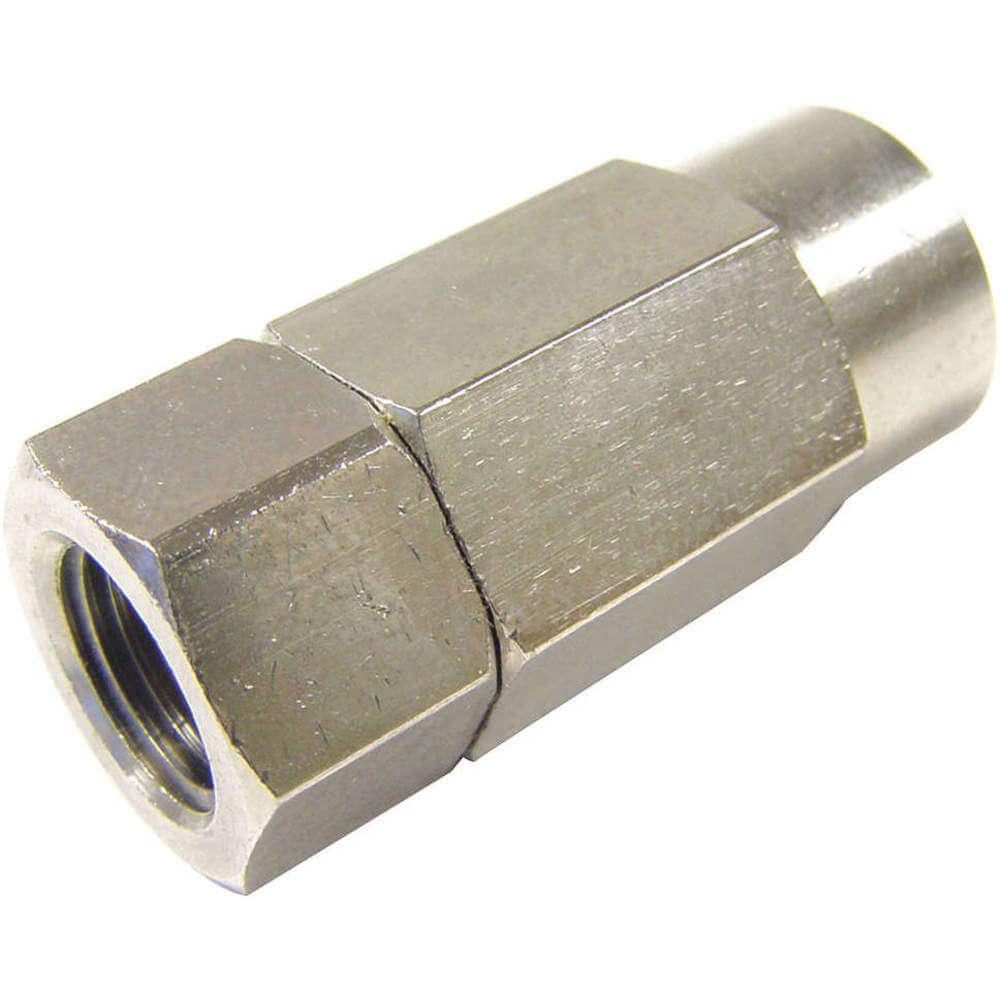

PNEUMADYNE INC C050501 Check Valve Brass 1/8 Npt
Item: AA6LHXModel: C050501Cross Ref: 14F301
7 In Stock
Ships within 2 days via
10.00% off
€13.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| 3-a Compliance | Not Rated |
| Body Material | Brass |
| Cap To Inlet Center | 5.438" |
| Cap To Inlet Center | 5-7/16" |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/8" |
| Connection Size - Side 2 | 1/8" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Flow Coefficient (cv) | 0.41 |
| Flow Rate | 31.5 SCFM |
| For Media | General Purpose |
| Height - Cap To Inlet Center | 5 7/16" |
| Hex Size | 9/16" |
| Material | Brass |
| Max. Pressure (cwp) | 125 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Temp. | 160°F |
| Media Temperature Range | -20°F to +160°F |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | -20°F |
| Overall Height | 1.328" |
| Overall Length | 1.31" |
| Pipe Size | 1/8" |
| Seal Material | Buna N |
| Seat Material | Brass, Nickel Plated Brass |
| Silent Check | Standard |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Width | 0.562" |
Shipping Info:
| Ship height (cm) | 1.27 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 1.27 |
| HS code | 8481301090 |
| Country of Origin | US |
Product Variants
| Product | Model | Pipe Size | Cracking Pressure | Overall Height | Flow Rate | Hex Size | Body Material | Connection Type | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C050401 | 3/8" | 0.1 psi | 0.812" | 9.5 SCFM | 5/16" | Brass | FNPT x FNPT | 160°F | €13.08 |
