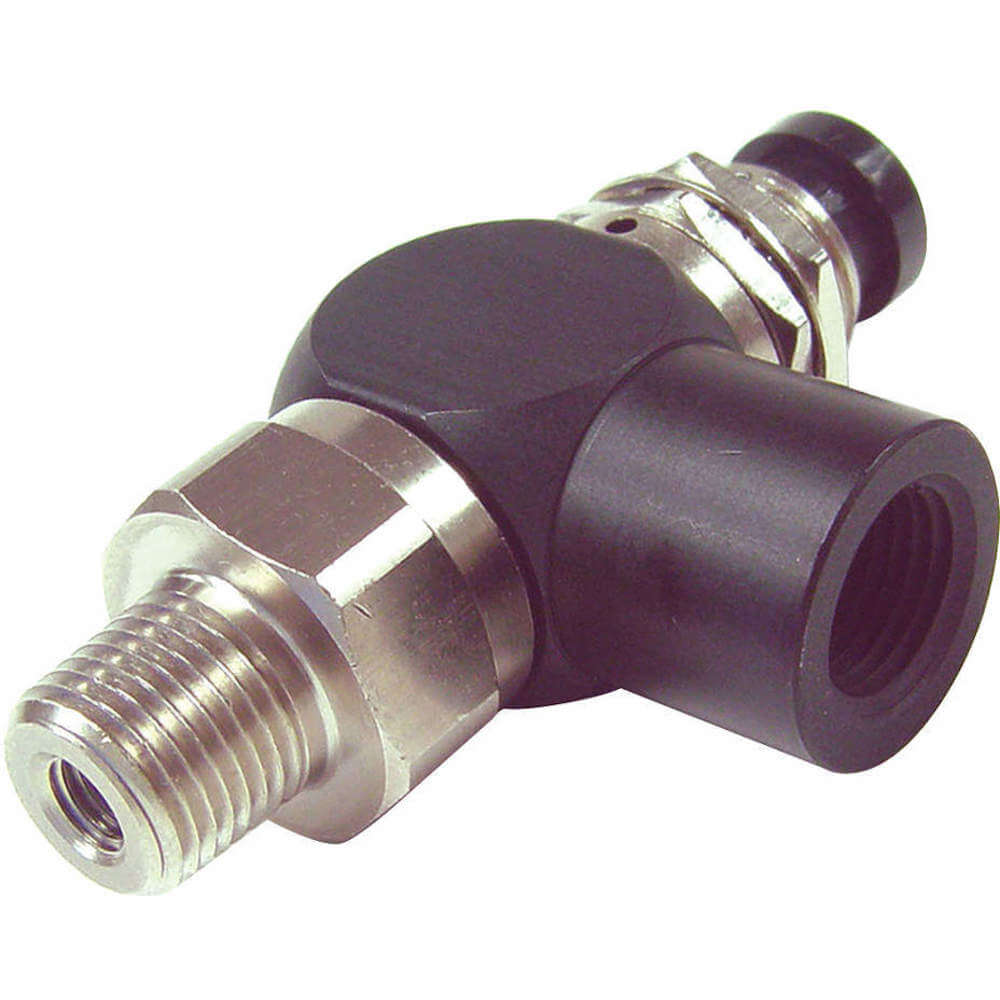

PNEUMADYNE INC A11-30-14 Control Valve 3-way 1/8 Inch Npt x 1/8in Fnpt
Item: AA6LGMModel: A11-30-14Cross Ref: 14F268
7 In Stock
Ships within 2 days via
5.00% off
€68.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuation Force @ 125 Psi | 7 lbs. |
| Actuation Force @ 50 Psi | 3.5 lbs. |
| Actuator Type | Button |
| Actuator/return | Button, Spring |
| Body Material | Aluminum, Brass |
| Center Position | Closed |
| Cfm | 22.1 CFM |
| Coefficient Of Volume | 0.3 |
| Coefficient Of Volume(cv) | 0.29 |
| Connection | NPT |
| Exhaust Port Connection Type | Unthreaded |
| Exhaust Time | 0.05 sec. |
| Fill Time | 0.01 sec. |
| Max. Flow Rate | 10.2 SCFM |
| Max. Operating Pressure | 125 psi |
| Max. Operating Temp. | 160°F |
| Max. Pressure | 125 psi |
| Min. Operating Pressure | 12.7 psi |
| Min. Operating Temp. | -20°F |
| No. Of Positions | 2 |
| No. Of Ways | 3 |
| Normally Open/normally Closed | Normally Closed |
| Overall Height | 1 1/8" |
| Overall Length | 2 1/16" |
| Overall Width | 1 1/8" |
| Pipe Size | 1/8" |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Buna N |
| Series | 11 Series |
| Temp. | -20°F to +160°F |
| Vacuum | Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/8" x 10-32 |
| Valve Port Connection Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.3 |
| HS code | 8481200070 |
| Country of Origin | US |
