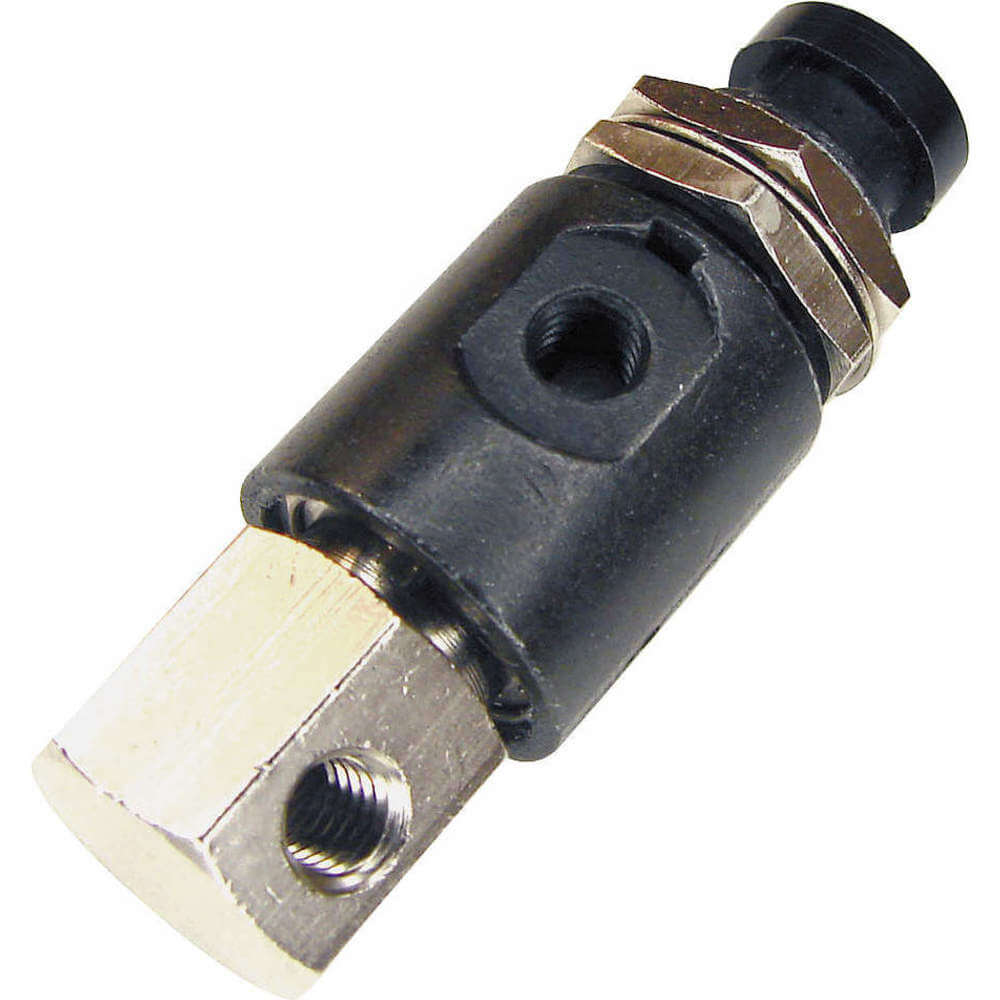

PNEUMADYNE INC A0-30-3 Control Valve 3-way Nc 10-32in F-tee
Item: AA6LGLModel: A0-30-3Cross Ref: 14F267
7 In Stock
Ships within 2 days via
10.00% off
€30.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuation Force @ 125 Psi | 5.5 lbs. |
| Actuation Force @ 50 Psi | 3 lbs. |
| Actuator Type | Button |
| Actuator/return | Button/Spring |
| Application | Plumbing |
| Body Material | Aluminum, Brass |
| Center Position | Closed |
| Cfm | 17.3 CFM |
| Coefficient Of Volume | 0.2 |
| Coefficient Of Volume (cv) | 0.24 |
| Exhaust Port Connection Type | Unthreaded |
| Exhaust Time | 0.06 sec. |
| Fill Time | 0.02 sec. |
| Max. Pressure | 125 psi |
| Maximum Flow Rate | 17.3 SCFM |
| Normally Open/normally Closed | Normally Closed |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 125 psi |
| Operating Pressure - Minimum | 12.7 psi |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | -20°F |
| Overall Height | 5/8" |
| Overall Length | 2 1/4" |
| Overall Width | 5/8" |
| Pipe Thread Size | #10-32 |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Buna-N |
| Series | O Series |
| Temp. Range | 160°F |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 10-32 |
| Valve Port Connection Type | Unf |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 4.57 |
| Ship width (cm) | 1.78 |
| HS code | 8481200070 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator/return | Connection | Cfm | Overall Length | Overall Width | Overall Height | Coefficient Of Volume | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A0-30-1 | Button/Spring | NPT | 17.3 CFM | 2 1/4" | 5/8" | 5/8" | 0.2 | Aluminum, Brass | €32.41 |
