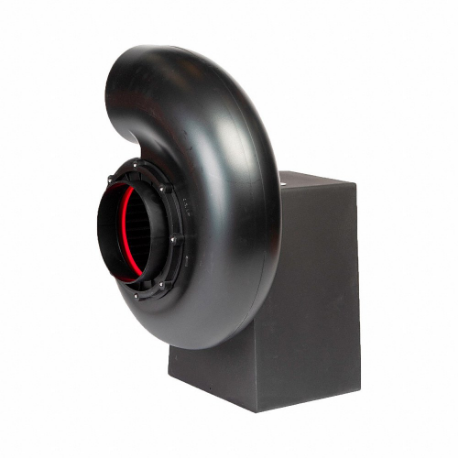

PLASTEC P30XT6P075 Blower, 11 7/8 Inch Wheel Dia, Direct Drive, Includes Drive Pack with Motor, 3/4 hp
Get it by Wednesday, Dec 24
10.00% off
€9,282.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower |
| Airflow @ 0.500-in. Sp | 1000 CFM |
| Airflow @ 0.750 In Sp | 1500 CFM |
| Airflow @ 1.000 In Sp | 1500 CFM |
| Airflow @ 1.250 In Sp | 1100 CFM |
| Amps | 2.8/1.4A |
| Assembled/unassembled | Fully Assembled |
| Assembly | Assembled |
| Bearing Type | Permanently Lubricated Ball, Sealed |
| Corrosion Resistance | Yes |
| Dba @ 5 Ft. | 44 dBA |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Drive Package With Motor Included | Yes |
| Drive Type | Direct Drive |
| For Air Type | Clean Air, Contaminated, Damp, Dirty And Dusty, Emergency Smoke Control, High Temperature, Spark Resistant |
| Frequency | 50/60 Hz |
| Hazardous Location Application | Yes |
| Housing Height | 35 1/2" |
| Housing Material | Plastic |
| Housing Width | 19 1/4" |
| Includes | Motor Mounting Base |
| Includes Mounting Hardware | Yes |
| Inlet Dia. | 9 3/4" |
| Inlet Diameter | 9 13/16" |
| Max. Ambient Temp. | -13°F |
| Max. Static Pressure | 1.5 in. wc |
| Maximum Fan Speed | 1140 RPM |
| Min. Ambient Temp. | -40°C |
| Minimum Ambient Temperature | -40°F |
| Minimum Fan Speed | 1140 RPM |
| Motor Enclosure Design | Explosion Proof |
| Motor Frame Designation | 90 |
| Motor Hp | 3/4 hp |
| Motor Speed | 1140 RPM |
| Mounting Hardware Included | Yes |
| Mounting Orientation | Multiposition |
| Number Of Discharge Positions | 2 |
| Number Of Inlet | 1 |
| Number Of Inlets | 1 |
| Oem Replacement | No |
| Outlet Dia. | 10 3/4" |
| Outlet Shape | Round |
| Outlet Type | Non Flanged |
| Overall Depth | 22 3/16" |
| Overall Height | 35 1/2" |
| Overall Width | 19 1/4" |
| Overload Thermal Protection | Yes |
| Phase | 3 |
| Rotation | CCW |
| Shaft Dia. | 24 mm |
| Sound Level | 44 dBA @ 5 Ft. |
| Spark Resistant Construction Type | A |
| Voltage | 230/460V AC |
| Wheel Dia. | 11 7/8" |
| Wheel Material | Plastic |
| Wheel Type | Forward Curve |
| Wheel Width | 6 1/2" |
Shipping Info:
| Ship weight (kg) | 37.8 |
| Ship height (cm) | 90.17 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 48.9 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Motor Hp | Inlet Dia. | Overall Height | Overall Width | Overall Depth | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P25ST4P050 | 230/460V AC | 3 | 1/2 hp | 7 3/4" | 29 15/16" | 18 1/4" | 18 9/16" | Totally Enclosed Fan Cooled | €2,510.74 | |
|
P25SS4P050 | 115/230V AC | 1 | 1/2 hp | 7 3/4" | 29 15/16" | 18 1/4" | 19 3/16" | Totally Enclosed Fan Cooled | €2,510.74 | |
 |
P25XS4P050 | 115/230V AC | 1 | 1/2 hp | 7 3/4" | 29 3/8" | 16 1/4" | 22" | Explosion Proof | €4,658.20 | |
|
P25ST2P300 | 230/460V AC | 3 | 3 hp | 7 3/4" | 29 15/16" | 18 1/4" | 21" | Totally Enclosed Fan Cooled | €3,431.60 | |
|
P25ST2P400 | 230/460V AC | 3 | 4 hp | 7 3/4" | 29 15/16" | 18 1/4" | 21" | Totally Enclosed Fan Cooled | €3,486.86 | |
 |
P25XT2P400 | 230/460V AC | 3 | 4 hp | 7 3/4" | 29 3/8" | 16 1/4" | 21 1/4" | Explosion Proof | €19,775.83 | |
|
P25XT4P050 | 230/460V AC | 3 | 1/2 hp | 7 3/4" | 29 3/8" | 16 1/4" | 20 15/16" | Explosion Proof | €4,435.79 |
