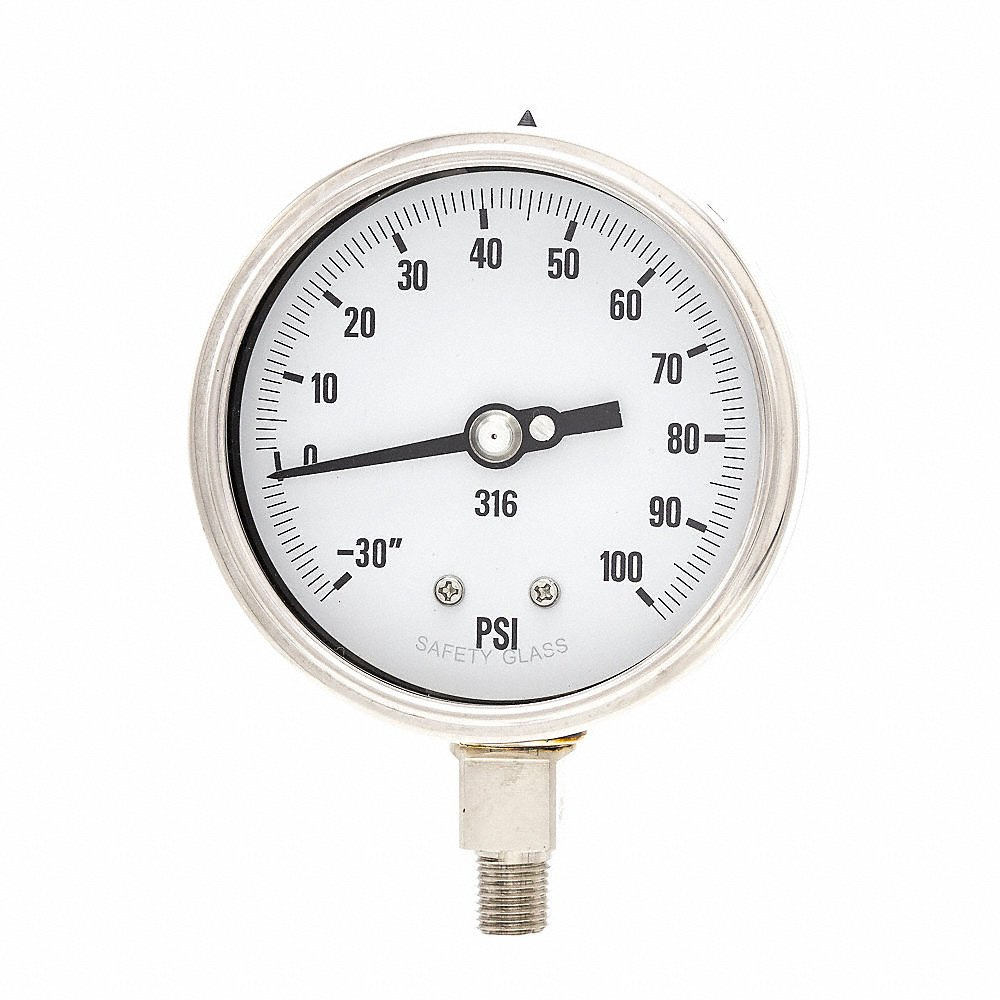

PIC GAUGES PRO-311D-404CE Compound Gauge, -30 to 0 to 100 in Hg/psi, 1/4 in MNPT, Stainless Steel, Silver
Item: DH2DDFModel: PRO-311D-404CECross Ref: 20TX15
7 In Stock
Ships within 2 days via
€167.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Accuracy Scale | Full Scale |
| Ambient Operating Temp. Range | -30°F to +180°F |
| Application | General Purpose |
| Basic Gauge Lens Material | Glass |
| Bezel Mounting Type | Removable |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Connection Location | Lower |
| Gauge Application | Process |
| Gauge Connection Type | MNPT |
| Gauge Primary Range Numbered Graduations | 30 ga., 10 ga. |
| Gauge Primary Range Smallest Graduation | 2 |
| Gauge Primary Range Units | In Hg/Psi |
| Gauge Primary Range Values | 30 ga., 0 ga., 100 ga. |
| Gauge Special Options | Heavy Duty |
| Graduations | 10 Psi, 30 In. Hg |
| Includes | Vent Plug |
| Ip/nema Rating | Not Rated |
| Length | 5.4 |
| Lens Material | Laminated Safety Glass |
| Lens Material Gauge | Safety Glass |
| Max. Pressure | 100 psi |
| Mounting Type | Stem Mount |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Compound Gauge |
| Pressure Type | Compound |
| Primary Scale Minor Graduations | 1, 2 |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Type | NPT |
| Scale Type | Single |
| Series | 4000 Series |
| Smallest Graduation | 1 psi |
| Vibration Resistance | Field Fillable |
| Wetted Parts Material Grade | Grade 316 |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 12.95 |
| Country of Origin | CN |
