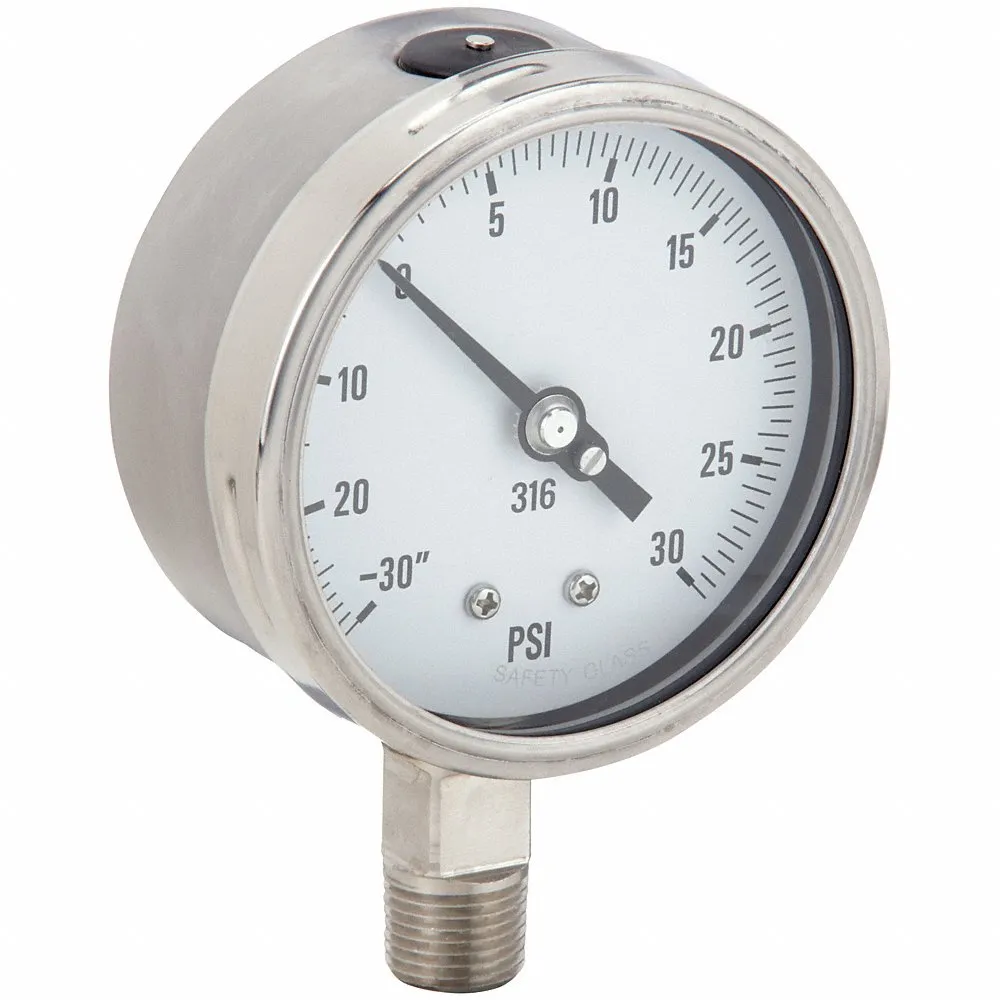

PIC GAUGES PRO-311D-402CC Industrial Compound Gauge, 30 to 0 to 30 Inch Hg/psi, 4 Inch Dial, 1/2 Inch NPT Male
Item: CW9AUBModel: PRO-311D-402CCCross Ref: 20TW90
7 In Stock
Ships within 2 days via
10.00% off
€177.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Accuracy | -1% to +1% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -30°F to +180°F |
| Application | General Purpose |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Removable |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Depth | 2.59" |
| Case Dia. | 4.02" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Lower |
| Dial Color | White |
| Dial Face Color | White |
| Dial Size | 4" |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Application | Process |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/2" |
| Gauge Nominal Dial Size | 4" |
| Gauge Panel Mountable | No |
| Gauge Special Options | Heavy Duty |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Includes | Vent Plug |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass , Laminated Safety Glass |
| Lens Material - Gauge | Safety Glass |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 1 yr. |
| Material Grade | Grade 316 |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 4" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Characteristics | Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Compound Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 30 in. hg to 0 in. hg to 30 in. hg |
| Pressure Range Type | Compound |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Units | In. Hg/psi |
| Process Connection | 1/2" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Process Connection Type | NPT |
| Removable Bezel | Yes |
| Required Gauge Adapter | No |
| Scale Type | Single |
| Sensor Material | 316 Stainless Steel |
| Series | 4000 Series |
| Socket Material | 316 Stainless Steel |
| Standards | Asme |
| Vibration Resistance | Field Fillable |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 10.21 |
| Ship length (cm) | 13.72 |
| Ship width (cm) | 6.58 |
| Country of Origin | CN |
