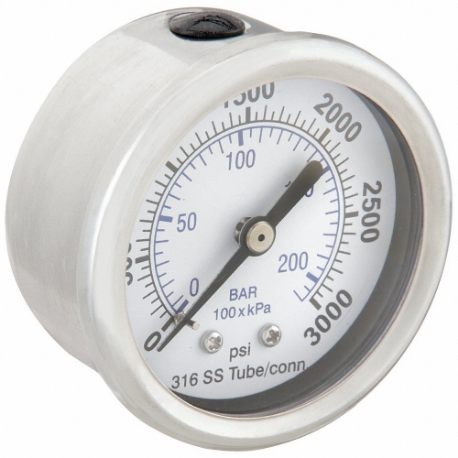

PIC GAUGES PRO-302D-204P-01 Industrial Pressure Gauge, 0 To 3000 Psi, 2 Inch Dial, Field-Fillable, 1/4 Inch Npt Male
Item: CT7TKHModel: PRO-302D-204P-01Cross Ref: 54XR03
7 In Stock
Ships within 2 days via
10.00% off
€36.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade A, ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -30°F to +180°F |
| Ambient Temp. Range | -30°F to +180°F |
| Application | General Purpose |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Center Back |
| Dial Color | White |
| Dial Face Color | White |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade A Industrial, Grade B Commercial |
| Gauge Case Color | Gray |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2" |
| Gauge Primary Range No.ed Graduations | 500 |
| Gauge Primary Range Units | Psi |
| Gauge Secondary Range Units | Bar |
| Gauge Special Options | Field Liquid Fillable |
| Gauge Wetted Parts | Stainless Steel |
| Graduations | 500 psi |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Plastic |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 1 yr. |
| Material Grade | Grade 316 |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 3000 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 3000 psi |
| Primary Scale Minor Graduations | 500 |
| Primary Scale Numeric Increments | 500 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 3000 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 207 Bar |
| Secondary Scale Units | Bar |
| Sensor Grade | Grade 316 |
| Sensor Material | Stainless Steel |
| Series | 300 Series |
| Socket Grade | Grade 316 |
| Socket Material | Stainless Steel |
| Vibration Resistance | Field Fillable |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316 |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Nominal Dial Size | Pressure Range Type | Process Connection Location | Vibration Resistance | Socket Material | Accuracy | Sensor Material | Liquid-filled Case | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PRO-201L-254CE | 2 1/2" | Compound | Bottom | Liquid Filled | Copper Alloy | +/-2-1-2% | Copper Alloy | Yes | €36.46 | |
 |
PRO-201L-254CB | 2 1/2" | Compound | Bottom | Liquid Filled | Copper Alloy | +/-2-1-2% | Copper Alloy | Yes | €42.27 | |
 |
PRO-202L-254CB | 2 1/2" | Compound | Center Back | Liquid Filled | Copper Alloy | +/-2-1-2% | Copper Alloy | Yes | €39.01 | |
 |
PRO-202L-254CF | 2 1/2" | Compound | Center Back | Liquid Filled | Copper Alloy | +/-2-1-2% | Copper Alloy | Yes | €39.01 | |
 |
PRO-202L-254CG | 2 1/2" | Compound | Center Back | Liquid Filled | Copper Alloy | +/-2-1-2% | Copper Alloy | Yes | €39.01 | |
 |
PRO-302D-158CC-01 | 1 1/2" | Compound | Center Back | Field Fillable | Stainless Steel | +/-2-1-2% | Stainless Steel | No | €39.36 | |
 |
PRO-301D-158CC-01 | 1 1/2" | Compound | Bottom | Field Fillable | Stainless Steel | +/-2-1-2% | Stainless Steel | No | €33.85 |
