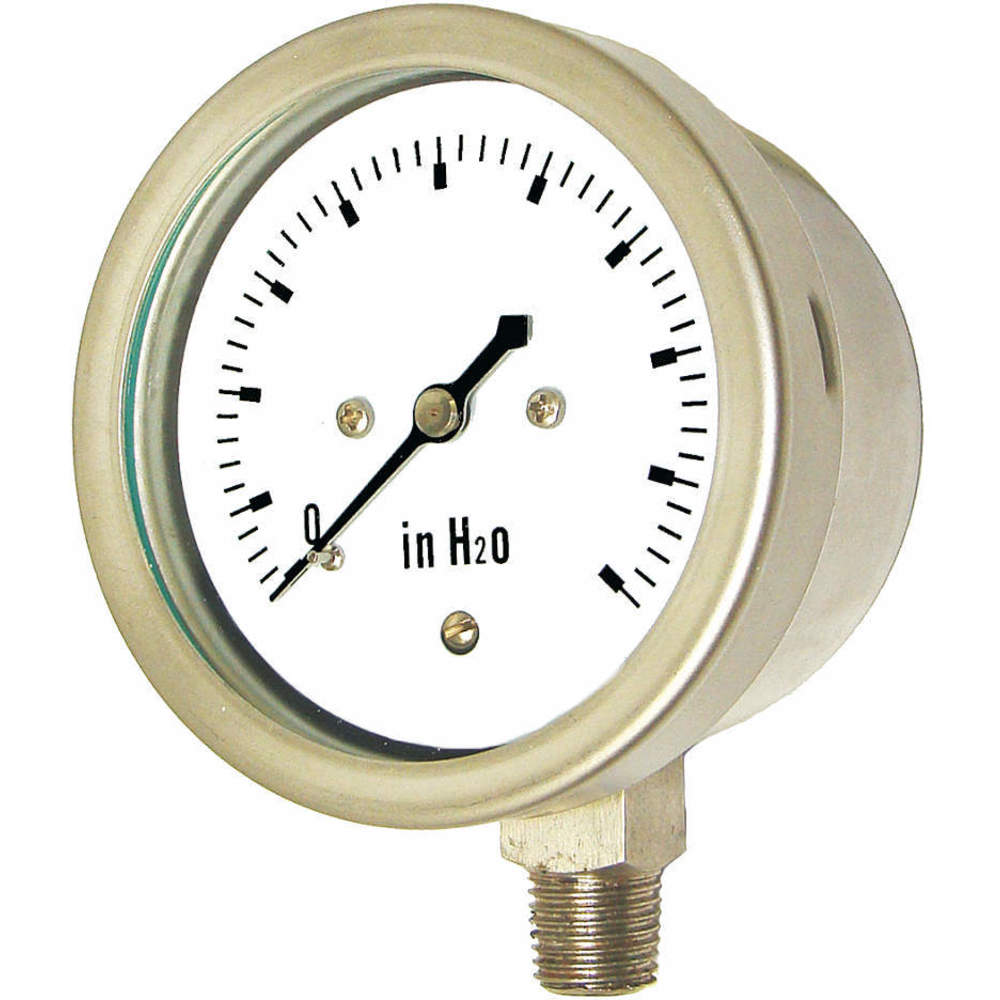

PIC GAUGES LP1-SS-402-100 Low Pressure Gauge Capsule
Item: AG9EHNModel: LP1-SS-402-100Cross Ref: 19RZ51
7 In Stock
Ships within 2 days via
€335.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-2-1-2% |
| Accuracy Grade | ASME B40.100 Grade A |
| Accuracy Scale | Mid Scale |
| Adjustable Pointer | No |
| Ambient Operating Temp. | -30°F to +180°F |
| Application | Industrial |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Removable |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Stainless Steel |
| Case Construction | Corrosion Resistant |
| Case Depth | 1.91" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Air, Gas, Oil, Water |
| Connection Location | LOWER |
| Connection Size | 1/2" |
| Dial Color | White |
| Dial Size | 4" |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade A Industrial |
| Gauge Application | For Natural Gas and Other Gases |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/2" |
| Gauge Nominal Dial Size | 4" |
| Gauge Primary Range Units | In Wc |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip/nema Rating | Nema Ip33 |
| Lens Material | Heavy Duty Glass |
| Lens Material Gauge | Glass |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Material Grade | Grade 316 |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 4" |
| Operating Temp. | -30°F to +180°F |
| Panel-mountable | No |
| Pointer Characteristics | Pointer Adjustable, Black Aluminum Adjustment Screw On Dial Face |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 in. wc to 100 in. wc |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Low Pressure Gauge |
| Pressure Type | Pressure |
| Primary Application | Low Pressure |
| Primary Pressure | 0 psi to 100 psi |
| Primary Scale Minor Graduations | 2 |
| Primary Scale Units | In Wc |
| Process Connection | 1/2" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Process Connection Type | NPT |
| Range | 0 in. wc to 100 in. wc |
| Removable Bezel | Yes |
| Scale Type | Single |
| Sensor Material | Stainless Steel |
| Sensor Type | Capsule |
| Series | LP1-SS Series |
| Smallest Graduation | 2 |
| Socket Material | Stainless Steel |
| Vibration Resistance | None |
| Wetted Material | Stainless Steel |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 4.85 |
| Country of Origin | CN |
Product Details:
- Gauge Accuracy : +/-2-1-2%
- Pressure and Vacuum Gauge Type : Pressure Gauge
- Liquid Filled : No
Product Variants
| Product | Model | Socket Material | Sensor Material | Pressure | Primary Pressure | Wetted Parts Material | Gauge Wetted Parts | Wetted Material | Basic Gauge Socket Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

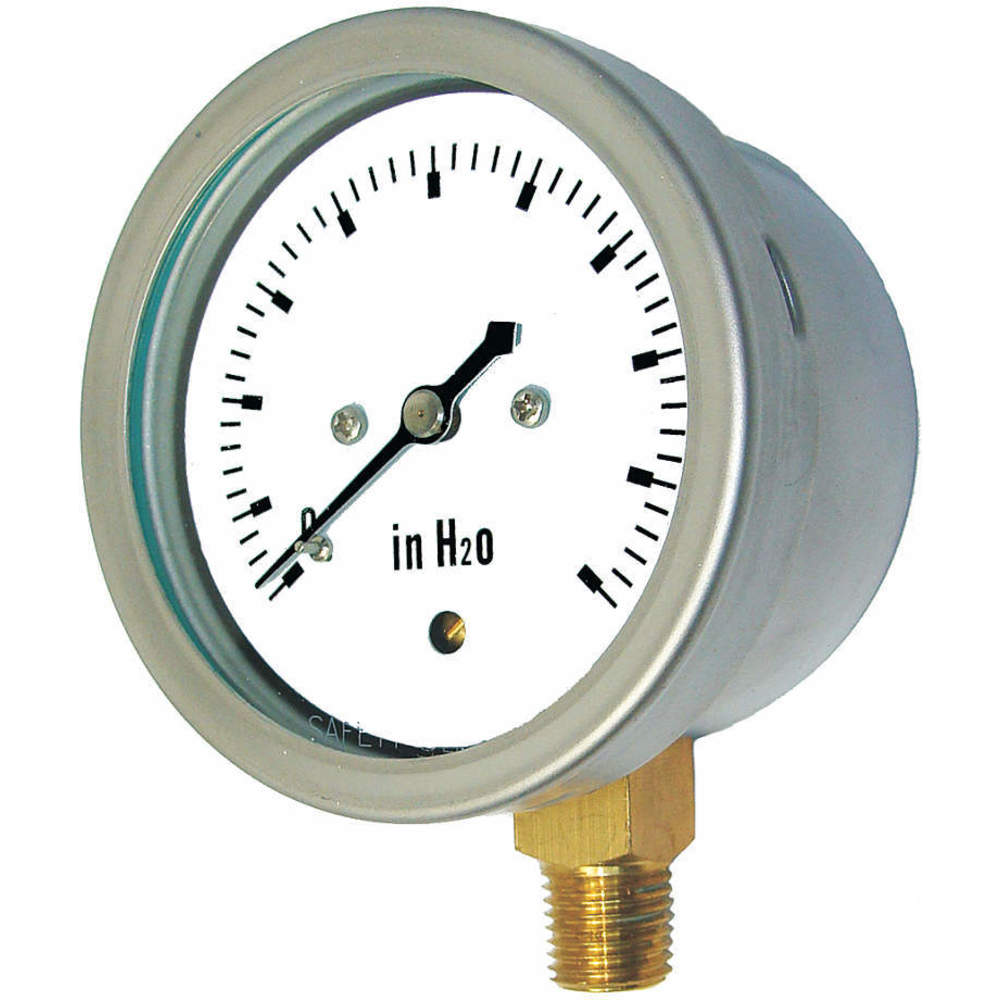

LP1-SB-402-10X17.5 | Copper | Copper Alloy | 0 oz. to 10 oz. | 0 psi to 10 psi | Copper Alloy | Copper | Copper | Copper | €201.83 | |
|
LP1-SS-402-20X35 | Stainless Steel | Stainless Steel | 0 oz. to 20 oz. | 0 to 20 | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | €335.15 |
