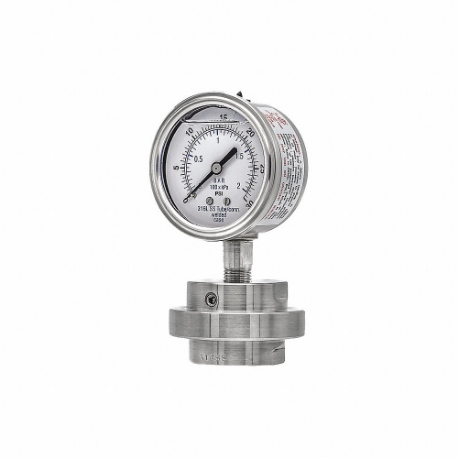

PIC GAUGES 301L254C/3JJJ100 Pressure Gauge With Diaphragm Seal, 0 To 30 Psi, 301L/3Jjj, 2 1/2 Inch Dial, Glycerin
Item: CT7TQLModel: 301L254C/3JJJ100Cross Ref: 54XN65
7 In Stock
Ships within 2 days via
10.00% off
€149.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Seal |
| Accuracy | +/-2-1-2% |
| Accuracy Grade | ASME B40.100 Grade A |
| Accuracy Scale | Mid Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | -30°F to +180°F |
| Ambient Temp. Range | -30°F to +180°F |
| Application | Added Durability |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Fixed |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Gray |
| Case Construction | Welded Joint |
| Case Depth | 1.39" |
| Case Dia. | 2.7" |
| Case Finish | None |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Clog Resistant | No |
| Compatible Process Media | Media Compatible With 316 Stainless Steel |
| Dial Color | White |
| Diaphragm Seal Type | Threaded |
| Dry Dampening Feature | Anti-Vibration Movement |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Polycarbonate |
| Manufacturer Warranty Length | 1 yr. |
| Material Grade | Grade 316 |
| Mfr. Series | 301L Series, 3JJJ Series |
| Mounting Type | Stem Mount |
| Movement Type | Anti Vibration |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Process Pressure Gauge With Diaphragm Seal |
| Pressure Range | 0 psi to 30 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Minor Graduations | 0.5 |
| Primary Scale Numeric Increments | 5.0 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +300°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Seal Compatible Process Grade | Grade 316 |
| Seal Compatible Process Material | Stainless Steel |
| Seal Compatible Process Media | Grade 316 Stainless Steel |
| Seal Diaphragm Grade | Grade 316 |
| Seal Diaphragm Material | Stainless Steel |
| Seal Diaphragm Material Grade | Grade 316 |
| Seal Fill Liquid | Glycerin |
| Seal Lower Housing Grade | Grade 316 |
| Seal Lower Housing Material | Stainless Steel |
| Secondary Pressure Range | 0 Bar to 2 Bar |
| Secondary Scale Units | Bar |
| Sensor Grade | Grade 316 |
| Sensor Material | Stainless Steel |
| Socket Material | Stainless Steel |
| Vibration Resistance | Field Fillable |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316 |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.53 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Range Type | Pressure Range | Vibration Resistance | Accuracy | Primary Scale Units | Gauge Case Liquid | Ambient Temp. Range | Secondary Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
301L254M/0JJJ100 | Pressure | 0 psi to 1000 psi | Liquid Filled | +/-2-1-2% | Psi | Glycerin | +30°F to +160°F | 0 Bar to 1000 Bar | €141.41 | |
 |
301L254M/0JJJ200 | Pressure | 0 psi to 1000 psi | Liquid Filled | +/-2-1-2% | Psi | Glycerin | +30°F to +160°F | 0 Bar to 1000 Bar | €135.07 | |
 |
301L254E/0JJJ100 | Pressure | 0 psi to 100 psi | Field Fillable | +/-2-1-2% | Psi | None | -30°F to +180°F | 0 Bar to 7 Bar | €141.41 | |
 |
301L254E/0JJJ200 | Pressure | 0 psi to 100 psi | Field Fillable | +/-2-1-2% | Psi | None | -30°F to +180°F | 0 Bar to 7 Bar | €135.07 | |
 |
301L254E/5JJJA00 | Pressure | 0 psi to 100 psi | Field Fillable | +/-2-1-2% | Psi | None | -30°F to +180°F | 0 Bar to 7 Bar | €210.74 | |
 |
301L254E/CPTP200 | Pressure | 0 psi to 100 psi | Field Fillable | +/-2-1-2% | Psi | None | -30°F to +180°F | 0 Bar to 7 Bar | €258.38 | |
 |
301L254B/3JJJ100 | Pressure | 0 psi to 15 psi | Field Fillable | +/-2-1-2% | Psi | None | -30°F to +180°F | 0 Bar to 1 Bar | €166.19 |
