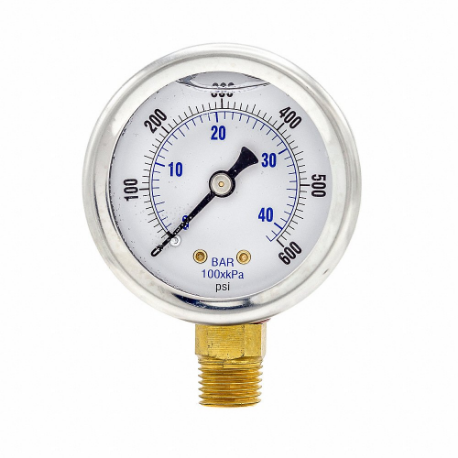

PIC GAUGES 201L-204K Industrial Pressure Gauge, 0 To 600 Psi, 2 Inch Dial, 1/4 Inch Npt Male, Dual
Item: CT7TNRModel: 201L-204KCross Ref: 20TU94
7 In Stock
Ships within 2 days via
€26.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | 30°F to 160°F |
| Ambient Temp. | +30°F to +160°F |
| Application | General Purpose |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Copper |
| Basic Gauge Socket Material | Copper |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Fixed |
| Blowout Safety Back | No |
| Case Color | Metallic |
| Case Construction | Stainless Steel |
| Case Depth | 1 1/5" |
| Case Dia. | 2.27" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | LOWER |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Hazardous Location Rating | Not Rated |
| Included | Vent Plug |
| Included Calibration Certificate | No |
| Included Mounting Hardware | No |
| Included Vent Plug | Yes |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mfr. Series | 201L Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2" |
| Non Sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 600 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Graduations | 10 |
| Primary Pressure | 0 psi to 600 psi |
| Primary Scale Minor Graduations | 10 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 600 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 41 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Smallest Graduation | 10 psi |
| Socket Material | Copper Alloy |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Copper Alloy |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 5.77 |
| Ship length (cm) | 7.49 |
| Ship width (cm) | 3.05 |
| Country of Origin | CN |
Product Variants
| Product | Model | Process Connection Location | Application | Nominal Dial Size | Primary Scale Units | Case Dia. | Connection Location | Accuracy Grade | Secondary Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
202L-204CC | Center Back | General Purpose | 2" | In. Hg/psi | 2 7/25" | Center Back | ASME B40.100 Grade B | 0 Bar to 2 Bar | €33.14 | |
 |
202L-158M | Center Back | General Purpose | 1 1/2" | PSI | 1.85" | Center Back | ASME B40.100 Grade B | 0 Bar to 69 Bar | €33.14 | |
 |
201L-204M | Bottom | General Purpose | 2" | PSI | 2.27" | LOWER | ASME B40.100 Grade B | 0 Bar to 69 Bar | €26.75 | |
 |
202L-204M | Center Back | General Purpose | 2" | PSI | 2 7/25" | Center Back | ASME B40.100 Grade B | 0 Bar to 69 Bar | €33.14 | |
 |
201L-208M | Bottom | General Purpose | 2" | PSI | 2.27" | LOWER | ASME B40.100 Grade B | 0 Bar to 69 Bar | €25.90 | |
 |
202L-208M | Center Back | General Purpose | 2" | PSI | 2 7/25" | Center Back | ASME B40.100 Grade B | 0 Bar to 69 Bar | €33.30 | |
 |
201L-158E | Bottom | General Purpose | 1 1/2" | PSI | 1.85" | LOWER | Grade B | 0 Bar to 7 Bar | €27.61 |
