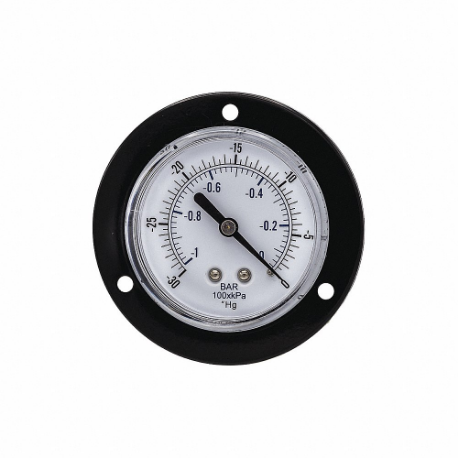

PIC GAUGES 104D-258A Panel-Mount Vacuum Gauge, Front Flange, 30 To 0 Inch Hg, 2 1/2 Inch Dial
Item: CT7TTZModel: 104D-258ACross Ref: 54XR05
7 In Stock
Ships within 2 days via
10.00% off
€16.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -50°F to +160°F |
| Ambient Temp. Range | -50°F to +160°F |
| Application | General Purpose |
| Bezel Finish | Chrome Plated , Steel |
| Bezel Mounting Type | Removable |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Depth | 1 3/25" |
| Case Dia. | 2 17/25" |
| Case Diameter | 2.68" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Center Back |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Flange Dia. | 3.47" |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/8" |
| Gauge Mounting Type | Front Flange |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Primary Range No.ed Graduations | 5 |
| Gauge Primary Range Units | Psi |
| Gauge Secondary Range Units | Bar |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Brass, Bronze |
| Graduations | 5 psi |
| Hazardous Location Rating | Not Rated |
| Includes | U-Clamp |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Plastic |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 1 yr. |
| Mfr. Series | 104D Series |
| Mounting Hardware Included | No |
| Mounting Type | Front Flange |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Panel-mountable | Yes |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 in. hg to 30 in. hg |
| Pressure Range Type | Vacuum |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Minor Graduations | 5 |
| Primary Scale Units | in. hg |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 1 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Brass |
| Socket Material | Copper Alloy |
| Standards | Asme |
| Vibration Resistance | None |
| Wetted Parts Material | Copper Alloy, Brass |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 6.81 |
| Ship length (cm) | 8.81 |
| Ship width (cm) | 2.84 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Range Type | Pressure Range | Nominal Dial Size | Panel-mountable | Mounting Type | Socket Material | Sensor Material | Primary Scale Units | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103D-254M | Pressure | 0 psi to 1000 psi | 2 1/2" | No | Stem Mount | Brass | Copper Alloy | Psi | €18.97 | |
 |
103D-204M | Pressure | 0 psi to 1000 psi | 2" | No | Stem Mount | Brass | Copper Alloy | Psi | €13.65 | |
 |
103D-208M | Pressure | 0 psi to 1000 psi | 2" | No | Stem Mount | Brass | Copper Alloy | Psi | €13.65 | |
 |
103D-208P | Pressure | 0 psi to 3000 psi | 2" | No | Stem Mount | Brass | Copper Alloy | Psi | €15.73 | |
 |
103D-258C | Pressure | 0 psi to 30 psi | 2 1/2" | No | Stem Mount | Brass | Copper Alloy | Psi | €17.29 | |
 |
103D-258H | Pressure | 0 psi to 300 psi | 2 1/2" | No | Stem Mount | Brass | Copper Alloy | Psi | €16.49 | |
 |
103D-258I | Pressure | 0 psi to 400 psi | 2 1/2" | No | Stem Mount | Brass | Copper Alloy | Psi | €14.86 |
