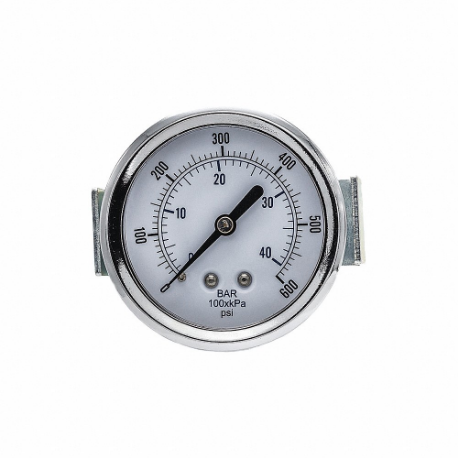

PIC GAUGES 103D-258K Industrial Pressure Gauge, U-Clamp, 0 To 600 PSI, 2 1/2 Inch Dial, 1/8 Inch Npt Male
Item: CT7TPQModel: 103D-258KCross Ref: 54XR10
7 In Stock
Ships within 2 days via
13.00% off
€12.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -50°F to +160°F |
| Ambient Temp. | -50°F to +160°F |
| Application | General Purpose |
| Bezel Finish | Chrome Plated , Steel |
| Bezel Mounting Type | Fixed |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Depth | 1.18" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Center Back |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/8" |
| Gauge Mounting Type | U-Clamp |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Primary Range No.ed Graduations | 100 |
| Gauge Primary Range Units | Psi |
| Gauge Secondary Range Units | Bar |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Graduations | 100 psi |
| Hazardous Location Rating | Not Rated |
| Included | U-Clamp |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Plastic |
| Lens Material Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mfr. Series | 103D Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 1/2" |
| Non Sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 600 psi |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 600 psi |
| Primary Scale Minor Graduations | 100 |
| Primary Scale Units | PSI |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Range | 0 psi to 600 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 41 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Socket Material | Brass |
| Vibration Resistance | None |
| Wetted Material | Copper Alloy |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 6.81 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3 |
| Country of Origin | CN |
Product Variants
| Product | Model | Socket Material | Sensor Material | Pressure | Process Connection Size | Nominal Dial Size | Process Connection | Pressure Type | Primary Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103D-254M | Brass | Copper Alloy | 0 psi to 1000 psi | 1/4" | 2 1/2" | 1/4" NPT Male | Pressure | 0 psi to 1000 psi | €15.81 | |
 |
103D-204M | Brass | Copper Alloy | 0 psi to 1000 psi | 1/4" | 2" | 1/4" NPT Male | Pressure | 0 psi to 1000 psi | €12.11 | |
 |
103D-208M | Brass | Copper Alloy | 0 psi to 1000 psi | 1/8" | 2" | 1/8" NPT Male | Pressure | 0 psi to 1000 psi | €12.11 | |
 |
103D-208P | Brass | Copper Alloy | 0 psi to 3000 psi | 1/8" | 2" | 1/8" NPT Male | Pressure | 0 psi to 3000 psi | €15.73 | |
 |
103D-258C | Brass | Copper Alloy | 0 psi to 30 psi | 1/8" | 2 1/2" | 1/8" NPT Male | Pressure | 0 psi to 30 psi | €15.72 | |
 |
103D-258H | Brass | Copper Alloy | 0 psi to 300 psi | 1/8" | 2 1/2" | 1/8" NPT Male | Pressure | 0 psi to 300 psi | €14.99 | |
 |
103D-258I | Brass | Copper Alloy | 0 psi to 400 psi | 1/8" | 2 1/2" | 1/8" NPT Male | Pressure | 0 psi to 400 psi | €13.27 |
