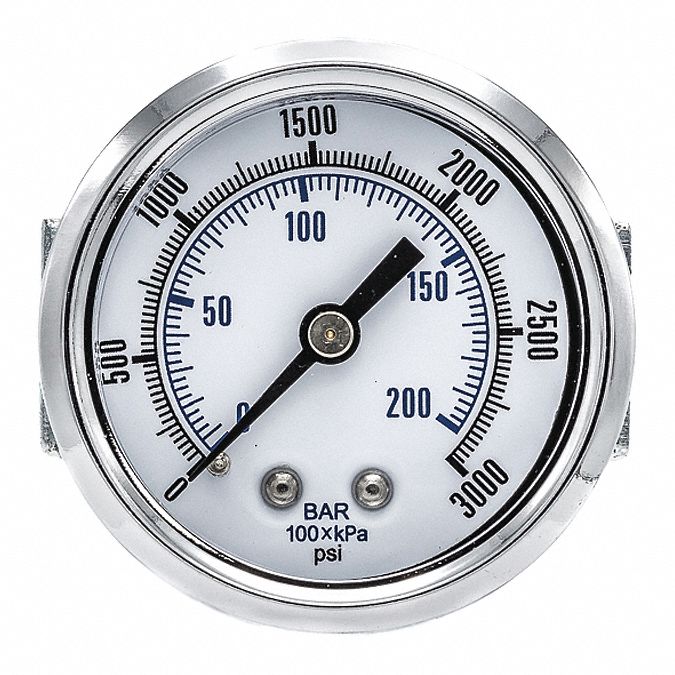

PIC GAUGES 103D-204P Pressure Gauge, 0 To 3000 Psi Range, 1/4 MNPT, +/-3-2-3% Gauge Accuracy
Item: CH6TFJModel: 103D-204PCross Ref: 54XN92
7 In Stock
Ships within 2 days via
€13.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -50°F to +160°F |
| Application | General Purpose |
| Bezel Material | Chrome Plated Steel |
| Bezel Mounting Type | Fixed |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Depth | 1.18" |
| Case Dia. | 2.31" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Center Back |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dial Size | 2" |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | U-Clamp |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Mounting Type | U-Clamp |
| Gauge Nominal Dial Size | 2" |
| Gauge Primary Range No.ed Graduations | 500 |
| Gauge Primary Range Units | Psi |
| Gauge Secondary Range Units | Bar |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Graduations | 500 psi |
| Hazardous Location Rating | Not Rated |
| Included | U-Clamp |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Plastic |
| Lens Material Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2" |
| Non Sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 3000 psi |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 3000 psi |
| Primary Scale Minor Graduations | 500 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 3000 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 207 |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Series | 103D Series |
| Socket Material | Brass |
| Vibration Resistance | None |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 5.87 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3 |
| Country of Origin | CN |
Product Variants
| Product | Model | Case Material | Lens Material | Socket Material | Case Color | Sensor Material | Pressure | Process Connection Size | Nominal Dial Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
201L-25XP-SAE | Stainless Steel | Plastic | Copper | Stainless Steel | Copper | - | - | - | €42.86 | |
 |
101D-158E | Stainless Steel | Plastic | Copper Alloy | Black | Copper Alloy | 0 psi to 100 psi | 1/8" | 1 1/2" | €8.65 | |
 |
102D-154G-GL | Stainless Steel | Plastic | Copper Alloy | Metallic | Copper Alloy | 0 psi to 200 psi | 1/4" | 1 1/2" | €10.99 | |
 |
103D-254P | Stainless Steel | Plastic | Brass | Metallic | Copper Alloy | 0 psi to 3000 psi | 1/4" | 2 1/2" | €14.29 | |
 |
PRO-301D-158M-01 | Stainless Steel | Polycarbonate | 316 Stainless Steel | Metallic | 316 Stainless Steel | 0 psi to 1000 psi | 1/8" | 1 1/2" | €31.95 | |
 |
SEP-101D-204S | Steel | Plastic | Copper Alloy | Black | Copper Alloy | 0 psi to 6000 psi | 1/4" | 2" | €12.86 | |
 |
SEP-102D-158I | Steel | Plastic | Copper Alloy | Black | Copper Alloy | 0 psi to 400 psi | 1/8" | 1 1/2" | €8.48 |
