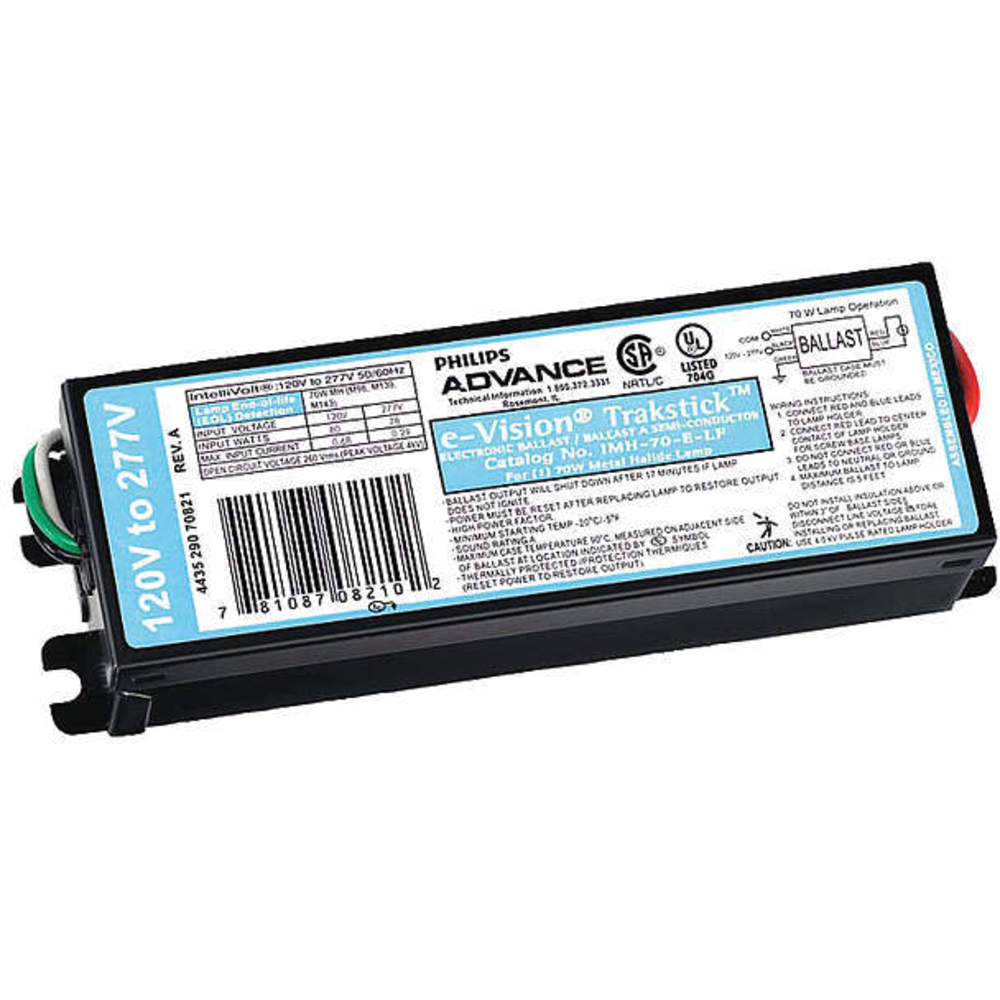

PHILIPS ADVANCE IMH-70-E-LF Hid Ballast Electronic 120/277v 70w
Item: AF9PUEModel: IMH-70-E-LFCross Ref: 30PL06
7 In Stock
Ships within 2 days via
10.00% off
€270.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | HID Ballast |
| Ansi Code | C98, C139, M1, M98, M139 |
| Ballast Bulb Type | Metal Halide |
| Ballast Factor | 1 |
| Ballast Family | E Vision |
| Ballast Lamp Type | Metal Halide |
| Ballast Start Type | Pulse |
| Ballast Type | Electronic |
| Bulb Wattage - Maximum | 70 W |
| Bulb Wattage - Minimum | 70 W |
| Figure Number | E |
| Fixture Ballast Type | Electronic |
| Green Certification Or Other Recognition | RoHS.png |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Height | 1 3/4" |
| Housing Material | Steel |
| Hz | 50/60 Hz |
| Input Voltage | 120/277V |
| Input Watts | 80 W |
| Lamp Type | Metal Halide |
| Lamp Watts | 70 W |
| Min. Starting Temperature | -4°F |
| Number Of Lamps | 1 |
| Operating Amps @ 120v | 0.68A |
| Operating Amps @ 120v | 0.68 |
| Operating Amps @ 208v | 0.46 |
| Operating Amps @ 208v | 0.46A |
| Operating Amps @ 240v | 0.38 |
| Operating Amps @ 240v | 0.38A |
| Operating Amps @ 277v | 0.28 |
| Operating Amps @ 277v | 0.28A |
| Operating Current @ 277v | 0.29A |
| Overall Height | 1 3/4" |
| Overall Length | 5 1/2" |
| Overall Width | 1 1/4" |
| Start Type | Pulse |
| Starter Required | No |
| Thermal Protection | Class P |
| Width | 1.703" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 28.19 |
| Ship width (cm) | 19.69 |
| HS code | 8504100000 |
Product Variants
| Product | Model | Hz | Thermal Protection | Height | Operating Amps @ 120v | Operating Amps @ 277v | Ansi Code | Input Voltage | Lamp Watts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IMH-70-G-LF | 60 Hz | Yes | 1.203" | 0.67A | 0.3A | C98, C139, M1, M98, M139 | 120/277V | 70 W | €299.25 | |
|
IMH-70-G-BLS | 60 Hz | Yes | 1.203" | 0.67A | 0.3A | C98, C139, M1, M98, M139 | 120/277V | 70 W | €306.35 | |
 |

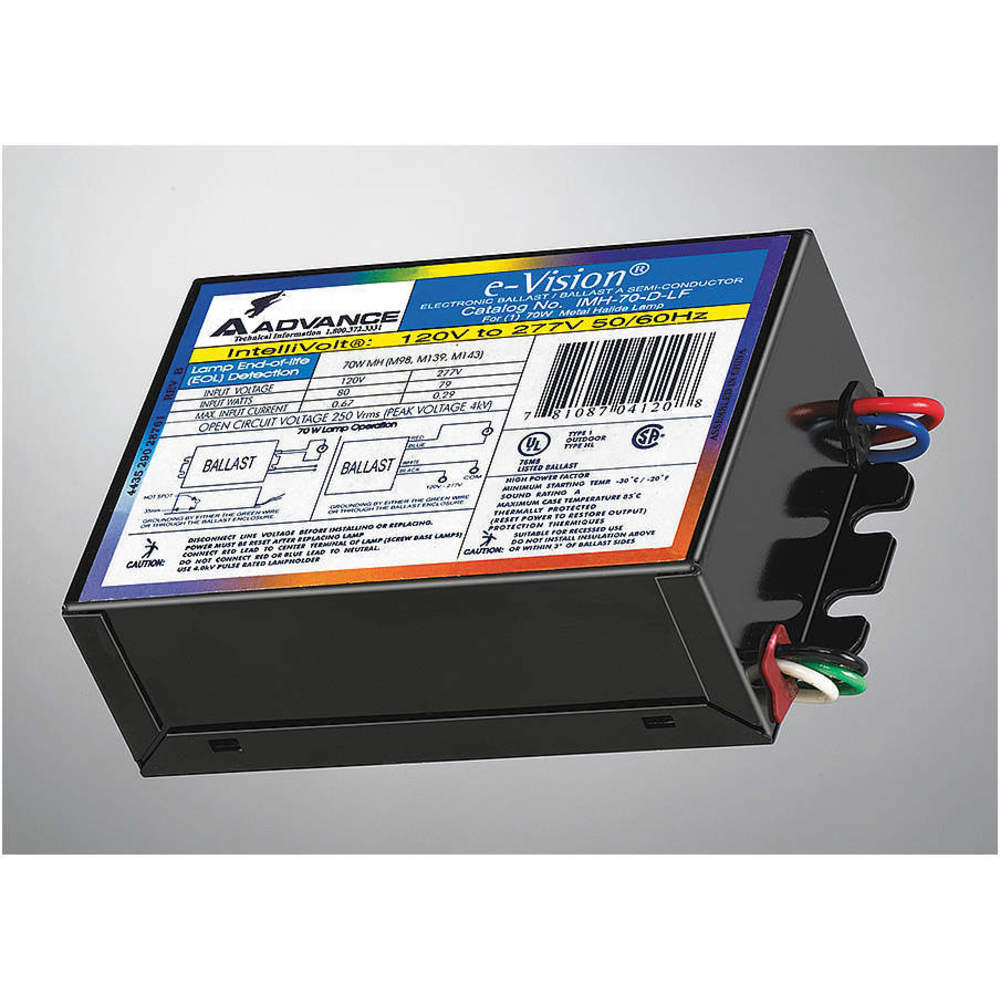

IMH-70-D-LF | 60 Hz | Class P | 3" | 0.67A | 0.29A | C98, C139, M1, M98, M139 | 120/277V | 70 W | €297.20 | |
 |

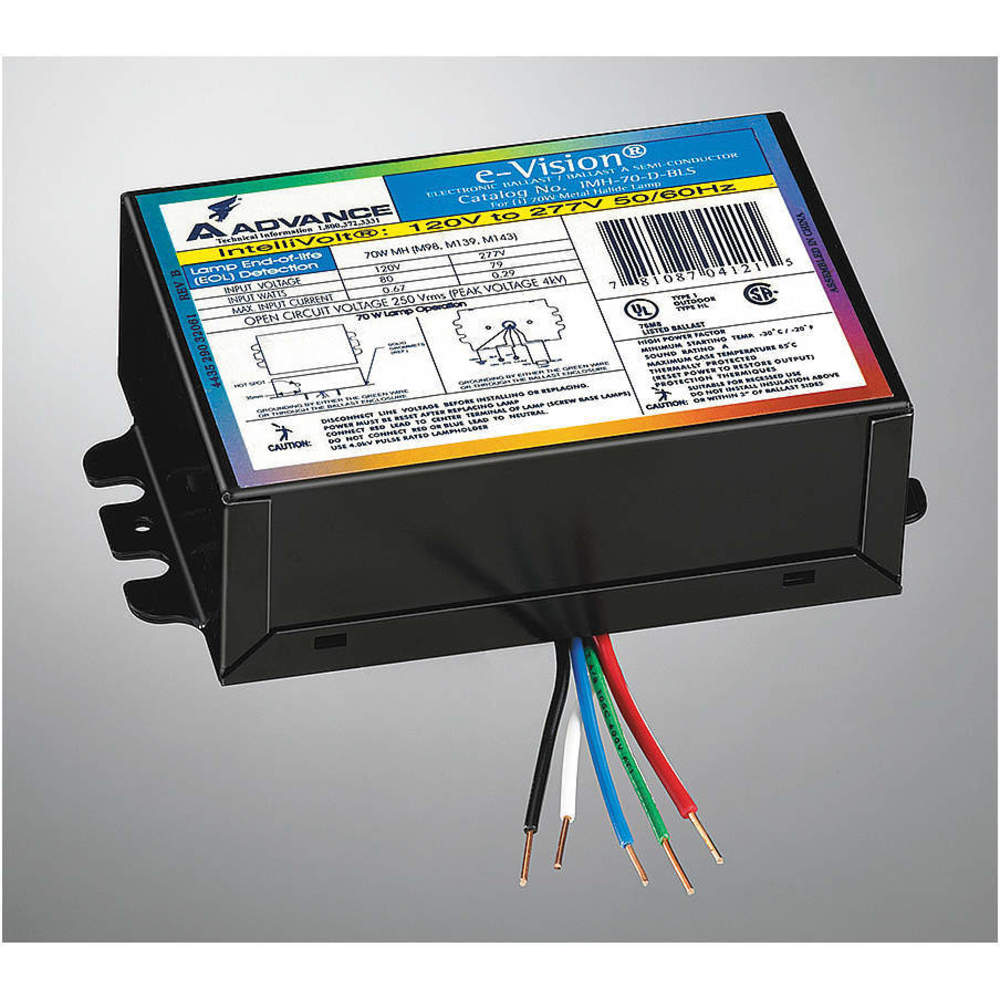

IMH-70-D-BLS | 60 Hz | Class P | 3" | 0.67A | 0.29A | C98, C139, M1, M98, M139 | 120/277V | 70 W | €297.20 |
