PHILIPS ADVANCE 71A6593-001 HID Ballast, Metal Halide, 120 To 277 VAC, Pulse Start Type, 1000W Lamp
Get it by Tuesday, Aug 25
5.00% off
€446.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HID Ballast |
| Ansi Code | M141 |
| Ballast Bulb Type | Metal Halide |
| Ballast Factor | 1 |
| Ballast Family | Hid Magnetic |
| Ballast Lamp Type | Metal Halide |
| Ballast Start Type | Pulse |
| Ballast Type | Magnetic |
| Dimensions A | 3 1/8" |
| Dimensions B | 5 1/8" |
| Frequency | 60 Hz |
| Height | 4 5/16" |
| Housing Material | Steel |
| Included | Capacitor, Coil, Core, Hardware, Mounting Bracket |
| Input Voltage | 120/208/240/277V AC |
| Input Watts | 1080 W |
| Insulation Class | Class H |
| Lamp Type | Metal Halide |
| Lamp Watts | 1000 W |
| Length | 6" |
| Max. Bulb Watts | 1000 W |
| Min. Bulb Watts | 1000 W |
| Min. Starting Temp. | -20°F |
| No. Of Bulbs Supported | 1 |
| No. Of Lamps | 1 |
| Operating Amps @ 120v | 9 |
| Operating Amps @ 120v | 9A |
| Operating Amps @ 208v | 5.2 |
| Operating Amps @ 208v | 5.2A |
| Operating Amps @ 240v | 4.5 |
| Operating Amps @ 240v | 4.5A |
| Operating Amps @ 277v | 3.9 |
| Operating Amps @ 277v | 3.9A |
| Operating Amps @ 480v | 2.3A |
| Overall Height | 4 5/16" |
| Overall Length | 6" |
| Overall Width | 4 1/2" |
| Start Type | Pulse |
| Starter Required | No |
| Thermal Protection | No |
| Width | 4 1/2" |
Shipping Info:
| Ship weight (kg) | 10.28 |
| Ship height (cm) | 12.45 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 19.81 |
| HS code | 8504100000 |
| Country of Origin | MX |
Product Details:

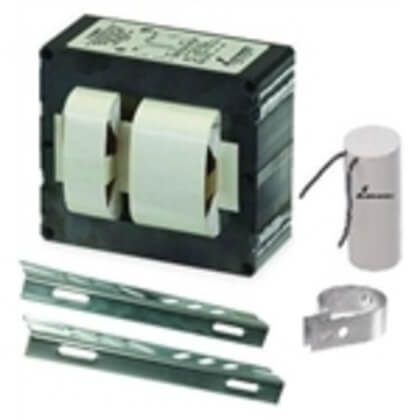

- Includes: Oil Filled Capacitor and Bracket Kit
Product Variants
| Model | Height | Operating Amps @ 120v | Lamp Watts | Input Watts | Operating Amps @ 277v | Ballast Type | Ansi Code | Ballast Family | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 71A6071-001D | 4 13/16" | 4A | 400 W | - | 1.75A | Magnetic | M59 | Hid Magnetic | €227.34 | |
| 71A6572-001 | 3 7/8" | 9A | 1000 W | 1080 W | 3.9A | Magnetic | M47 | Hid Magnetic | €336.64 | |
| 71A6552-001 | 4 3/8" | 9A | 1000 W | 1080 W | 4.1A | Magnetic | M47 | Hid Magnetic | €486.63 | |
| 71A5492-001D | 2 7/8" | 1.6A | 150 W | 185 W | 0.7A | Magnetic | M102/M142 | Hid Magnetic | €306.76 | |
| 71A5750-001D | 4 7/16" | 2.6A | 250 W | 290 W | 1.1A | Magnetic | M58 | Hid Magnetic | €304.34 | |
| 71A6051-001D | 4 7/16" | 4.1A | 400 W | 460 W | 1.7A | Magnetic | M59 | Hid Magnetic | €360.76 | |
| 71A5771-001D | 3 3/4" | 2.6A | 250 W | 294 W | 1.1A | Magnetic | M58 | Hid Magnetic | €268.26 |
