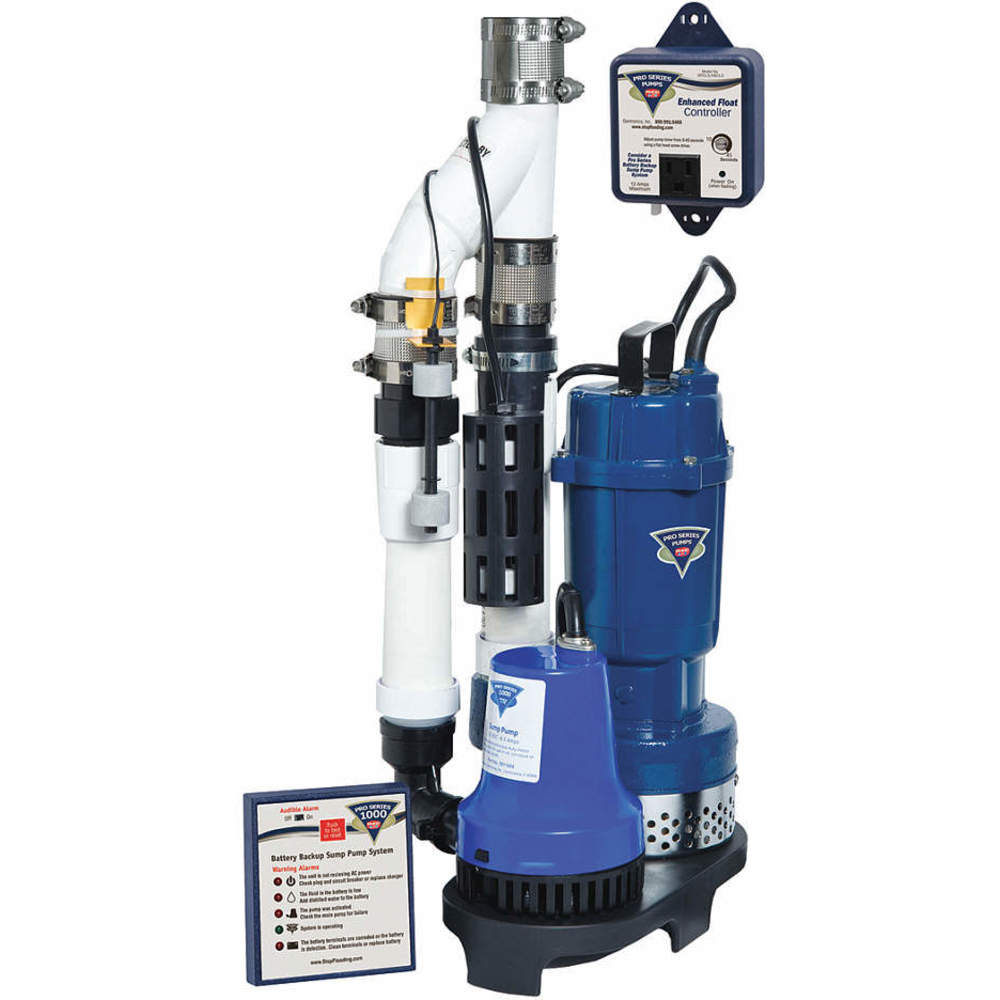

PRO SERIES SUMP PUMPS PS-C11 Sump/battery Backup System 6.5 Amp Backup
Get it by Thursday, Dec 18
10.00% off
€928.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sump/Battery Back-Up Combination System |
| 12vdc Battery Charger | 0.4 Amps |
| Alarm Application | Indoor |
| Alarm Included | Yes |
| Amps | 3.8A |
| Base Material | ABS, Steel |
| Body Material | Cast Aluminum, ABS, Cast Iron |
| Cord Length | 10 ft. |
| Discharge Npt | 1 1/2" |
| Duty Cycle | Continuous, Intermittent |
| Flow Rate @ 0 Ft. | 4100/2500 GPM |
| Flow Rate @ 10 Ft. | 46.2/16.7 GPM |
| Flow Rate @ 15 Ft. Of Head | 43/1.7 GPM |
| Flow Rate @ 20 Ft Of Head | 29 GPM |
| Flow Rate @ 20 Ft. | 29 GPM |
| Flow Rate @ 5 Ft. | 50/23.6 GPM |
| Gph Of Water @ 0 Ft. Of Head | 4100 (Primary); 2000 (Secondary) |
| Gph Of Water @ 10 Ft. Of Head | 2770 (Primary); 1000 (Secondary) |
| Gph Of Water @ 15 Ft. Of Head | 2580 (Primary) 100 (Secondary) |
| Gph Of Water @ 5 Ft. Of Head | 3000 (Primary); 1420 (Secondary) |
| Height | 22 1/4" |
| Housing Material | ABS, Die Cast Aluminum, Cast Iron |
| Hp | 1/3 hp, 1/4 hp |
| Impeller Material | ABS, Cast Iron |
| Includes | 2 Pumps, Battery Box, Battery Fill Bottle, Monitoring Controller |
| Length | 11" |
| Max. Flow Rate | 2000 GPH |
| Max. Flow Rate @ 15 Ft. | 43/1.7 GPM |
| Max. Head | 29 ft., 15 ft. |
| Max. Liquid Temp. | 104°F |
| Max. Solid Dia. | 1/5" |
| Min. Sump Pit Dia. | 12" |
| Motor Type | Permanent Split Capacitor, Brushed DC |
| Off Point | 10 Sec. After The Float Drops Which Normally Empties The Pit, 30 Sec. |
| On Point | 8 3/4" |
| Outlet | 1 1/2" Fnpt |
| Outlet Size | 1 1/2" |
| Outlet Type | FNPT |
| Overall Height | 22 1/4" |
| Seal Material | Buna N |
| Shaft Material | Stainless Steel |
| Shaft Seal Material | Carbon Ceramic, Rulon |
| Shaft Seal Material - Pumps | Carbon, Ceramic |
| Switch Actuation | Dual Micro Reed |
| Switch Electrical Connection | Piggyback |
| Switch Type | Caged Automatic Dual Float |
| Top Material | Cast Aluminum, ABS |
| Voltage | 115V AC |
| Width | 8 7/8" |
| Width At Widest Point | 8 7/8" |
Shipping Info:
| Ship weight (kg) | 16.8 |
| Ship height (cm) | 66.04 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 45.72 |
| HS code | 8413702004 |
| Country of Origin | TW |
Product Details:
- Amps - Back-Up (6.5)
- Voltage - Back-Up (12VDC)
