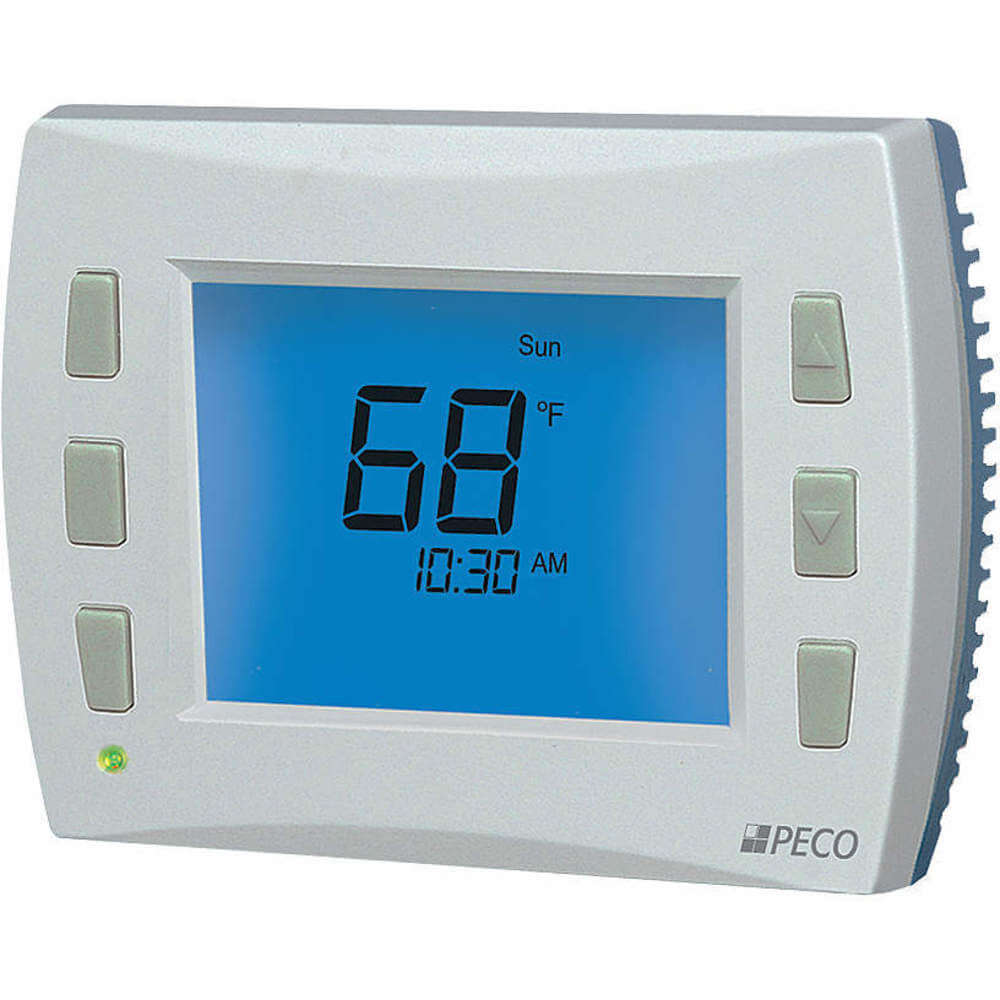

PECO CONTROL SYSTEMS T8532-IAQ Thermostat Digital Programmable Multistage
Item: AE8TMQModel: T8532-IAQCross Ref: 6FFW7
7 In Stock
Ships within 2 days via
10.00% off
€280.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Low Voltage Thermostat |
| Application | Heat And Cool |
| Backlit Screen | Yes |
| Backlit Screen Color | Blue |
| Batteries Included | Yes |
| Battery Backup | Yes |
| Battery Type | (2) AA Batteries |
| Changeover Type | Automatic And Manual |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump With Aux, Heat Pump Without Aux |
| Contact Rating | 20-30V AC |
| Control Range | +50°F to +90°F |
| Control Type | Push Button |
| Dehumidification Control | Yes |
| Depth | 1.312" |
| Differential Type | Fixed |
| Digit Size | Easy Read |
| Display Color | Blue |
| Display Size | 8 sq. in. |
| Display Type | Digital |
| Dual Transformer Compatible | Yes |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto-On |
| Fan Switching | Auto-On |
| Filter Change Reminder | Yes |
| Frequency | 50/60 Hz |
| Housing Color | White |
| Humidification Control | Yes |
| Includes | Mounting Hardware |
| Includes Positive Off | Yes |
| Key Features | A Pin Access Code, Accessed Using Soft Keys, Sd Card |
| Key Pad Lockout | Yes |
| Low Battery Indicator | Yes |
| Maximum Control Temperature | 90°F |
| Maximum Operating Humidity | 99% |
| Maximum Operating Temperature | 120°F |
| Millivolt Compatible | No |
| Minimum Control Temperature | 50°F |
| Minimum Operating Humidity | 25% |
| Minimum Operating Temperature | 0°F |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Mounting Type | Surface Mount |
| Number Of Cooling Stages - Conventional System | 2 |
| Number Of Cooling Stages - Heat Pump System | 2 |
| Number Of Heating Stages - Conventional System | 3 |
| Number Of Heating Stages - Heat Pump System | 4 |
| Number Of Zones | 5 |
| Occupancy Sensor | Includes Occupancy Sensor |
| Occupancy Sensor Compatibility | 2NCC2, 2NCC8 |
| Overall Depth | 1 5/16" |
| Overall Height | 4 5/16" |
| Overall Width | 5 11/16" |
| Power Method | Hardwired/Battery/Power-Stealing |
| Programming Capability | 5-1-1, 5-2, 7 Days |
| Programs Per Week | 7, 5-2, 5-1-1, Or Non Programmable |
| Programs Per Week | 7, 5-2, 5-1-1, or Nonprogrammable |
| Remote Sensing Capability | Yes |
| Screen Height | 3 1/4" |
| Screen Width | 2 1/2" |
| Sensor Location | Remote |
| Shape | Rectangle |
| Smart Connectivity | No Connectivity |
| Stages Conventional | 3 H/2 C Conventional |
| Stages Heat | 3 |
| Stages Heat Pump | 4 H/2 C Heat Pump |
| Stages Heating/cooling | 3 H/2 C Conventional, 4 H/2 C Heat Pump |
| System Settings | Auto Cool Emergency Heat Heat Off |
| System Switching | Auto-Heat-Cool-Off-Aux-Setback |
| Temp. Control Range | +50°F to +90°F |
| Temp. Settings Per Day | 4, 2, 1, 0 |
| Temperature Differential | 1°F |
| Temperature Limiting | Yes |
| Temperature Readout | Yes |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Settings Per Day | 0, 1, 2, 4 |
| Temporary Program Override | Yes |
| Temporary Temperature Hold | Yes |
| Terminal Designations | A, C, E, G, Rc, Rh, S1, S2, S3, Sc, W1 (B/O), W2 (Aux), Y1, Y2 |
| Thermostat Type | Low Voltage |
| Voltage | 20-30V AC |
| Width | 5.719" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 33.58 |
| Ship length (cm) | 26.44 |
| Ship width (cm) | 19.61 |
| HS code | 9032100030 |
| Country of Origin | CN |
Product Details:
- 750mV Compatible (No)
- Automatic Changeover (Yes)
- Dehumidification Control (Yes)
- Dual Transformer Compatible (Yes)
- Filter Indicator (Yes)
- Humidification Control (Yes)
- Low Battery Indicator (Yes)
- Programmable Fan (Yes)
- Stages Cool (2)
- Temperature Limiting (Yes)
- Temporary Temperature Hold (Yes)
Product Variants
| Product | Model | Overall Width | Voltage | Dehumidification Control | Humidification Control | Number Of Zones | Contact Rating | Display Type | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
T8532-001 | 5 3/4" | 20/30V AC | No | No | 6 | 24V AC | Digital | Heat And Cool | €220.08 |
