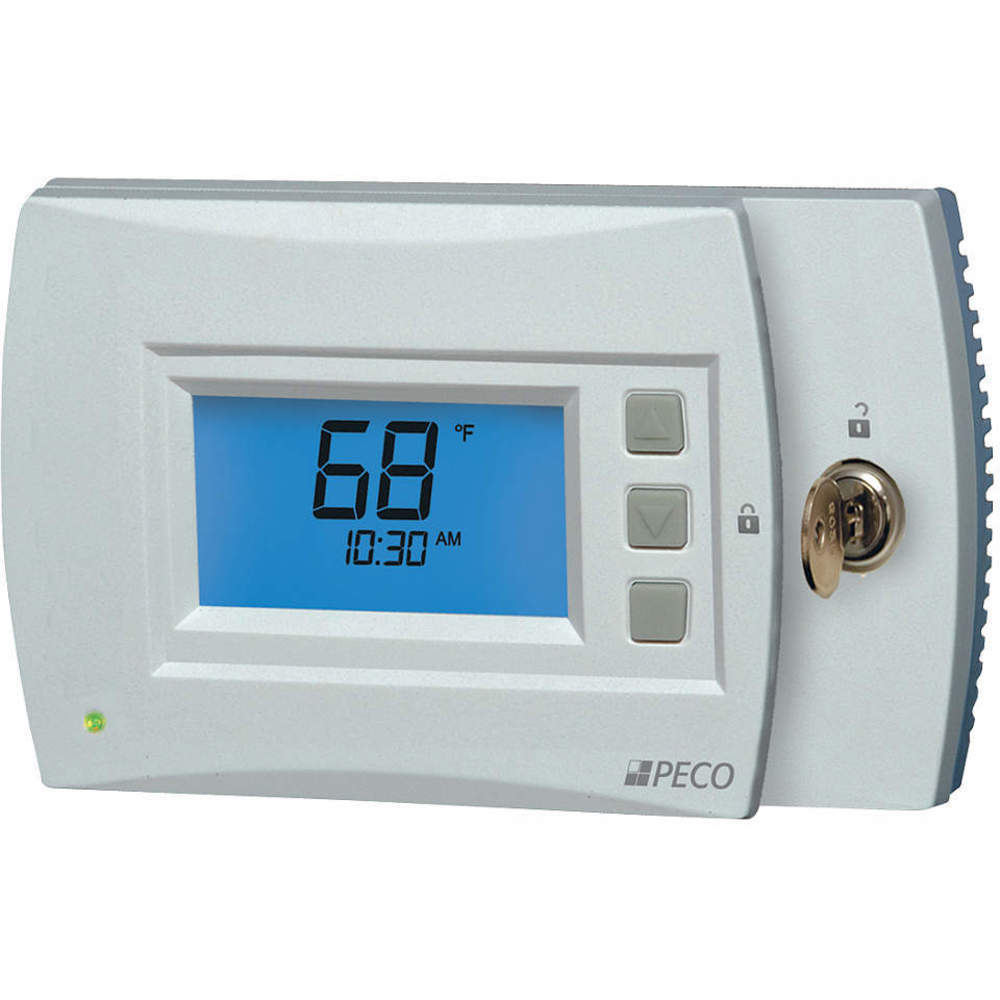

PECO CONTROL SYSTEMS T4932SCH-002 Low Voltage Thermostat Stages Heat 3 Stages Cool 2
Item: AH2HQVModel: T4932SCH-002Cross Ref: 29AT96
7 In Stock
Ships within 2 days via
13.00% off
€194.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Low Voltage Thermostat |
| Agency Compliance | ASHRAE.png 90.1-9, California Title 24 |
| Application | Heat And Cool |
| Backlit Screen | Yes |
| Backlit Screen Color | Blue |
| Batteries Included | Yes |
| Battery Backup | Yes |
| Battery Type | (2) AA Batteries |
| Changeover Type | Automatic And Manual |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump With Aux, Heat Pump Without Aux |
| Contact Rating | 20-30V AC |
| Control Range | +50°F to +90°F |
| Control Type | Push Button |
| Dehumidification Control | Yes |
| Depth | 1.312" |
| Differential Type | Fixed |
| Digit Size | Easy Read |
| Display Color | Blue |
| Display Size | 4 sq. in. |
| Display Type | Digital |
| Dual Transformer Compatible | Yes |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto-On |
| Fan Switching | Auto-On |
| Filter Change Reminder | Yes |
| Frequency | 50/60 Hz |
| Housing Color | White |
| Humidification Control | Yes |
| Included | Mounting Hardware |
| Included Positive Off | Yes |
| Key Features | 4 Secure Digital Card Interface, Heat/Cool Demand Indicator, Inputs For Occupancy/ Remote Sensors, Locking Cover |
| Key Pad Lockout | Yes |
| Low Battery Indicator | Yes |
| Max. Control Temp. | 90°F |
| Max. Operating Temp. | 120°F |
| Millivolt Compatible | No |
| Min. Control Temp. | 50°F |
| Min. Operating Temp. | 0°F |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Mounting Type | Surface Mount |
| No. Of Cooling Stages (conventional System) | 2 |
| No. Of Cooling Stages (heat Pump System) | 2 |
| No. Of Heating Stages (conventional System) | 3 |
| No. Of Heating Stages (heat Pump System) | 4 |
| No. Of Zones | 2 |
| Occupancy Sensor | Includes Occupancy Sensor |
| Occupancy Sensor Compatibility | 2NCC2, 2NCC8 |
| Overall Depth | 1 5/16" |
| Overall Height | 4 5/8" |
| Overall Width | 7 1/2" |
| Power Method | Hardwired/Battery |
| Programming Capability | 5-1-1, 5-2, 7 Days |
| Programs Per Week | 7 |
| Remote Sensing Capability | Yes |
| Screen Height | 1 1/2" |
| Screen Width | 2 3/4" |
| Sensor Location | Remote |
| Shape | Rectangle |
| Smart Connectivity | No Connectivity |
| Stages Conventional | 3 H/2 C Conventional |
| Stages Heat | 3 |
| Stages Heat Pump | 4 H/2 C Heat Pump |
| Stages Heating/cooling | 3 H/2 C Conventional, 4 H/2 C Heat Pump |
| System Settings | Auto Cool Emergency Heat Heat Off |
| System Switching | Auto-Heat-Cool-Off-Emergency |
| Temp. Control | +50°F to +90°F |
| Temp. Differential | 1°F |
| Temp. Limiting | Yes |
| Temp. Readout | Yes |
| Temp. Scale | Fahrenheit, Celsius |
| Temp. Settings Per Day | 4 |
| Temp. Settings Per Day | 4 , 4.0 |
| Temporary Program Override | Yes |
| Temporary Temp. Hold | Yes |
| Terminal Designations | A, C, E, G, Rc, Rh, S1, S2, S3, Sc, W1 (B/O), W2 (Aux), Y1, Y2 |
| Thermostat Type | Low Voltage |
| Voltage | 20-30V AC |
| Width | 5.719" |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 23.11 |
| Ship width (cm) | 12.95 |
| Country of Origin | CN |
Product Details:
- Automatic Changeover : Yes
- Dual Transformer Compatible : Yes
- 750mV Compatible : No
- Stages Cool : 2
- Programmable Fan : Yes
- Humidification Control : Yes
- Dehumidification Control : Yes
- Temporary Temperature Hold : Yes
- Filter Indicator : Yes
- Temperature Limiting : Yes
- Low Battery Indicator : Yes
- WiFi Capability : No
