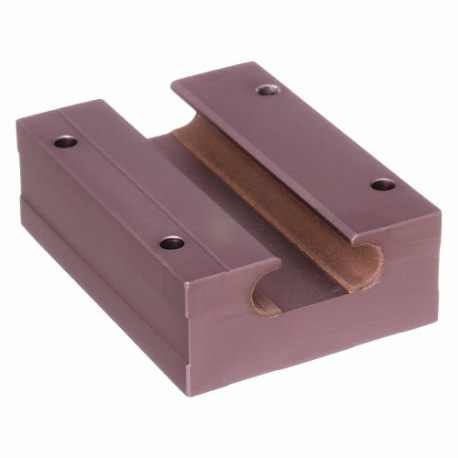

PBC LINEAR MRC20C PBC Mini Rail Carriage, MiniRail, Miniature Compensated Carriage, 20 mm Rail Width mm
Item: CT3LDCModel: MRC20CCross Ref: 2CRR1
7 In Stock
Ships within 2 days via
5.00% off
€132.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Carriage |
| Bearing Retention | Bearings Retained |
| Bearing Type | Plain |
| Carriage Finish | Anodized |
| Carriage Height | 21.2 mm |
| Carriage Length | 62 mm |
| Carriage Material | Aluminum |
| Carriage Type | Sliding |
| Carriage Width | 46 mm |
| Dynamic Load Capacity | 1350 lbf. |
| For Rail Width | 20 mm |
| For Use With | Mini-Rail Slides |
| Linear Guide Design | Miniature Compensated Carriage |
| Max. Load Axial | 578N |
| Max. Load Radial | 3559N |
| Max. Operating Temp. | 400°F |
| Max. Pv | 20000 lbs.-sq. in. |
| Max. Speed | 60 in./sec. |
| Min. Operating Temp. | 400°F |
| No. Of Rail Holes | 4 |
| Overall Height | 25 mm |
| Requires Lubrication | Lubricant Not Required |
| Roller Finish | Ceramic Coated |
| Roller Material | Aluminum |
| Roller Type | Slider |
| Series | MR Series |
| Size | 20 |
| Slide Height | 25 mm |
| Static Load Capacity | 800 lbf. |
| Type | Mini Rail Series Plain Carriage |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Height | Max. Operating Temp. | Min. Operating Temp. | Overall Length | Overall Width | Size | Mounting Hole Center To Center | Mounting Hole From Shaft End | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MR07R-1000 | 6.1 mm | 400°F | -400°F | 1000 mm | 7 mm | 7 | 15 mm | 8 mm | €299.42 | |
 |
MR15R-0670 | 9.2 mm | 248°F | 0°F | 670 mm | 15 mm | 15 | 40 mm | 20 mm | €183.51 | |
|
MR09R-0500 | 7.1 mm | 400°F | -400°F | - | 9 mm | 9 | - | 10 mm | €149.70 | |
|
MR7R-0130 | - | 248°F | 0°F | 130 mm | 7 mm | 7 | 15 mm | 8 mm | €38.32 | |
 |
MR12R-0120 | 8 mm | 248°F | 0°F | 120 mm | 12 mm | 12 | 25 mm | 13 mm | €34.02 | |
 |
MR12R-0220 | 8 mm | 248°F | 0°F | 220 mm | 12 mm | 12 | 25 mm | 13 mm | €60.70 | |
|
MR12R-0320 | 8 mm | 248°F | 0°F | 320 mm | 12 mm | 12 | 25 mm | 13 mm | €87.81 |
