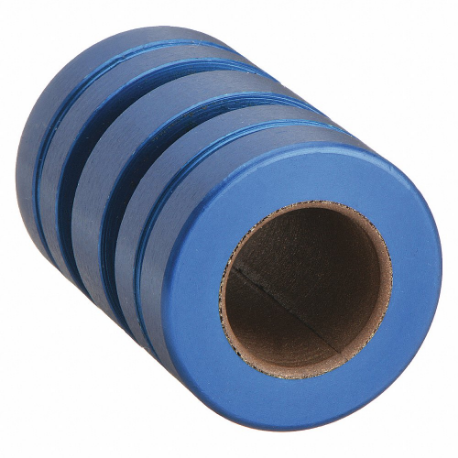

PBC LINEAR FM20 Pbc Standard Linear Bearing, 20 mm Inside Dia, Precision
Item: CR9MVYModel: FM20Cross Ref: 2CPE6
7 In Stock
Ships within 2 days via
5.00% off
€61.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Standard Linear Bearing |
| Bearing Type | Closed |
| Between Grooves | 10 mm |
| Color | Blue |
| For Use With | Linear Motion Shafts |
| Inside Dia. | 20 mm |
| Inside Dia. Tolerance | -0.001 to +0.001 , 0.009 mm to 0.096 mm |
| Length | 45 mm |
| Liner | Frelon Gold |
| Lubrication | Self Lubricating |
| Lubrication Type | Self Lubricating |
| Material | Aluminum |
| Max. Operating Temp. | 400°F |
| Max. Pv | 20000 lbs.-ft./sq. in-min. |
| Mfr. Series | SIMPLICITY |
| Min. Working Temp. | 0°F |
| Operating Temp. | -400°F to +400°F , 0°F to +400°F |
| Outside Dia. | 32 mm |
| Outside Dia. Tolerance | -0.001 to +0.001 , 0.003 mm to 0.008 mm |
| Running Clearance Class | Precision |
| Series | FM Series |
| Shell Material | Aluminum |
| Static Load Capacity | 18541N |
| System Of Measurement | Metric |
| Type | Closed |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.2 |
| Ship length (cm) | 4.5 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Outside Dia. | Static Load Capacity | Color | Inside Dia. Tolerance | Outside Dia. Tolerance | Max. Pv | Type | Liner | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FL12 | 1 1/4" | 3810 lbf. | Red | 0.0006" to 0.0003" | 0.009" to 0.05" | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €61.62 | |
|
FL16 | 1 5/8" | 7050 lbf. | Red | 0.0046" to 0.0003" | 0.0003" to 0.0003" | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €113.92 | |
 |
FL24 | 2 3/8" | 14100 lbf. | Red | 0.0059" to 0.0044" | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €222.25 | |
 |
FL08 | 7/8" | 1950 lbf. | Red | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €53.63 | |
|
FL04 | 1/2" | 600 lbf. | Red | -0.001 to +0.001 | +0.009" | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €52.10 | |
 |
FL20 | 2" | 10830 lbf. | Red | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €176.19 | |
 |
FM16 | 26 mm | 11870N | Blue | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €58.88 |
