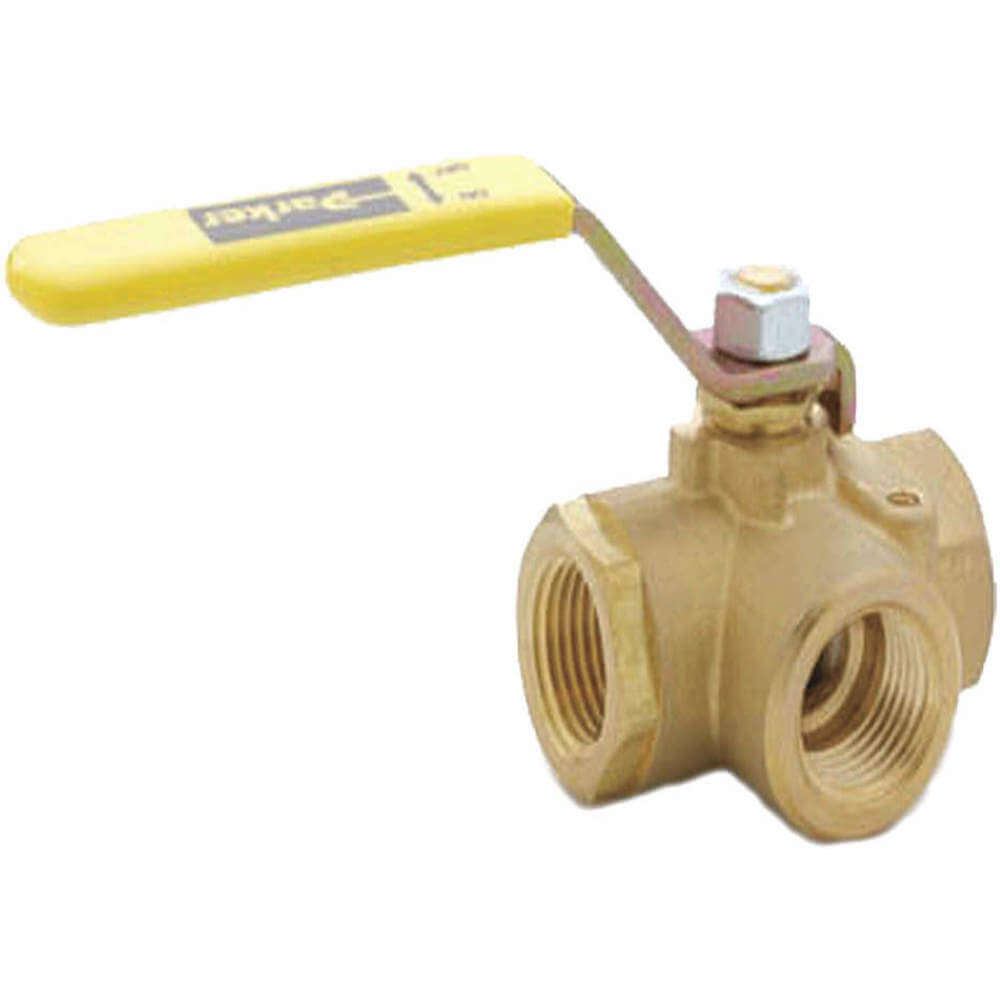

PARKER XV533P-6 Ball Valve 3/8 Inch 3-way Brass
Item: AF6ZDDModel: XV533P-6Cross Ref: 20RH41
7 In Stock
Ships within 2 days via
5.00% off
€167.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Flow Pattern | L Flow |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Height | 1.94" |
| Handle Length | 3.96" |
| Handle Material | Steel |
| Handle Type | Lever |
| Handle-locking | Non Locking |
| Included Mounting | Base Pad |
| Inlet | 3/8" FNPT x FNPT x FNPT |
| Inlet Connection Entry | Side |
| Inlet Connection Height | 1.08" |
| Max. Media Temp. | 350°F |
| Max. Pressure | 400 psi |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 400 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp. | -20°F to +350°F |
| Min. Media Temp. | -20°F |
| No. Of Pieces | 2 |
| No. Of Ways | 3 |
| Nominal Valve Size | 3/8" |
| Outlet 1 | 3/8" FNPT |
| Outlet 2 Size | 3/8" |
| Outlet 2 Type | FNPT |
| Overall Length | 4.99" |
| Pipe Size | 3/8" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. | -200°F to +350°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Construction | Two-Piece |
| Valve Series | 533 |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 6.27 |
| Ship length (cm) | 12.67 |
| Ship width (cm) | 4.17 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Variants
| Model | Ball Port Style | Nominal Valve Size | Handle Height | Ball Finish | Inlet Connection Height | Inlet | Outlet 1 | Outlet 2 Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XV533P-4 | Full Port | 1/4" | 1.94" | Chrome Plated | 1.08" | 1/4" FNPT x FNPT x FNPT | 1/4" FNPT | 1/4" | €145.84 | |
| XV533P-8 | Full Port | 1/2" | 1.98" | Chrome Plated | 1.18" | 1/2" FNPT x FNPT x FNPT | 1/2" FNPT | 1/2" | €109.45 | |
| XV533P-12 | Standard Port | 3/4" | 2.17" | Chrome Plated | 1.43" | 3/4" FNPT x FNPT x FNPT | 3/4" FNPT | 3/4" | €211.27 | |
| XV533P-16 | Standard Port | 1" | 2.32" | Chrome Plated | 1.62" | 1" FNPT x FNPT x FNPT | 1" FNPT | 1" | €416.09 |
