PARKER XV506P-4 Ball Valve 1/4 Inch Inline Brass
Item: AF6ZCXModel: XV506P-4Cross Ref: 20RH35
7 In Stock
Ships within 2 days via
10.00% off
€122.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | SAE |
| Connection Type - Side 2 | SAE |
| For Media | Steam, Water |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Length | 3.96" |
| Handle Material | Plated Steel |
| Handle Type | Lever |
| Included Mounting | Base Pad |
| Manufacturer Warranty | 1 yr. |
| Max. Pressure | 600 psi WOG |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temperature Range | 0°F to 350°F |
| Nominal Valve Size | 1/4" |
| Number Of Pieces | 2 |
| Overall Length | 2.2" |
| Pipe Size | 1/4" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Standards | Reach, Rohs Compliant |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +350°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 6.27 |
| Ship length (cm) | 12.73 |
| Ship width (cm) | 2.39 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Variants
| Product | Model | Handle | Overall Length | Handle Material | Coefficient Of Volume | Pipe Size | Port | Ball Finish | Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

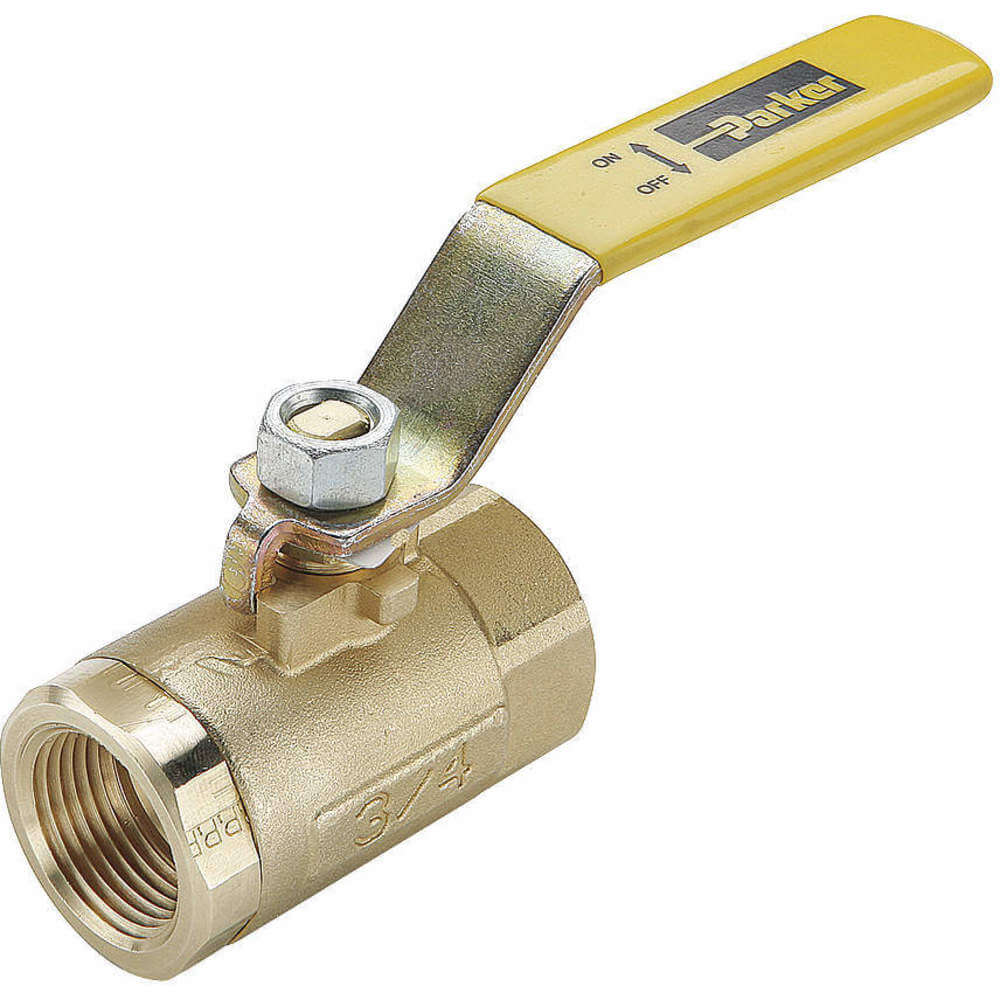

XV500P-12 | Lever | 4.16" | - | - | 3/4" | Standard | Chrome Plated | - | €56.37 | |
 |
XVP500P-4 | Locking Lever | 4.16" | - | 8.23 | 1/4" | Full | Chrome Plated | - | €18.58 | |
|
XVP500P-6 | Locking Lever | 4.16" | - | 8.23 | 3/8" | Full | Chrome Plated | - | €23.65 | |
|
XVP500P-8 | Locking Lever | 5" | - | - | 1/2" | Full | Chrome Plated | - | €24.92 | |
|
XVP500P-12 | Locking Lever | 5.25" | - | - | 3/4" | Standard | Chrome Plated | - | €37.96 | |
|
XVP500P-16 | Locking Lever | 4.16" | - | - | 1" | Standard | Chrome Plated | - | €96.83 | |
 |

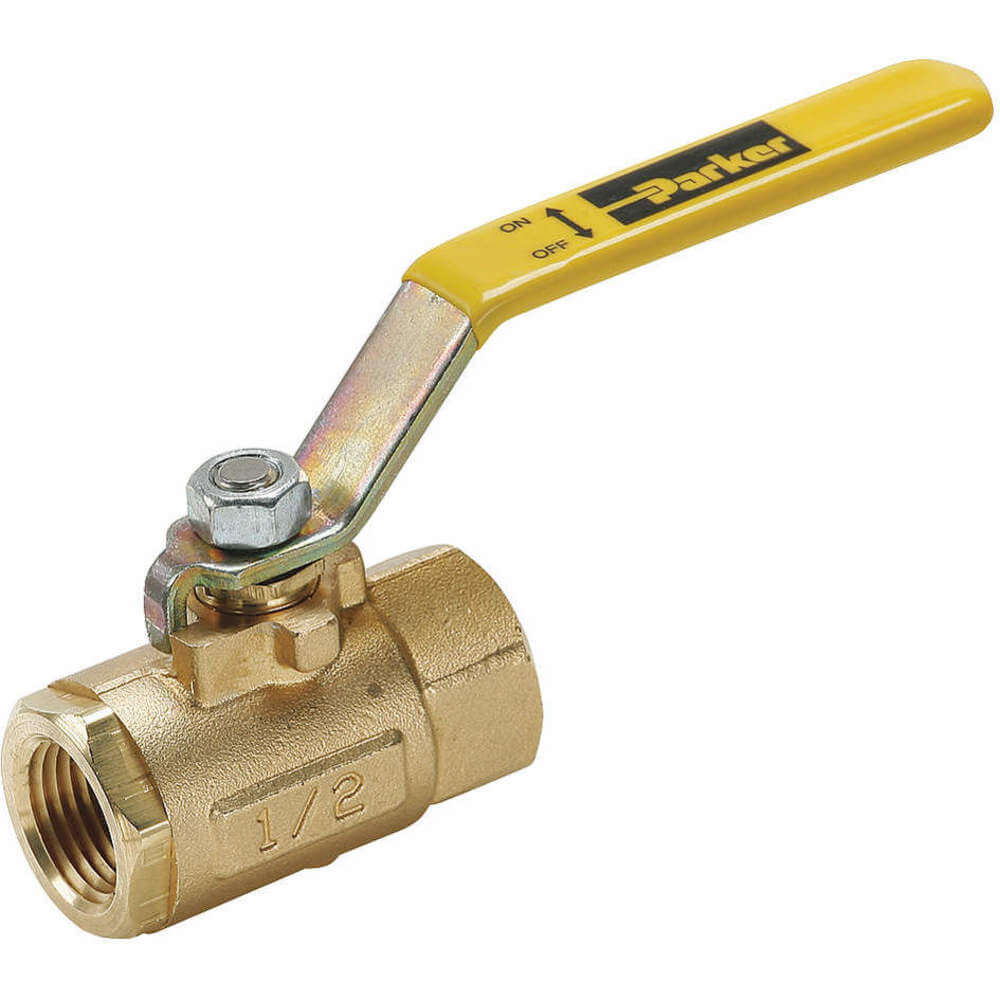

XVV500P-4 | Lever | 1.71" | - | 8.23 | 1/4" | Full | Chrome Plated | - | €26.34 |
