PARKER W169PLP-4-1 Fitting, 1/4 Inch Outside Diameter, Nickel Plated Brass
Item: BT6KZUModel: W169PLP-4-1Cross Ref: 800K79
7 In Stock
Ships within 2 days via
5.00% off
€15.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Automotive, Climate Control, End-Of-Arm Tooling, Factory Automation, Industrial, Inert Gases, Oil Lines, Packaging, Pneumatics, Robotic Welding, Robotics, Semi-Conductor, Textile, Vacuum Lines |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Color | Silver |
| Compatible Tube Hardness | 90 Shore A, 95 Shore A |
| Compatible Tube Material | Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi Rigid Nylon |
| Configuration Sub Type | Male Elbow Swivel 90° |
| Configuration Type | Tube To Male |
| Connection Type | BSPP x BSPT x NPTF x UNF |
| Elbow Angle | 90° |
| Finish | Nickel Plated |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Pipe Size | 1/16" |
| Fitting Side A Tube Outside Dia. | 1/4" |
| Fitting Side B Connection Type | MNPTF |
| Fitting Side B Pipe Size | 1/16" |
| Included Pre-applied Thread Sealant | Yes |
| Material | Brass |
| Material Grade | Grade C37700 |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 93 Deg C |
| Max. Operating Temp. | 200°F , 93°C |
| Min. Operating Temp. | -18°C , 0°F |
| Outside Dia. 1 | 1/4" |
| Overall Length | 27/32" |
| Release Ring Color | Black |
| Release Ring Material | Nitrile Rubber |
| Release Type | Button |
| Resistance Properties | Chemical Resistant |
| Ring Material | Stainless Steel |
| Seal Material | Nitrile |
| Series | PRESTOLOK METAL INCH Series |
| Specific Fitting Shape | 90° Elbow Swivel |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Thread 1 Size | 1/16" |
| Thread 1 Type | NPT |
| Thread Sealant Type | White Acrylic |
| Tube Outside Dia. | 1/4" |
| Vacuum | 28 in. hg |
| Vacuum Pressure | 28 Inch-Hg |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.14 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Fitting Side B Connection Type | Thread Sealant Type | Min. Operating Temp. | Compatible Tube Hardness | Fitting Thread Size | Max. Operating Temp. | Size | Equivalent To | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
W169PLP-2-1 | MNPTF | White Acrylic | 0°F | 90 Shore A, 95 Shore A | - | 200°F | - | - | €18.64 | |
 |

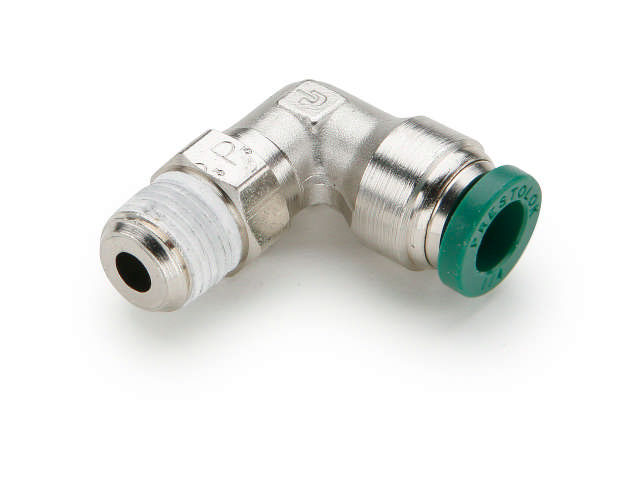

169PLP-2-0 | UNF | Acrylic | 0°F | 95 Shore A, 90 Shore A | - | 200°F | 1/8" Tube x 10"-32 UNF Male | - | €19.91 | |
|
169PLP-4-0 | UNF | Acrylic | 0°F | 95 Shore A, 90 Shore A | 10"-32 | 200°F | 1/4" Tube x 10"-32 UNF Male | 169PLP40 | €16.21 | |
 |
169PLP-5/32-0 | UNF | Acrylic | 0°F | 95 Shore A, 90 Shore A | - | 200°F | - | 169PLP5320 | €15.08 | |
 |

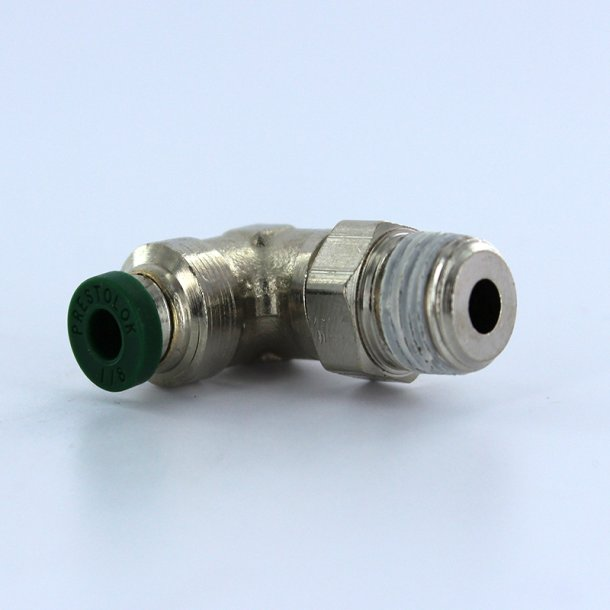

W169PLP-2-2 | MNPTF | White Acrylic | 0°F | 95 Shore A, 90 Shore A | 0.125 | - | 1/8" Tube x 1/8" NPTF Male | W169PLP22 | €10.21 | |
 |
W169PLP-2-4 | MNPTF | White Acrylic | 0°F | 95 Shore A, 90 Shore A | 1/4" | 200°F | - | - | €23.72 | |
 |

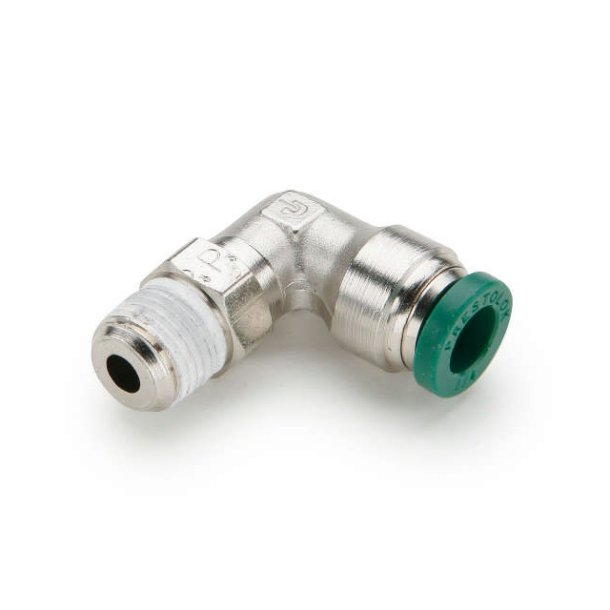

W169PLP-3-2 | MNPTF | White Acrylic | 0°F | 95 Shore A, 90 Shore A | 0.125 | 200°F | - | W169PLP32 | €12.11 |
