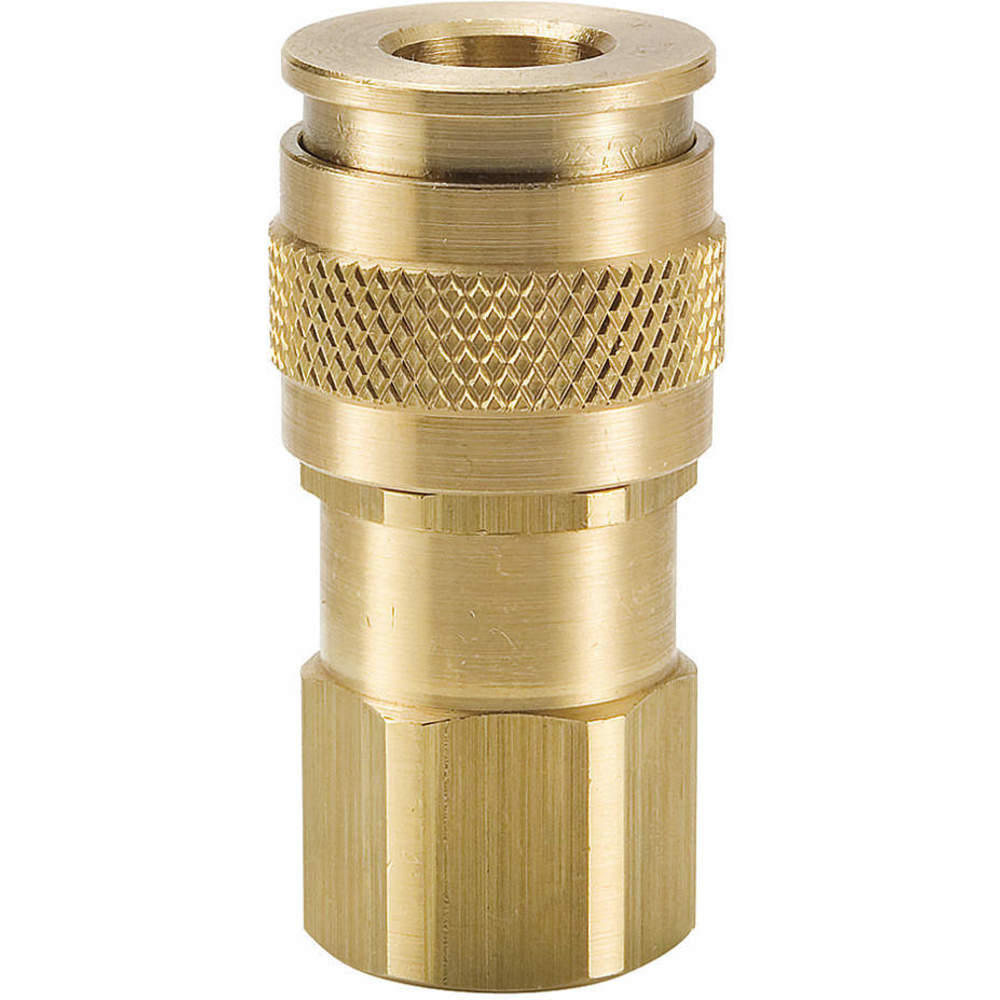

PARKER UC-251-4FP Quick Coupler, 1/4 Inch Body Size
Item: AC4WDKModel: UC-251-4FPCross Ref: 30N394
7 In Stock
Ships within 2 days via
10.00% off
€47.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Application | Pneumatic |
| Barbed | No |
| Body Material | Brass |
| Body Size | 1/4" |
| Configuration Type | Female NPTF |
| Connection Type | NPT |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Push-To-Connect |
| Fitting Type | FNPT |
| Hose Connection Type | FNPT |
| Hose Fitting Gender | Female |
| Hose Fitting Size | 1/4" |
| Includes Valve | Yes |
| Interchange Type | Universal |
| Lock Type | Locking Balls |
| Material | Brass |
| Max. Flow | 25 CFM |
| Max. Flow Rate | 707.92 LPM |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 1" |
| Max. Pressure | 150 psi |
| Max. Pressure Range | 100 psi to 249 psi |
| Max. Working Pressure @ 70 F | 150 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 2 1/16" |
| Pipe Size | 1/4" |
| Quick Connect Air Coupling Material | Brass |
| Quick Connect Air Coupling Seals | Nitrile |
| Quick Coupler Type | Pneumatic Push to Connect |
| Seal Material | Nitrile |
| Seals | Nitrile |
| Seals - Quick Connect Air Couplings | Nitrile |
| Series | UC Series |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread 1 Size | 1/4" |
| Thread Size | 1/4"-18 |
| Thread Type | Female |
| Valve Type | Tubular |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.5 |
| Ship length (cm) | 5.24 |
| Ship width (cm) | 2.03 |
| HS code | 8481801095 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Overall Length | Pipe Size | Connection Type | Material | Max. Pressure | Temp. Range | Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UC-251-6FP | 3/8"-18 | 2 3/16" | 3/8" | NPT | Brass | 150 psi | -40°F to +250°F | Female | €62.66 |
