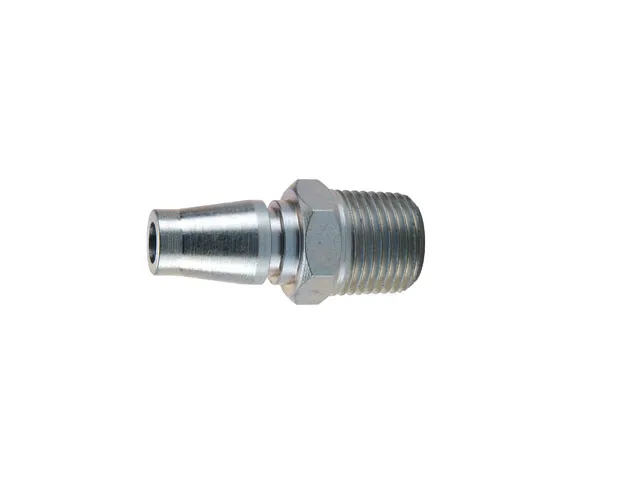

PARKER TL-254-4MP Nipple, 1/4 Inch Body Size, 1/4-18 Inch Thread Size, Steel
Item: BT7FUFModel: TL-254-4MPCross Ref: 55KW24
7 In Stock
Ships within 2 days via
10.00% off
€8.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Nipple |
| Application | Pneumatic |
| Barbed | No |
| Body Size | 1/4" |
| Configuration Type | Male NPTF |
| Connection Type | NPT |
| Coupler/nipple/shell | Nipple |
| Coupling Component | Plug |
| Coupling Locking Type | Push To Connect |
| Finish, Coating | Clear Trivalent Chromate Plated |
| Fitting Type | MNPT |
| Hose Fitting Gender | Male |
| Hose Fitting Size | 1/4" |
| Includes Valve | No |
| Interchange Type | Schrader Twist Lock |
| Length | 1 18/25" |
| Material | Brass |
| Material - Quick Connect Air Couplings | Steel |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 300 psi |
| Max. Pressure Range | 250 psi to 499 psi |
| Max. Working Pressure | 300 psi |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 1 23/32" |
| Plating | Zinc |
| Quick Coupler Type | Pneumatic Push to Connect |
| Seal Material | Nitrile |
| Series | TWIST LOCK Series |
| System Of Measurement | Inch |
| Thread 1 Size | 1/4" |
| Thread 1 Type | NPTF |
| Thread Size | 1/4"-18 |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.37 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Body Size | Hose Fitting Size | Thread Size | Coupling Component | Hose Fitting Gender | Connection Type | Coupling Locking Type | Max. Working Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TL-254-2MP | 1/4" | 1/8" | 1/8"-27 | Plug | Male | NPT | Push To Connect | 300 psi | €11.91 | |
| TL-504-12MP | 1/2" | 3/4" | - | Plug | Male | NPT | Push To Connect | 300 psi | €43.40 | |
| TL-504-4MP | 1/2" | 1/2" | 1/4"-18 | Plug | Male | NPT | Push To Connect | 300 psi | €19.11 | |
| TL-504-6MP | 1/2" | 3/8" | 3/8"-18 | Plug | Male | NPT | Push To Connect | 300 psi | €16.69 | |
| TL-504-8MP | 1/2" | 1/2" | 1/2"-14 | Plug | Male | NPT | Push To Connect | 300 psi | €28.27 |
