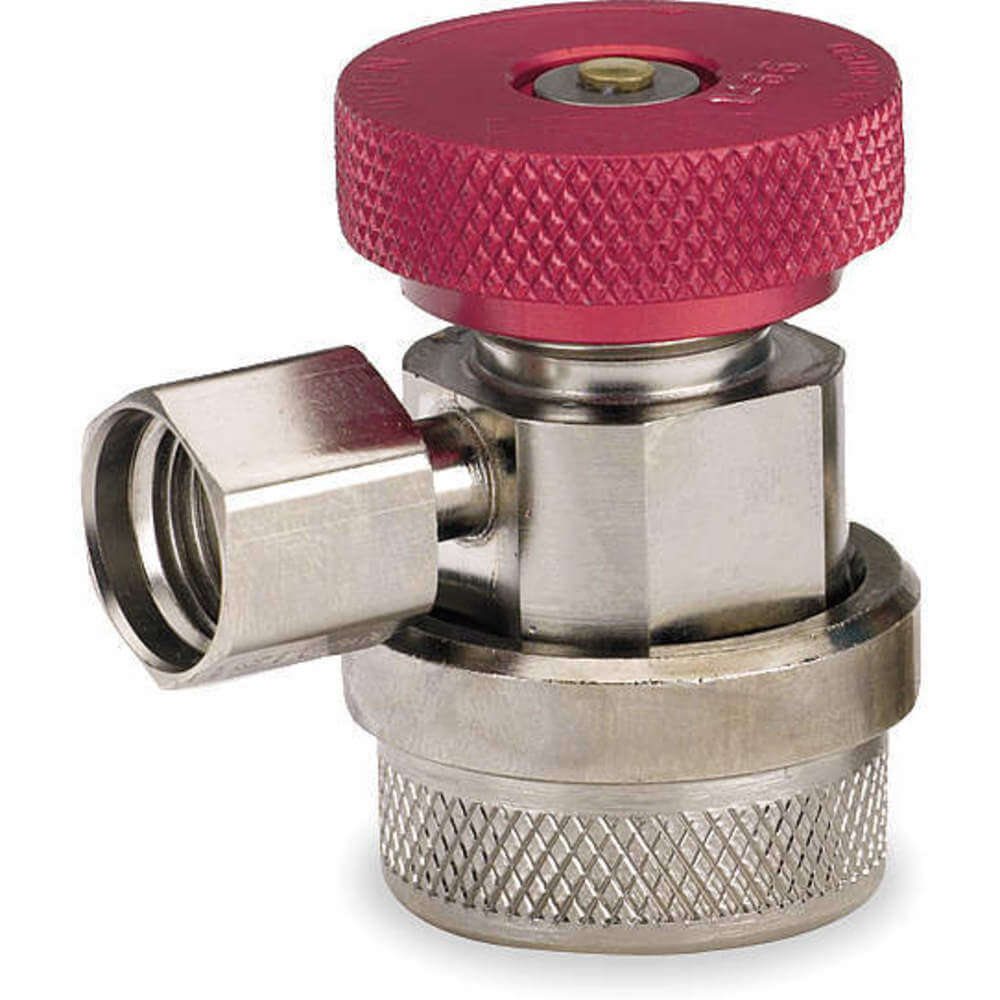

PARKER RC01C-003 Coupling, 500 Psig
Item: AB3QYBModel: RC01C-003Cross Ref: 1UXT5
7 In Stock
Ships within 2 days via
10.00% off
€124.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Coupling |
| Access Connection Gender | Female |
| Access Connection Size | 16 mm |
| Application | Automotive, Industrial |
| Body Material | Brass |
| Burst Pressure | 2500 psi |
| Connection Type | Side Port Female |
| Coupling Size | 16 mm, 14" |
| Features | Self- Sealing Disconnection Maintains Minimum Air Inclusion And Fluid Loss |
| For Refrigerant Type | R-134A |
| For Use With | Mobile R-134A, Air Conditioning Systems |
| Gender | Female |
| Hose Fitting Gender | Female |
| Includes | Safety Stop |
| Length | 1.87" |
| Line Connection Size | 14 mm |
| Locking Type | Sleeve |
| Max. Operating Pressure | 2500 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -40°C |
| Operating Pressure - Maximum | 500 psi |
| Operating Temperature - Minimum | -40°F |
| Outlet Connection | 16 mm |
| Outside Dia. | 1 5/16" |
| Overall Length | 1 11/16" |
| Overall Width | 1 5/16" |
| Prod. Description | Quick Coupler With Female Side Port And Red Control Knob |
| Product Type | Quick Coupler |
| Temp. Range | -40°F to +250°F |
| Type | High Side |
| Valve Type | Non Valved |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 4.76 |
| Ship width (cm) | 5.33 |
| HS code | 8481803090 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Type | Coupling Size | Type | Outlet Connection | Body Material | Locking Type | Valve Type | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

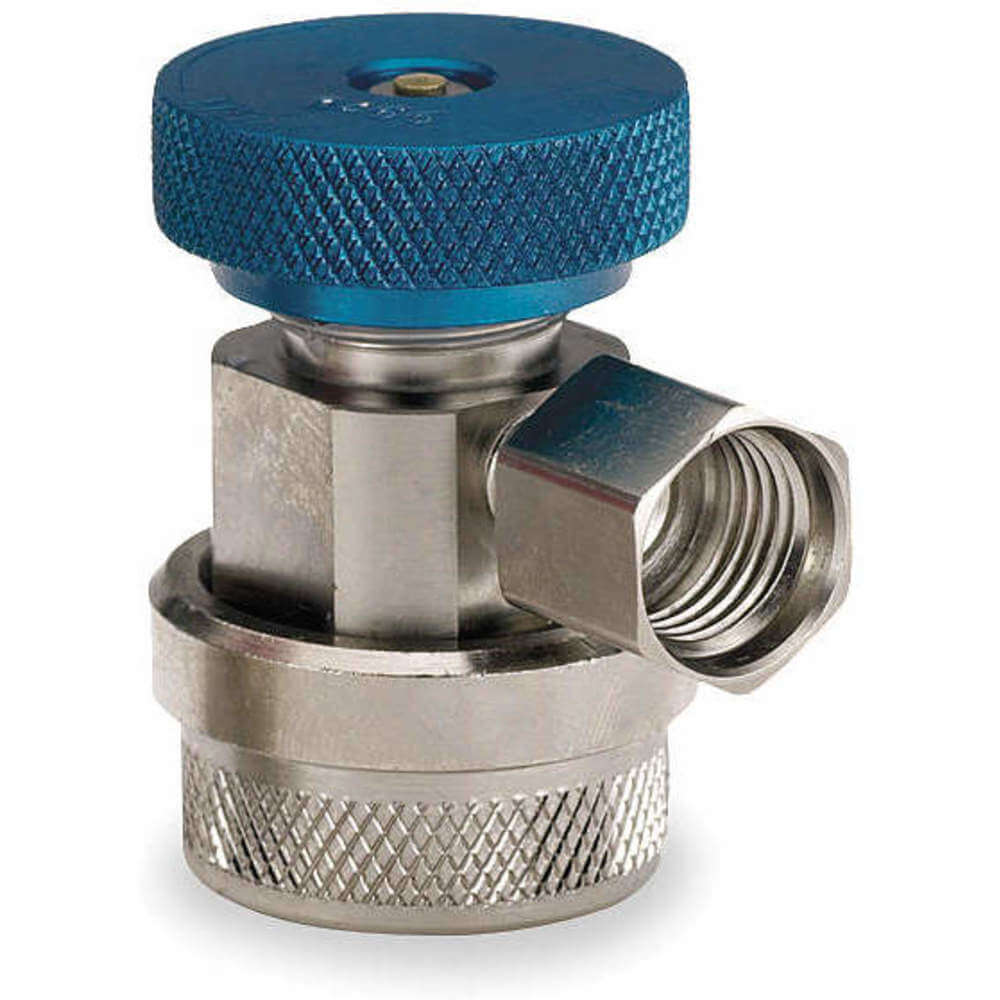

RC01C-002 | Side Port Female | 16 mm, 7/16" | Low Side | 13 mm | Brass | Sleeve | Non Valved | -40°F to +250°F | €133.69 | |
 |

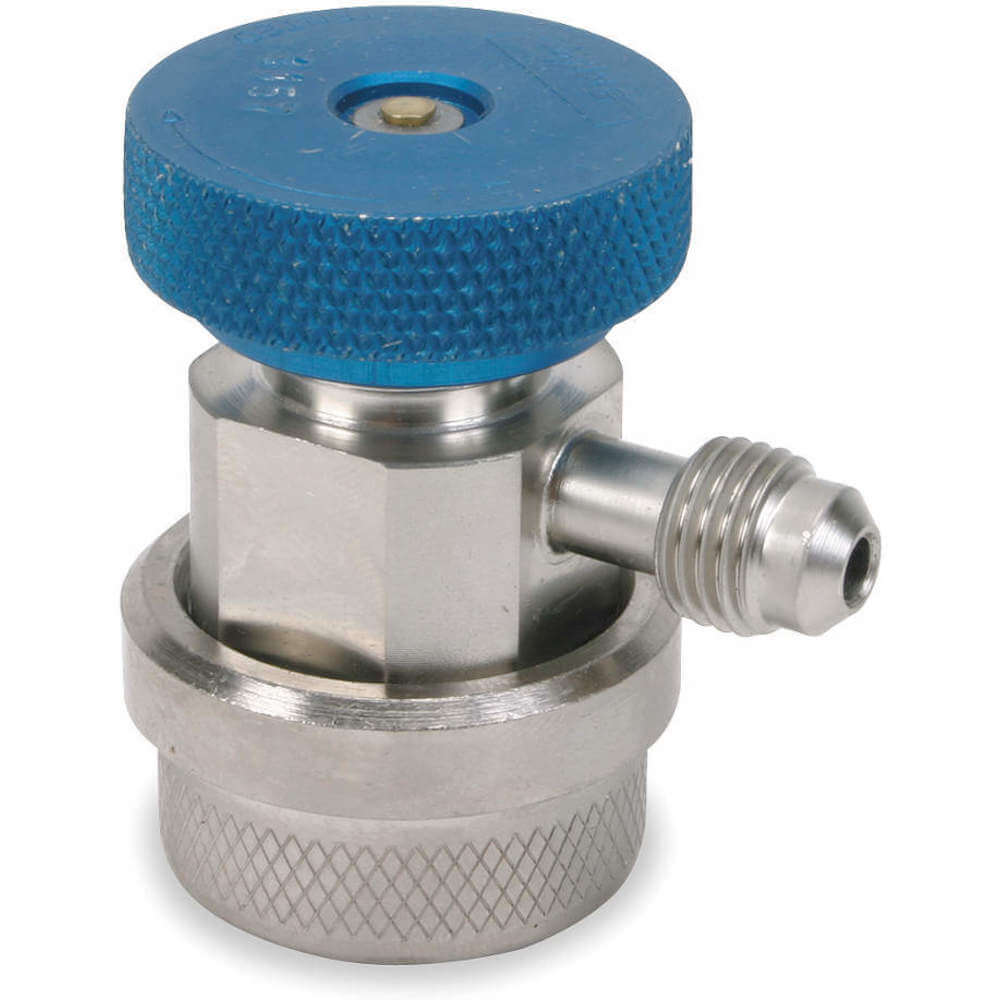

RC01C-011 | Side Port Male | 13 mm, 7/16" | Low Side | 13 mm | Brass | Sleeve | Non Valved | -40°F to +250°F | €113.62 | |
 |

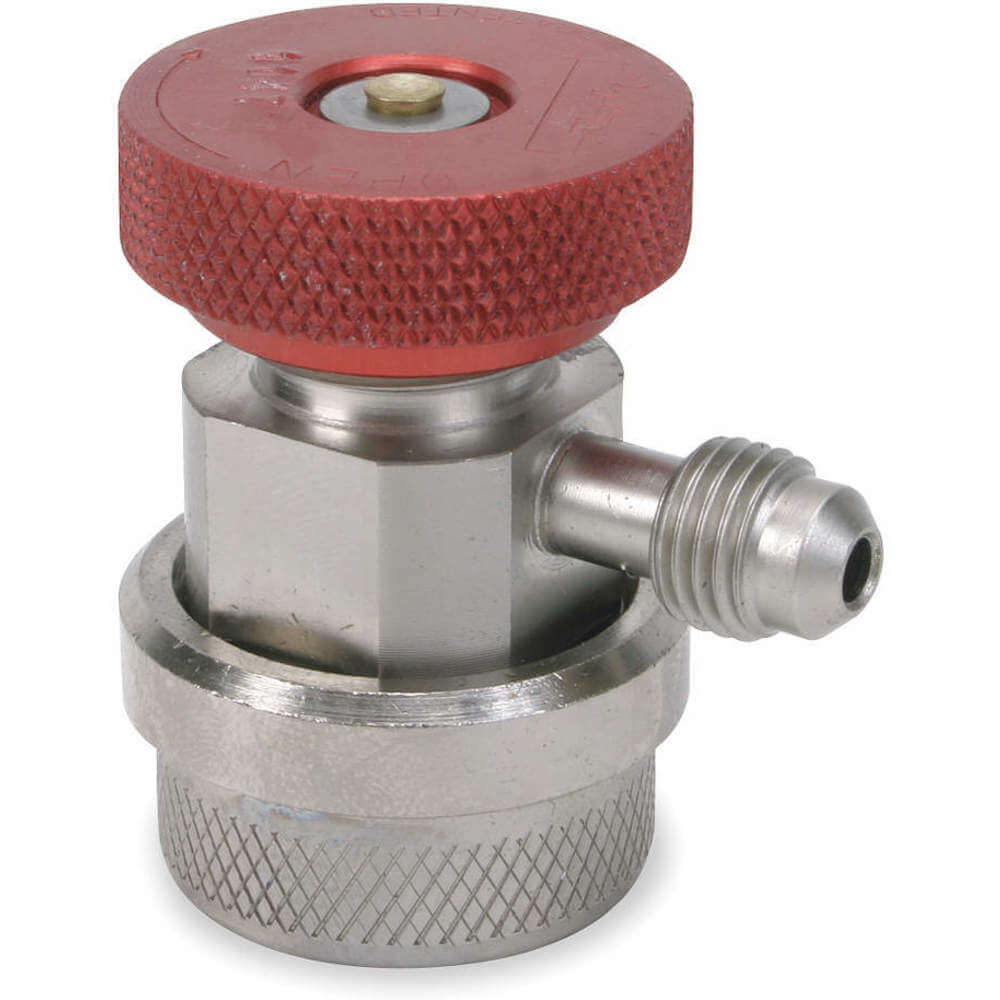

RC01C-012 | Side Port Male | 16 mm, 7/16" | High Side | 16 mm | Brass | Sleeve | Non Valved | -40°F to +250°F | €128.61 |
