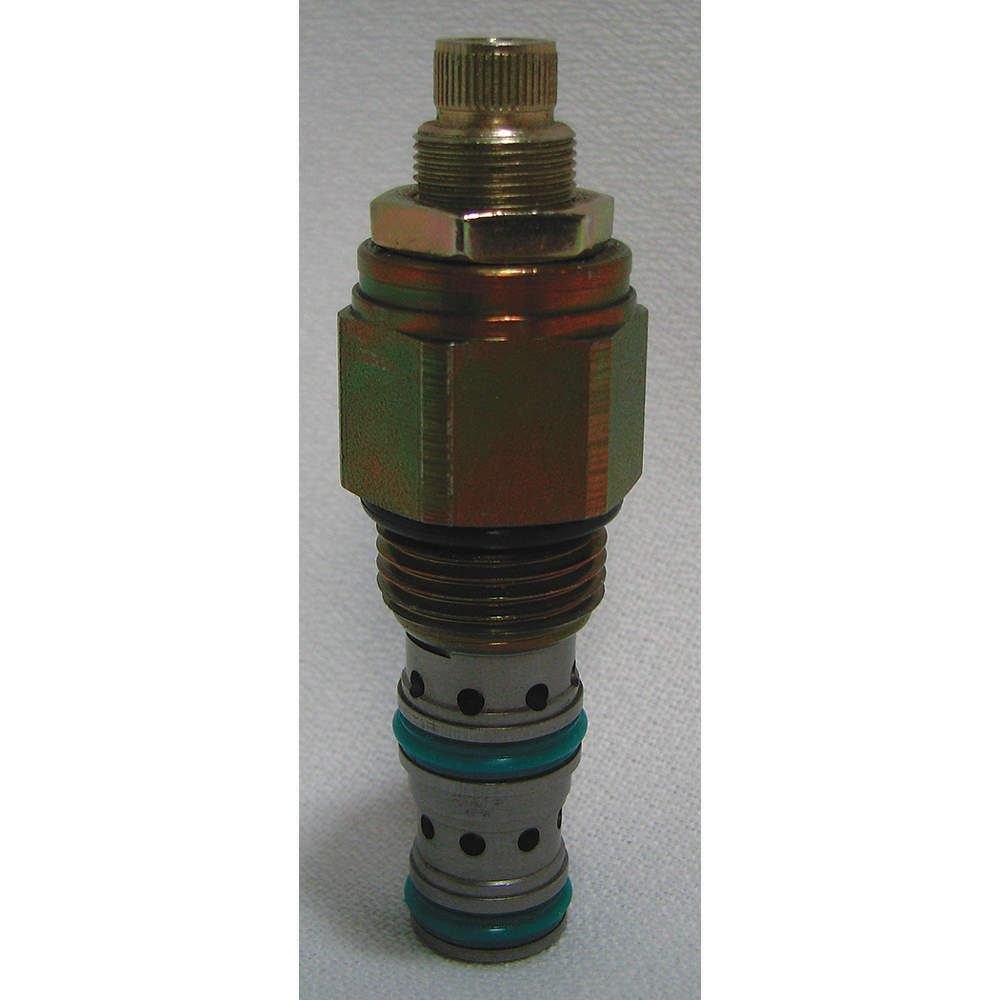

PARKER PRH081S50 Pilot Operated Pressure Reducing Relief Valve, 8 gpm
Item: AD7DBHModel: PRH081S50Cross Ref: 4DMN1
7 In Stock
Ships within 2 days via
10.00% off
€202.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relief Valve |
| Actuation Mechanism | Pressure |
| Adjustment Method | Screw |
| Application | Used To Reduce The Maximum Pressure In A Leg Of A System |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Cartridge Material | Steel |
| Cartridge Valve Item | Cartridge Valve |
| Common Cavity Configuration | 3 Way |
| Common Cavity Size | 08 |
| Drain Rate | 0.15 GPM |
| Filter Media | Not Applicable |
| Filter Rating | Not Applicable |
| Flow Rate | 8 GPM |
| Fluid Service | Mineral Oil, Synthetic Oil |
| For Media | Mineral Oil, Synthetic Oil |
| Includes Filter | Filter Not Included |
| Includes Seals | Seals Included |
| Installation Torque | 32-36 Lbs-ft |
| Max. Flow | 8 GPM |
| Max. Flow Gpm | 8 GPM |
| Max. Flow Gpm | 8 |
| Max. Inlet Pressure | 5500 psi |
| Max. Pressure | 5500 psi |
| Max. Tank Pressure (psi) | 5000 psi |
| Maximum Fluid Viscosity | 2000 SUS |
| Maximum Inlet Pressure | 5000 psi |
| Maximum Operating Temperature | 200°F |
| Maximum Pressure Setting | 5000 psi |
| Minimum Operating Temperature | -35°F |
| Mounting | Block Mounted |
| Number Of Positions | 2 |
| Number Of Ways | 2 |
| Operating Temp. | -45°C to +132°C |
| Operating Temp. Range | -45°C to +93.3°C |
| Overall Height | 1 11/25" |
| Overall Length | 3.09" |
| Overall Width | 7/8" |
| Port | None Cartridge Only |
| Port Connection Gender | Not Applicable |
| Port Connection Size | Not Applicable |
| Port Connection Type | Not Applicable |
| Port-to-port Length | Not Applicable |
| Pressure Range | 13.8 Bar to 345 Bar |
| Pressure Rating | 200 psi to 5000 psi |
| Rated Flow Rate | 8 Gpm |
| Seal Type | D Ring |
| Sensitivity | 1910 Per Turn Psi |
| Series | PRH081 Series |
| Valve Action | Normally Closed |
| Valve Body | B08 3 |
| Valve Cavity Size | C08 3 |
| Valve Control | Pressure Regulation |
| Valve Material | Steel |
| Valve Type | Pilot Operated |
| Way | 3 |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.22 |
| Ship length (cm) | 7.85 |
| Ship width (cm) | 3.66 |
| HS code | 8481801050 |
| Country of Origin | MX |
Product Details:
- Valve Cavity (C08-3)
Product Variants
| Model | Overall Length | Overall Height | Max. Inlet Pressure | Body Material | Pressure Range | Pressure Rating | Max. Pressure | Max. Flow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RV01A1N010 | - | - | - | - | - | - | - | - | €41.72 | |
| RV01A1N020 | - | - | - | - | - | - | - | - | €41.72 | |
| RV01A1N015 | - | - | - | - | - | - | - | - | €41.72 | |
| RV01A1N025 | - | - | - | - | - | - | - | - | €41.72 | |
| RV01A1N035 | - | - | - | - | - | - | - | - | €41.72 | |
| RV01A1N040 | - | - | - | - | - | - | - | - | €41.72 | |
| RV01A1N050 | - | - | - | - | - | - | - | - | €41.72 |
