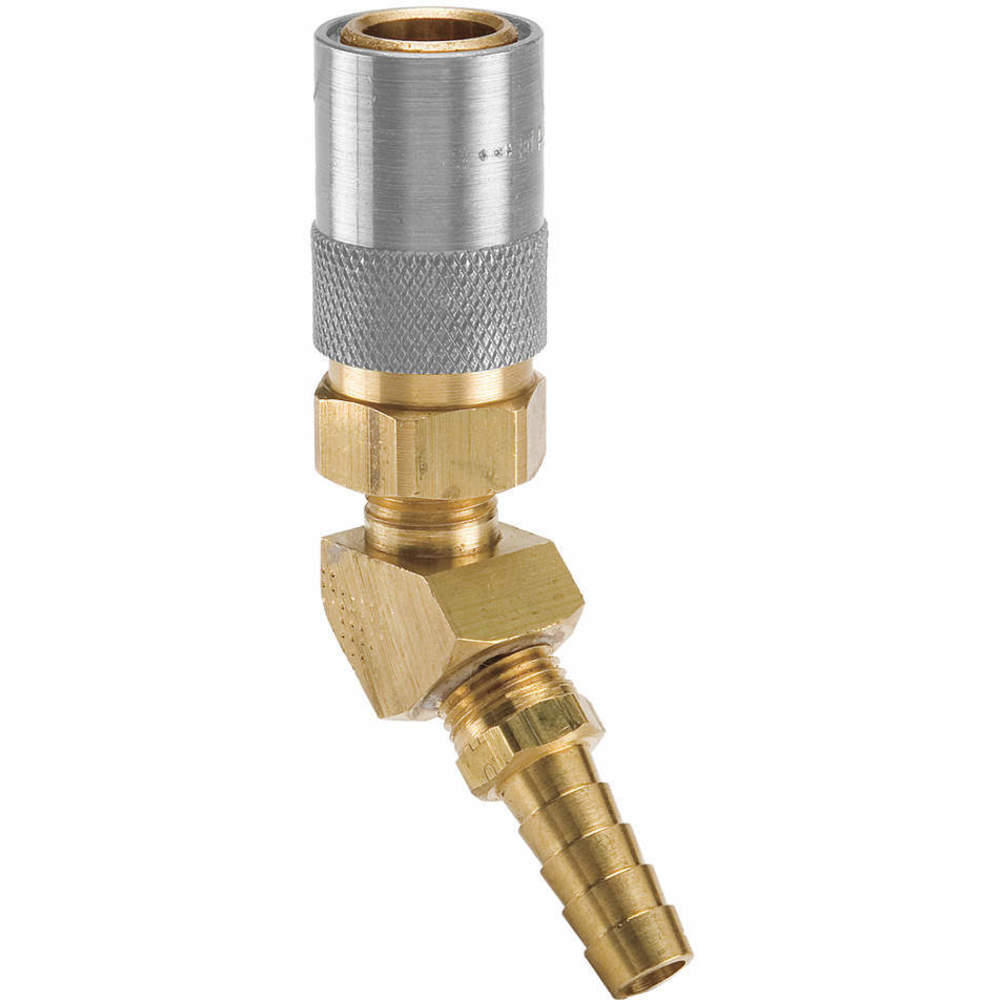

PARKER PC328 Quick Coupling, 3/8 Inch Size, 45 Deg, Mold Coolant, Hose barb
Item: AG6UBNModel: PC328Cross Ref: 48C209
7 In Stock
Ships within 2 days via
10.00% off
€48.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Bearing Material | Stainless Steel |
| Body Material | Brass |
| Body Size | 3/8" |
| Connection Type | Hose Barb |
| Coupler Body Material | Brass |
| Coupler Connection Type | Standard Hose Barb |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Coupling Size | 3/8" |
| Finish/coating | Plain |
| Fitting Type | Male Hose Barb |
| Flow Rate | 6 GPM |
| Gender | Male |
| Grade | Grade 440 |
| Hose Fitting Gender | Male |
| Hose Inside Dia. | 1/2" |
| Includes Bearing | Yes |
| Includes Shut Off | No |
| Includes Valve | No |
| Locking Mechanism | Ball |
| Locking Type | Locking Balls |
| Max. Flow Rate | 22.71 LPM |
| Max. Operating Pressure | 200 psi |
| Max. Operating Temp. | 400 Deg F |
| Max. Operating Temp. | 400°F |
| Max. Outside Dia. | 15/16" |
| Max. Pressure | 200 psi |
| Max. Working Pressure | 200 psi |
| Max. Working Pressure @ 70 F | 200 psi |
| Min. Operating Temp. | -20°F |
| Overall Length | 3 11/16" |
| Seal Material | Silicone |
| Seal Type | Interface |
| Sleeve Material | Brass |
| Style | Unvalved |
| Temp. Range | -20°F to +400°F |
| Valve Type | Non Valved |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.42 |
| Ship length (cm) | 9.37 |
| Ship width (cm) | 6.35 |
| HS code | 7419995050 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Type | Coupling Size | Valve Type | Body Size | Temp. Range | Sleeve Material | Seal Type | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PC204 | Hose Barb | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €34.99 | |
 |
PC204-BP | Push Lok Hose Barbed | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €53.36 | |
|
PC206 | Hose Barb | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €33.01 | |
 |
PC214 | Hose Barb | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €40.28 | |
|
PC216 | Hose Barb | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €42.26 | |
 |
PC216-BP | Push Lok Hose Barbed | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €53.27 | |
|
PC306 | Hose Barb | 3/8" | Non Valved | 3/8" | -20°F to +400°F | Brass | Interface | -20°F | €44.35 |
