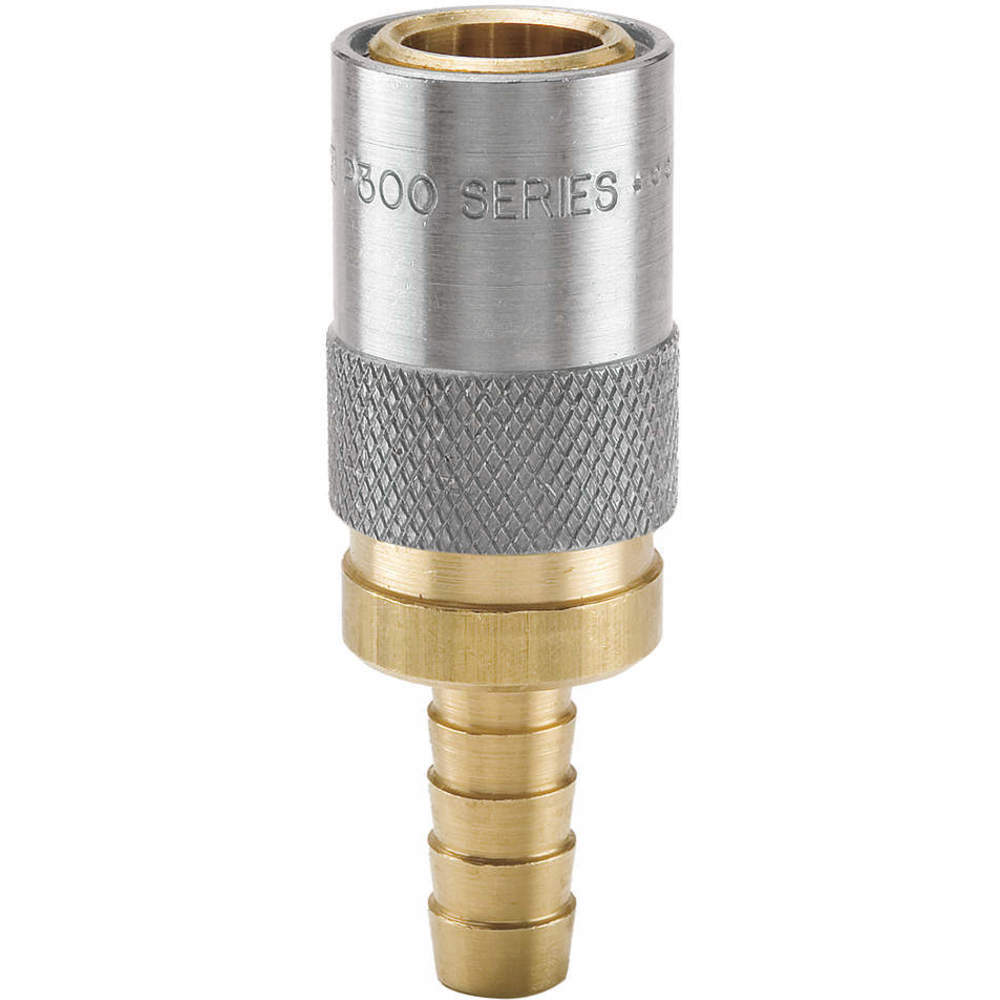

PARKER PC306V Quick Coupling, 3/8 Inch Size, Mold Coolant
Item: AG6UDJModel: PC306VCross Ref: 48C255
7 In Stock
Ships within 2 days via
5.00% off
€72.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Bearing Material | Stainless Steel |
| Body Material | Brass |
| Body Size | 3/8" |
| Connection Type | Hose Barb |
| Coupler Body Material | Brass |
| Coupler Connection Type | Standard Hose Barb |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Coupling Size | 3/8" |
| Finish, Coating | Plain |
| Fitting Type | Male Hose Barb |
| Flow Rate | 6 GPM |
| Gender | Male |
| Grade | Grade 440 |
| Hose Fitting Gender | Male |
| Hose Inside Dia. | 3/8" |
| Included Bearing | Yes |
| Included Shut Off | Yes |
| Included Valve | Yes |
| Locking Mechanism | Ball |
| Locking Type | Locking Balls |
| Max. Flow Rate | 22.71 LPM |
| Max. Operating Pressure | 200 psi |
| Max. Operating Temp. | 400 Deg F |
| Max. Operating Temp. | 400°F |
| Max. Outside Dia. | 1" |
| Max. Pressure | 200 psi |
| Max. Working Pressure | 200 psi |
| Max. Working Pressure @ 70f | 200 psi |
| Min. Operating Temp. | -15°F |
| Overall Length | 3 3/16" |
| Plating | Zinc On Sleeve |
| Quick Coupler Type | Hydraulic Coupler Body |
| Seal Material | Fluorocarbon, Silicone |
| Seal Type | Tubular Valve |
| Shut Off | Poppet Shut Off |
| Sleeve Material | Steel |
| Style | Poppet |
| Temp. | -15°F to +400°F |
| Valve Type | Poppet |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.58 |
| Ship length (cm) | 8.06 |
| Ship width (cm) | 3.3 |
| HS code | 8481801095 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Size | Max. Pressure | Max. Outside Dia. | Temp. | Coupling Size | Max. Flow Rate | Sleeve Material | Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PC204 | 1/4" | 200 psi | 5/8" | -20°F to +400°F | 1/4" | 11.36 LPM | Brass | 3 GPM | €38.95 | |
 |
PC204-BP | 1/4" | 200 psi | 5/8" | -20°F to +400°F | 1/4" | 11.36 LPM | Brass | 3 GPM | €57.32 | |
|
PC206 | 1/4" | 200 psi | 5/8" | -20°F to +400°F | 1/4" | 11.36 LPM | Brass | 3 GPM | €36.74 | |
 |
PC214 | 1/4" | 200 psi | 9/16" | -20°F to +400°F | 1/4" | 11.36 LPM | Brass | 3 GPM | €44.36 | |
|
PC216 | 1/4" | 200 psi | 9/16" | -20°F to +400°F | 1/4" | 11.36 LPM | Brass | 3 GPM | €46.52 | |
 |
PC216-BP | 1/4" | 200 psi | 9/16" | -20°F to +400°F | 1/4" | 11.36 LPM | Brass | 3 GPM | €52.18 | |
|
PC306 | 3/8" | 200 psi | 31/32" | -20°F to +400°F | 3/8" | 22.71 LPM | Brass | 6 GPM | €43.43 |
